Mfr Part Number: KSM26RD4/32HDI
-
Type: DDR4 DIMM
-
Capacity: 32 GB
-
Speed: PC4-21300 2666MHz
-
Size & Bit: 4G x 72
-
Pins: 288-pin
-
ECC: Yes
-
Registered: Yes
- Dual Rank x 4
- CL19, 1.2V

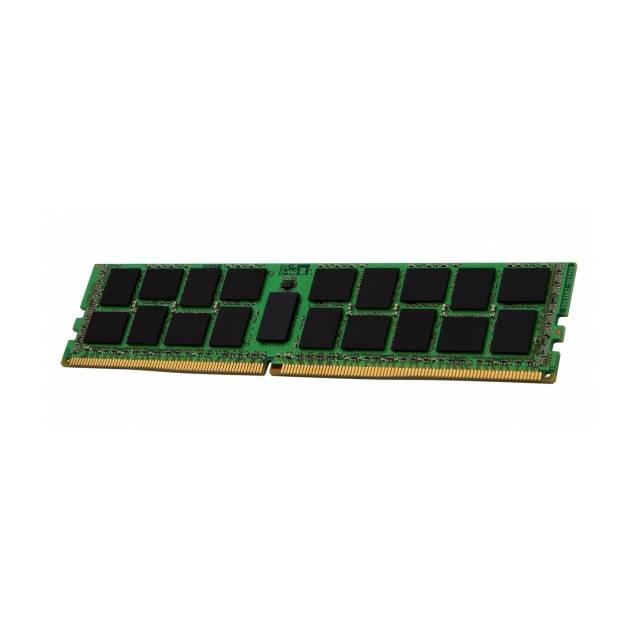

DESCRIPTION Kingston's KSM26RD4/32HDI is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx4, ECC, memory module, based on thirty-six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
FEATURES • Power Supply: VDD = 1.2V • VDDQ = 1.2V • VPP = 2.5V • VDDSPD = 2.41V to 2.75V • Functionality and operations comply with the DDR4 SDRAM datasheet • 16 internal banks • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available •
Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 • Bi-Directional Differential Data Strobe • 8 bit pre-fetch • Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) • Supports ECC error correction and detection • On-Die Termination (ODT) • Temperature sensor with integrated SPD • This product is in compliance with the RoHS directive. • Per DRAM Addressability is supported • Internal Vref DQ level generation is available • Write CRC is supported at all speed grades • CA parity (Command/Address Parity) mode is supported
Product Type: RAM
Module CAS Latency: CL19
Device Supported: Server
Error Checking: ECC/Parity Number of
Pins: 288-pin
Signal Processing: Registered
Product Type: RAM
Module CAS Latency: CL19
Device Supported: Server
Error Checking: ECC/Parity Manufacturer
Part Number: KSM26RD4/32HDI Number of
Pins: 288-pin
Signal Processing: Registered
Limited Warranty: Lifetime
Form Factor: DIMM
Memory Speed: 2666 MHz
Form Factor: DIMM
Length: 5.3
Manufacturer: Kingston
Technology Company Memory Speed: 2666 MHz
Product Name: 32GB DDR4 SDRAM
Memory Module Memory Size: 32 GB
Brand Name: Kingston
Memory Size: 32 GB
Brand Name: Kingston
Memory Technology: DDR4 SDRAM
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Country of Origin: Taiwan
Memory Standard: DDR4-2666/PC4-21300
Width: 1.2
Memory Voltage: 1.20 V
Environmentally Friendly: Yes
Environmental Certification: Taiwan RoHS
Environmental Certification: PFOS
Environmental Certification: ECHA
Environmental Certification: REACH
Environmental Certification: WEEE
Environmental Certification: RoHS 2
Environmental Certification: RoHS
Memory Voltage: 1.20 V
