Intel Rs3Uc080 Raid Controller Pci Express X8 3.0 12 Gbit/S

Description :

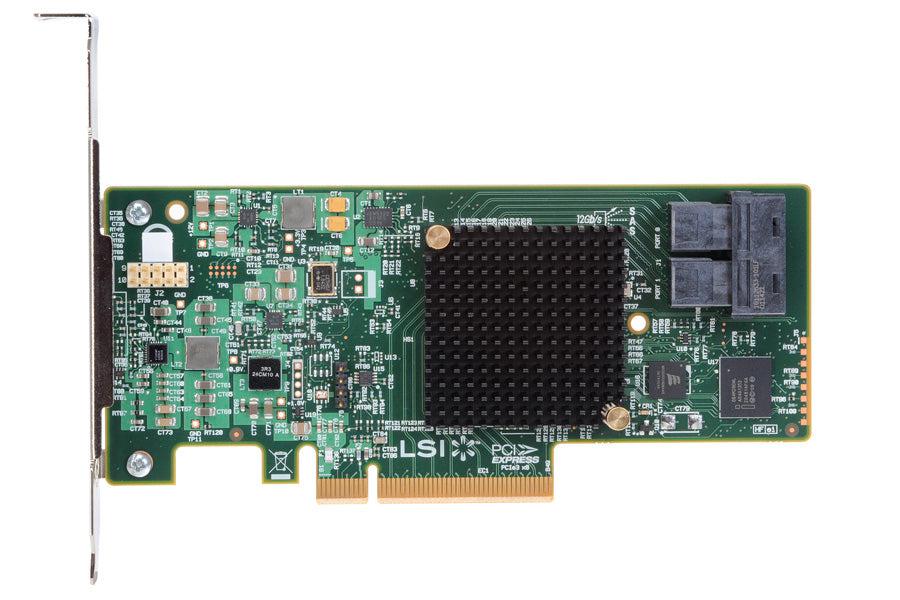

RAID Controller RS3UC080, Single

Intel RS3UC080. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0,1,1E,10, Data transfer rate: 12 Gbit/s, Form factor: Low Profile MD2 Card. Processor model: LSISAS3008. Packaging content: One RAID adapter with full and low proile brackets. PCI Card form factor: Half-height (low-profile), Other features: Supports up to two RAID 0,1,1E and 10 arrays and up to 1024 non-RAID volumes, Market segment: Server

Entry-level low cost 8 Internal Ports with 12G SAS-3 with mirroring, striping, JBOD.

- Up to two internal mini-SAS HD SFF8643 SAS/SATA connectors for connectivity inside the server.
- x8 PCI Express* Generation 3 interface for fast communication with the server board.
- LSI* SAS3008 IOC controller providing SAS 3.0 technology including 12Gb/s data transfer and compatibility with SAS or SATA drives.
- Blinking green heartbeat LED to indicate the card is ready and capable for general activity.

- Essential performance and scalability: Supplies PCI Express* Gen 3 architecture with over 1 million IOPs; employs SAS/JBOD connectivity with support of up to 244 physical devices.
- Internal connectivity: Eight internal ports allow for a RAID array within a system.
- Cost effective data protection: Provides low-cost RAID 0, 1, and 1E for entry-level server and workstation environments where high-performance and reliable data protection are required.
- SAS or SATA Storage: Connect SAS or SATA devices within the array. Use SAS drives for speed, reliability and scalability; use high-capacity SATA drives for budget-friendly storage.
