Industrial Ethernet 5Port Sw,-22 To+176 Degf Galvanic Isolation

SKU: SW-505

Regular price $71.91
Regular price Sale price $71.91
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

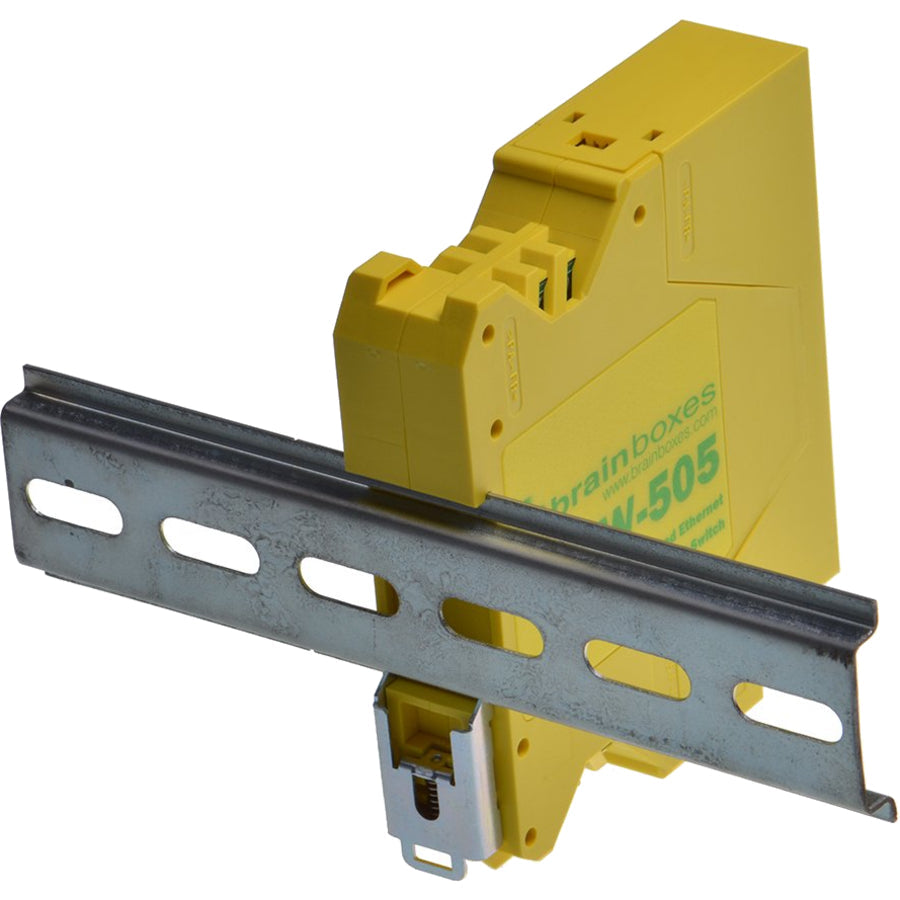

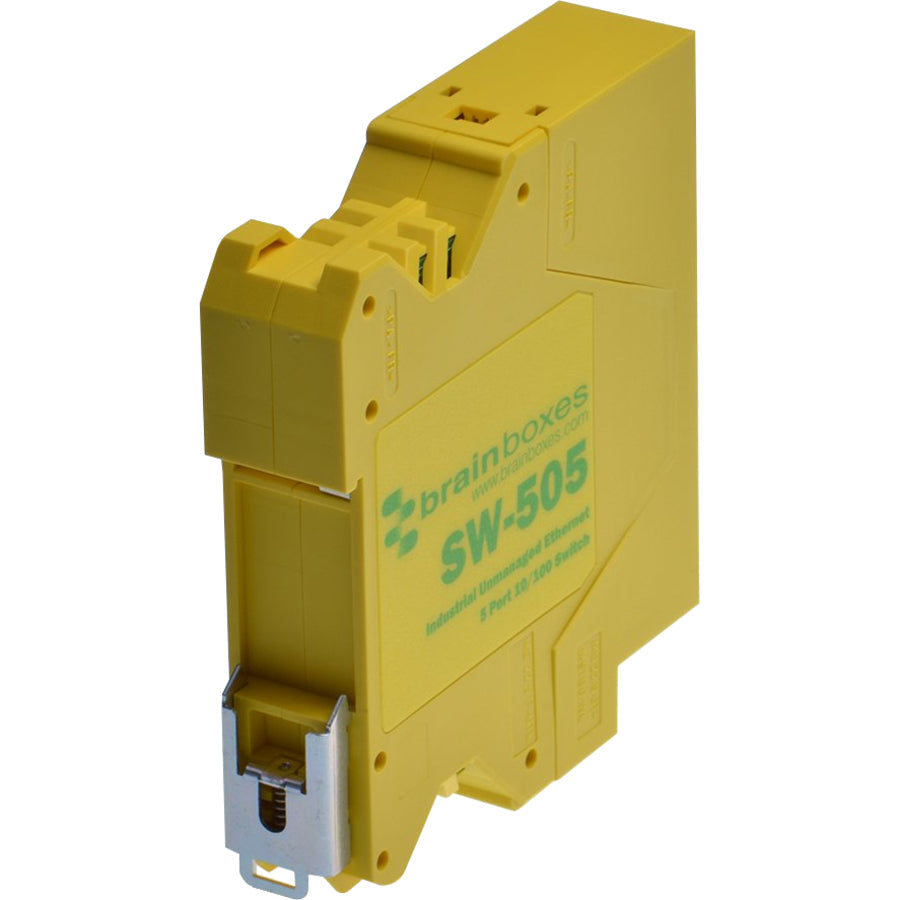

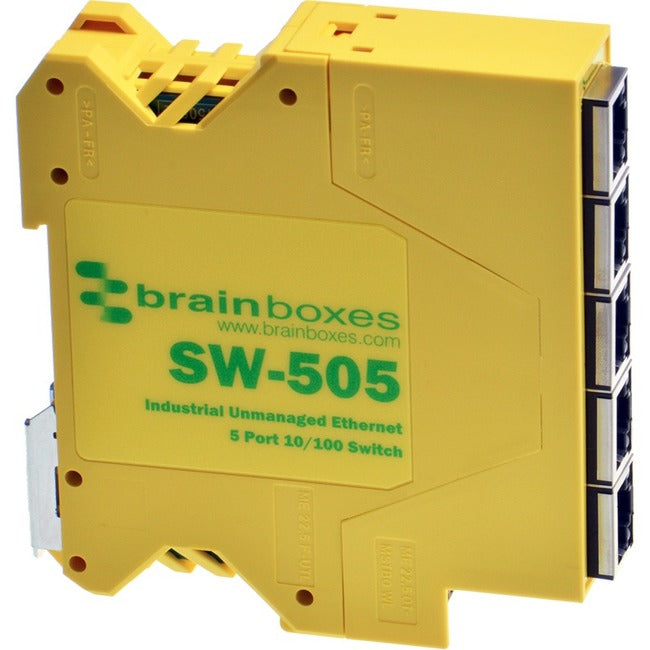

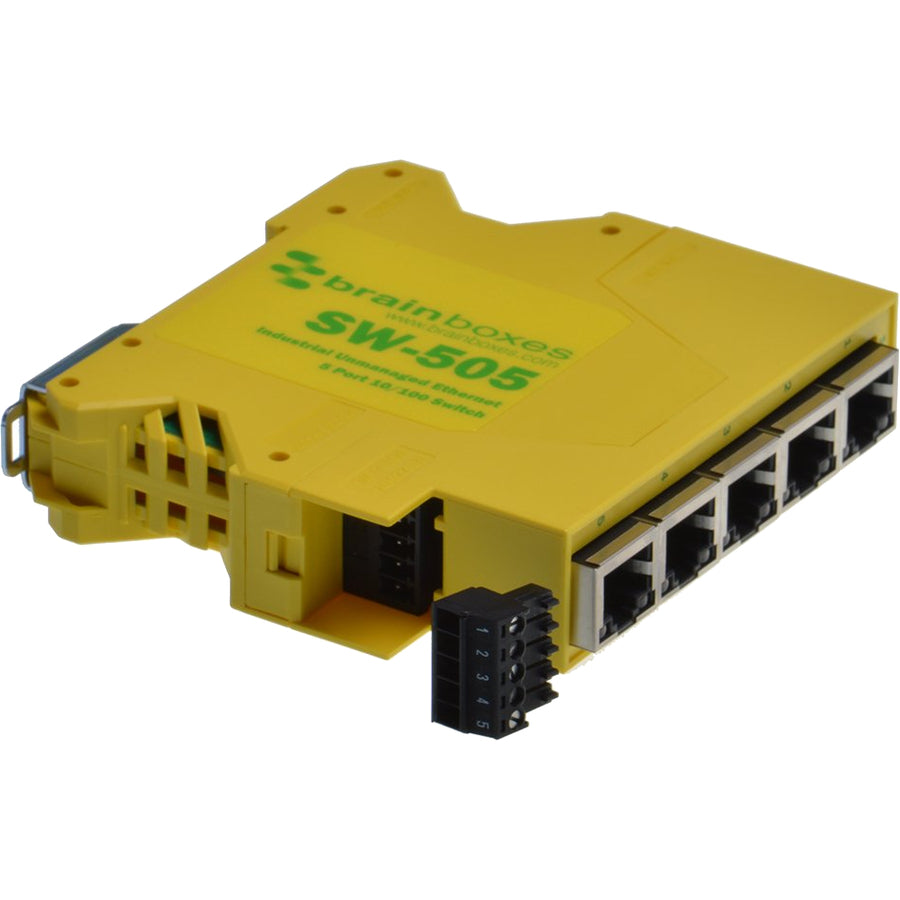

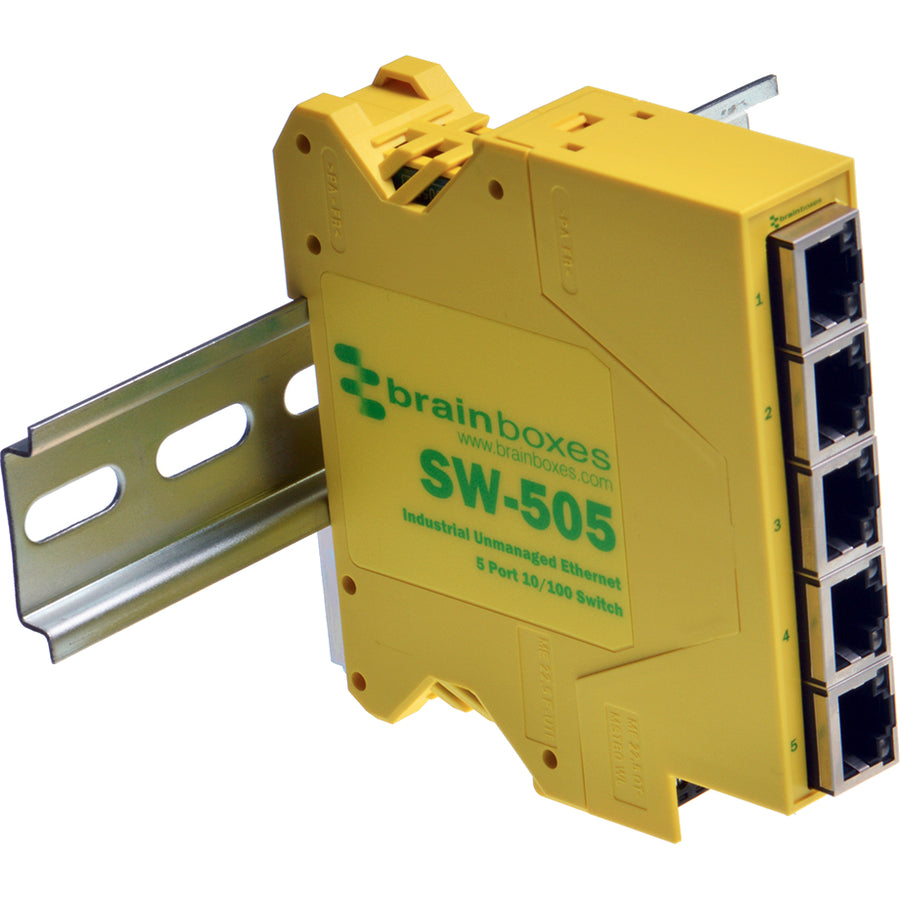

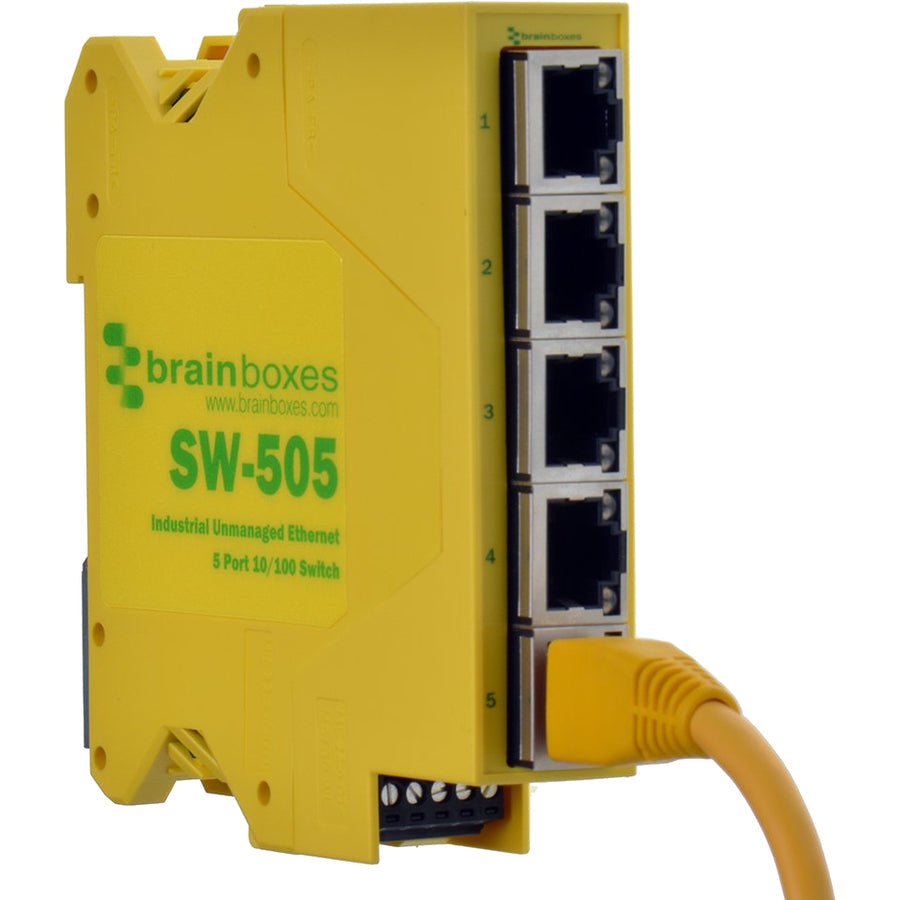

          Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable

          Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

          More from the Manufacturer

          • Small Footprint Case, only 22.5mm wide, 94mm deep

          • Redundant dual power inputs: +5V to +30V DC

          • Industrial operating temp range -40°C to +80°C / -40°F to +176°F

          • 5 Port Compact Ethernet Switch

          • Integrated DIN Rail Mount with grounding

          Product Type: Ethernet Switch
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Taa Compliant: Yes
          Country Of Origin: United Kingdom
          Brand Name: Brainboxes
          Form Factor: Rail-mountable
          Manufacturer: Brainboxes Limited
          Product Model: SW-505
          Product Name: Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
          Manufacturer Part Number: SW-505
          Manufacturer Website Address:
          Package Contents:

          • Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
          • Quick Start Guide

          Limited Warranty: Lifetime
          Weight (Approximate): 4.06 oz
