Transition Networks SISTG1014-211-LRT-B Transceiver/Media Converter SISTG1040-211-LRT-B

Description :

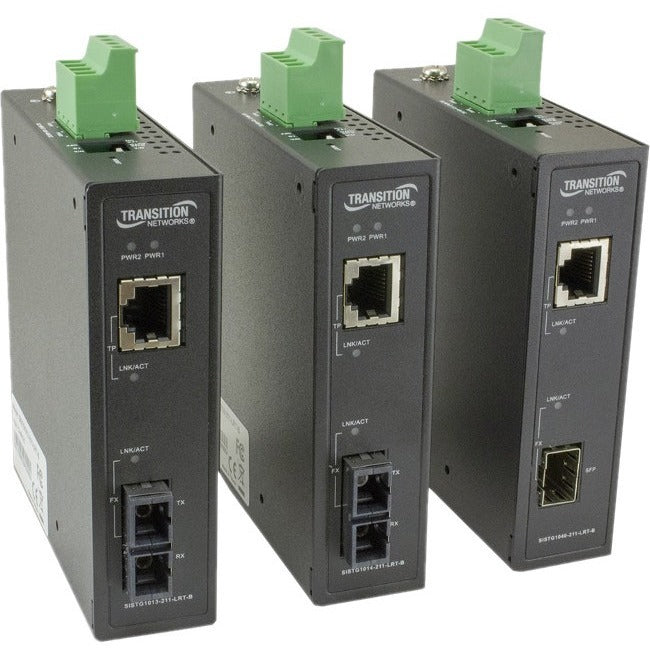

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.

It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.

• Auto-Negotiation


• Auto-MDI/MDIX


• Link Pass Through


• Extended operating temperature (-40°C to 75°C)


• Dual, Redundant, 12-48 VDC Power Inputs


• Reverse Polarity Power Input Protection


• Overload Current Protection


• DIN Rail Mounting Brackets Included


• Class 1, Div 2 Certified


• Jumbo Frame: 9K bytes

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Product Series: SISTG10xx-211-LRT-B
Brand Name: Transition Networks
Form Factor: Rail-mountable
Manufacturer: Transition Networks, Inc
Product Model: SISTG1014-211-LRT-B
Product Name: Unmanaged Hardened Gigabit Ethernet Media Converter
Manufacturer Part Number: SISTG1040-211-LRT-B
Manufacturer Website Address: http://www.transition.com
Package Contents:

• Unmanaged Hardened Gigabit Ethernet Media Converter
• DIN Rail Mounting Brackets
