ASUS - MOTHERBOARDS

Hyper M.2X16 Pcie 4.0X4 Ex Card,4 Nvmem.2 Up To256Gbps Amd3Rdryzen

SKU: HYPERM.2X16GEN4 CARD

Regular price $76.32
Regular price Sale price $76.32
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

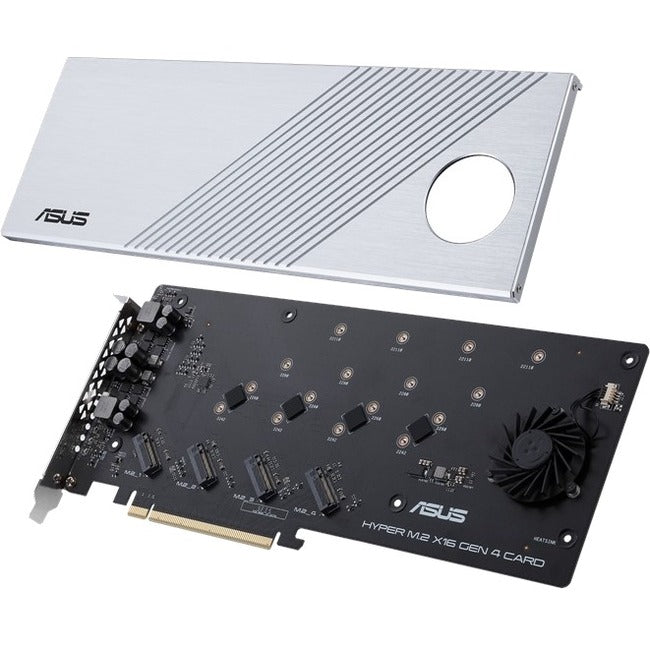

          Asus M.2 to PCI Express Adapter

          ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel® platform RAID-on-CPU functions

          • Two-phase power solution with up to 14-watt output supports the latest NVMe drives
          • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
          • Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
          • Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
          • Also support other vendors' motherboards via PCIe bifurcation in BIOS setting

          RAID on CPU

          The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.

          One card,
          8X the bandwidth

          The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.

          Design for unthrottled transfer speed

          The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots - supporting both PCIe 3.0 and 4.0 - that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.


          • Supports 4 NVMe M.2 (2242/2260/2280/22110) up to 256 Gbps in one card by utilizing PCIe 4.0 bandwidth

          • PCIE 4.0 X16 Interface with server-grade (low loss) PCB material, compatible with PCI express x8 and x16 slots

          • Supports 14W power consumption SSDs for next gen latest drives

          • Stylish heatsink and integrated blower style fan prevent M.2 throttling

          Product Type: M.2 to PCI Express Adapter
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Brand Name: Asus
          Length: 10.6"
          Manufacturer: ASUS Computer International
          Product Name: M.2 to PCI Express Adapter
          Manufacturer Part Number: HYPER M.2 X16 GEN 4 CARD
          Manufacturer Website Address: http://usa.asus.com
          Limited Warranty: 1 Year
