Description
Specifications
Description :

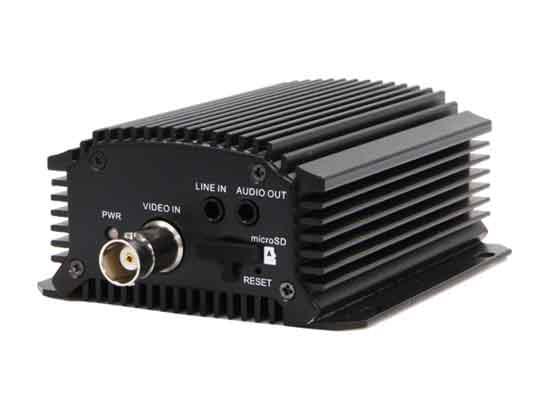

1-Channel, BNC, 10 / 100 Mbps LAN, Alarm In, Alarm Out, PoEHikvision Digital Technology DS-6701HWI. Maximum video resolution: WD1, Maximum frame rate: 30 fps, Video compression formats: H.264,M-JPEG,MPEG2,MPEG4. Supported network protocols: IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3(MIB-II), DNS,..., Copper ethernet cabling technology: 100BASE-TX,10BASE-T. Power consumption (typical): 6 W, Power requirements: 12 VDC / PoE. Dimensions (WxDxH): 80 x 39 x 90 mm, Weight: 500 g
Features:
- H.264/MPEG4/MPEG2/MJPEG encoding standards supported
- Up to WD1 real-time encoding
- One PoE network interface
- Connectable with network HDD in NAS, IPSAN mode
- Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
- Multiple PTZ protocols
Specifications :
General Information
Manufacturer | Hikvision |
---|---|
Manufacturer Part Number | DS-6701HWI |
Manufacturer Website Address | http://www.hikvision.com |
Brand Name | Hikvision |
Product Series | DS-6700 |
Product Model | DS-6701HWI |
Product Name | DS-6701HWI Encoder |
Product Type | Video Surveillance Station |
UPC | 6954273606176 |
Height | 3.5" |
---|---|
Width | 3.1" |
Depth | 1.5" |
Weight (Approximate) | 1.10 lb |
