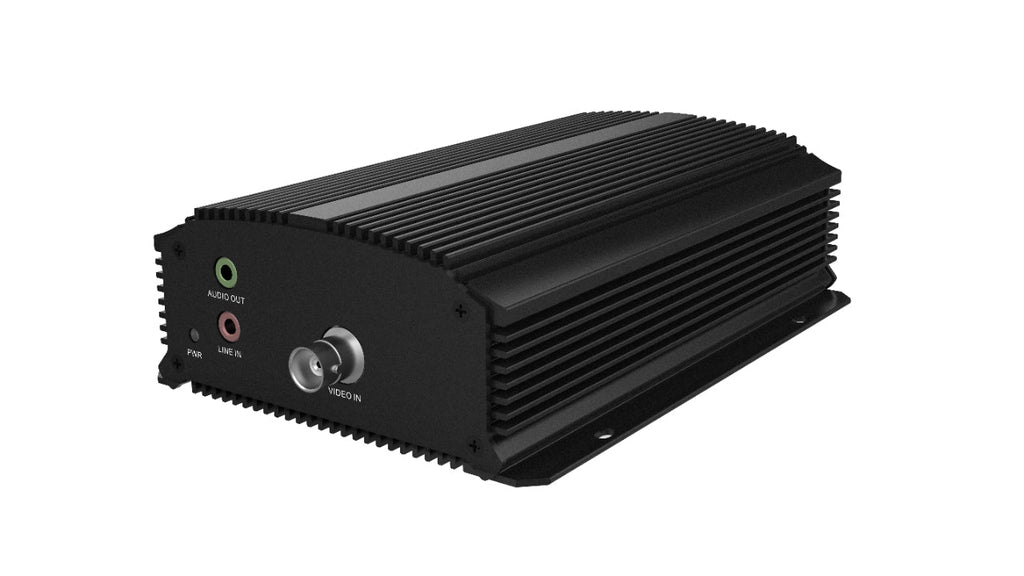

Hikvision Digital Technology DS-6701HUHI video servers/encoder 1920 x 1080 pixels 30 fps

Description :

1-ch, 1080p Max, PAL/NTSC, RJ-45 10M/100M, 162.5 x 114 x 47.5 mm, 1.5 kg

Hikvision Digital Technology DS-6701HUHI. Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 30 fps, Video compression formats: H.264,H.264+,H.265,H.265+,M-JPEG. Network bandwidth: 100 Mbit/s, Supported network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS, ONVIF profile S. Power consumption (typical): 15 W. Width: 162.5 mm, Depth: 114 mm, Height: 47.5 mm. Compatible memory cards: MicroSD (TransFlash)

Video Input and Transmission
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 5 MP HDTVI video input and live view
- Long distance transmission over UTP and coaxial cable

Compression and Recording
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264/MJPEG for the sub-stream of analog cameras
- Full channel recording at up to 5 MP resolution

Storage and Playback
- 1 Micro SD card slot (8G up to 128 GB capacity)
- Searching and playing back record files by camera number, recording type, start time, end time, etc.

Smart Function
- Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection

Network & Ethernet Access
- DDNS (Dynamic Domain Name System) for easy network management
- 1 RJ45 10M/100M self-adaptive Ethernet interface
