- Intel Z690
- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- Comprehensive Thermal Design: Advanced Thermal Architecture, Enlarged Thermal Guards
- Next Gen Connectivity: PCIe 5.0, VisionLINK I/O, Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Fast Networking: WiFi 6 802.11ax, Intel 2.5 GbE LAN, BT5
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
- Dedicated LGA1700 mounting bracket is required
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.
LEARN MORE ABOUT THE GIGABYTE Z690 AERO G DDR4
| Best Seller Ranking |
#87 in
|
Model
| Brand |
GIGABYTE |
| Model |

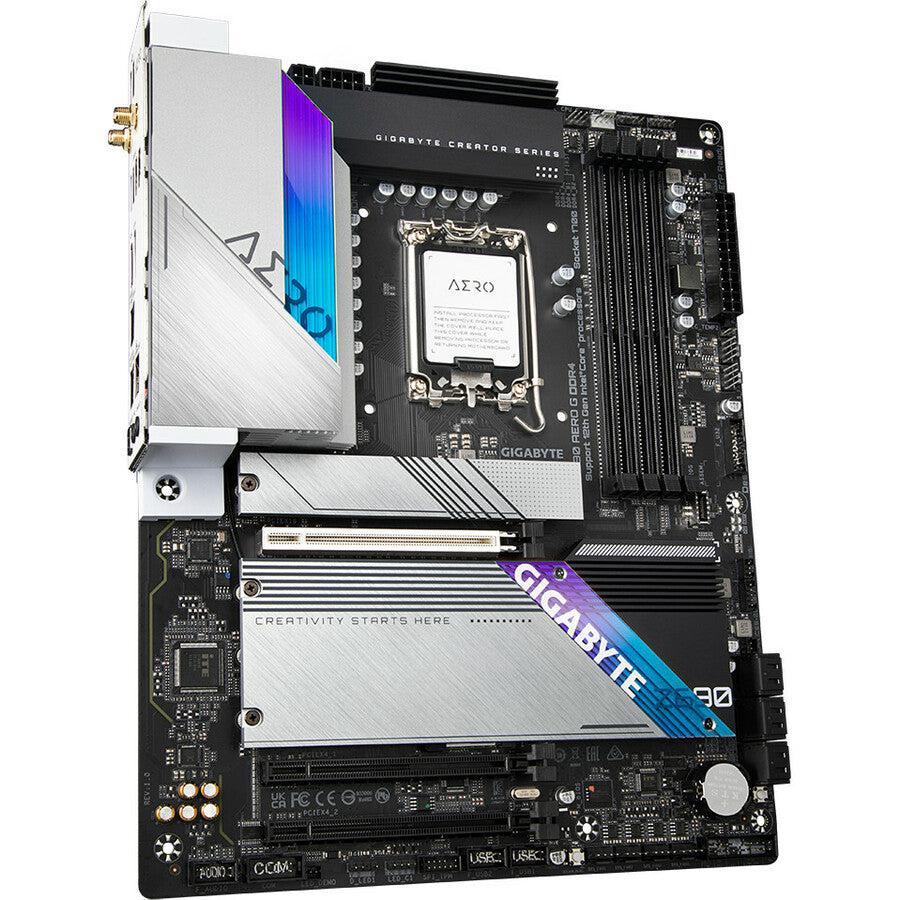

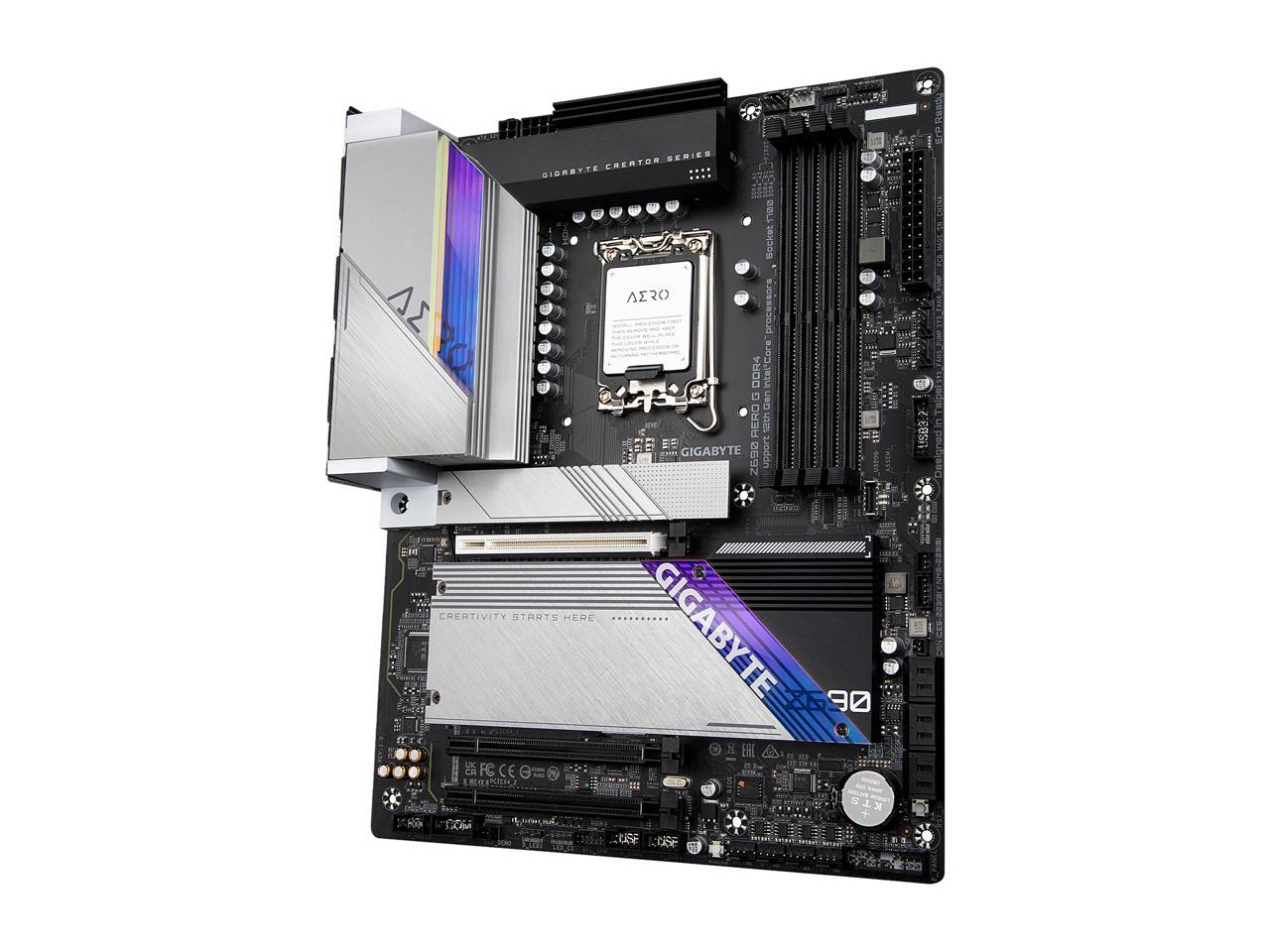

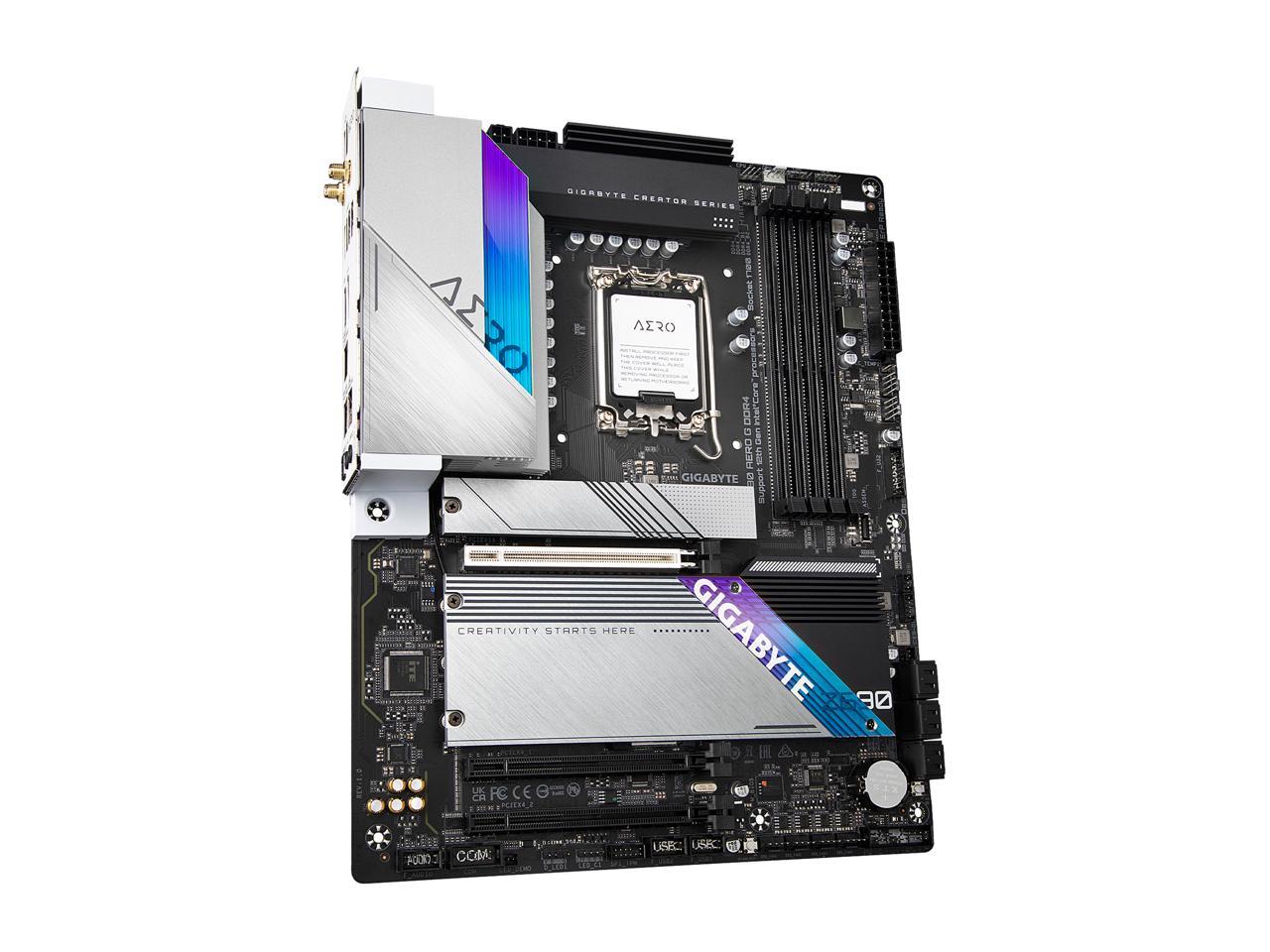

Z690 AERO G DDR4 |
Supported CPU
| CPU Socket Type
|
LGA 1700
* Dedicated LGA1700 mounting bracket is required. |
| CPU Type |
Supports 12th Gen Intel Core / Pentium / Celeron Processors |
Chipsets
| Chipset
|
Intel Z690 |
Onboard Video
| Onboard Video Chipset
|
Supported only by CPU with integrated graphic |
Memory
| Number of Memory Slots |
4×288pin |
| Memory Standard |
DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Maximum Memory Supported |
128GB |
| Channel Supported
|
Dual Channel |
Expansion Slots
| PCI Express 5.0 x16 |
1 x PCI Express 5.0 x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 3.0 x16 |
2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2) |
Storage Devices
| SATA 6Gb/s
|
6 x SATA 6Gb/s |
| M.2 |
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Intel Optane Ready |
Yes
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
Onboard Audio
| Audio Chipset
|
Realtek ALC4080 |
| Audio Channels
|
2-channel analog output
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
Onboard LAN
| Max LAN Speed |
10/100/1000/2500Mbps |
| Wireless LAN |
Intel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax |
| Bluetooth |
Bluetooth 5.2 |

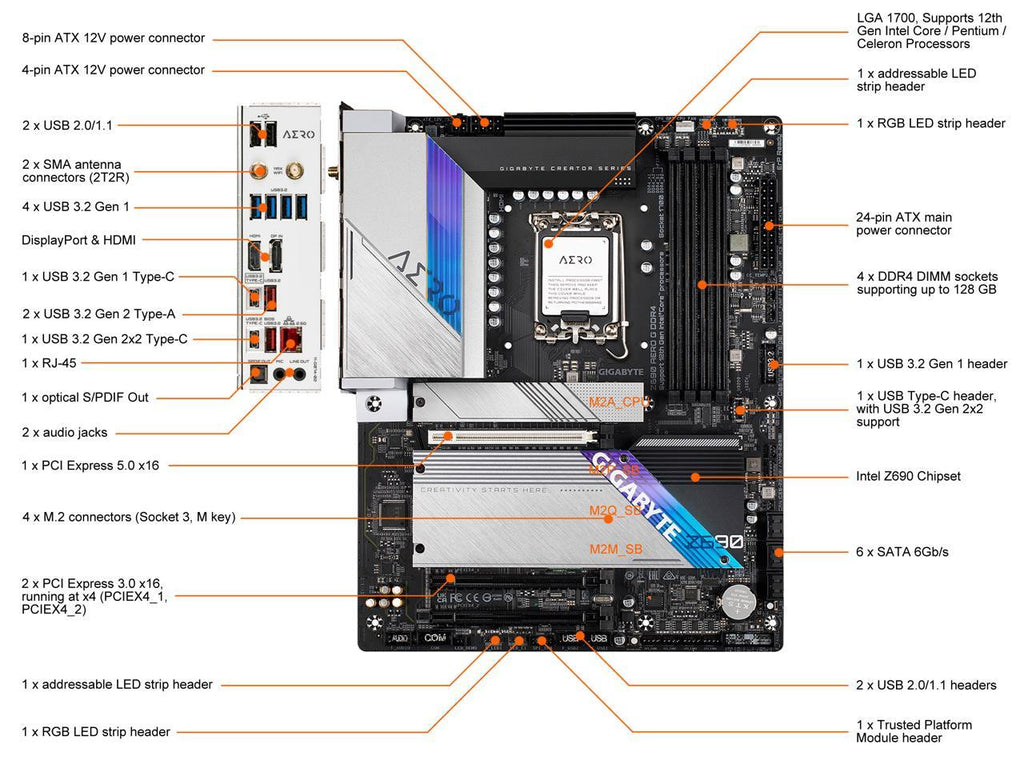

Rear Panel Ports

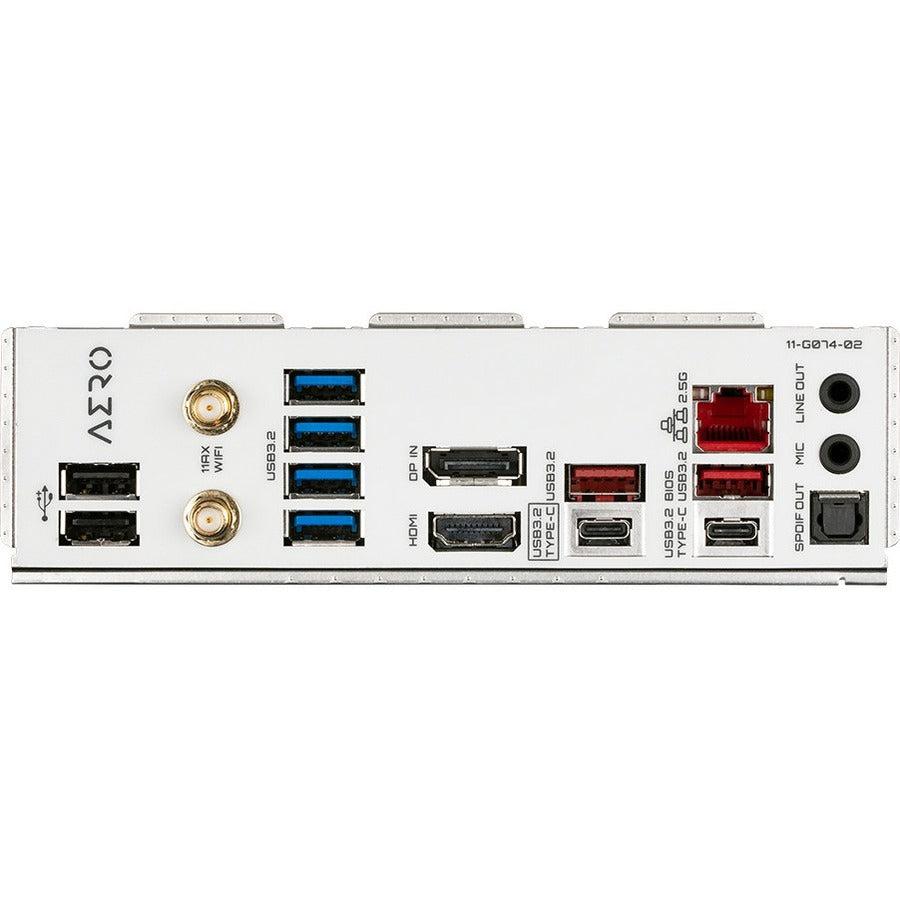

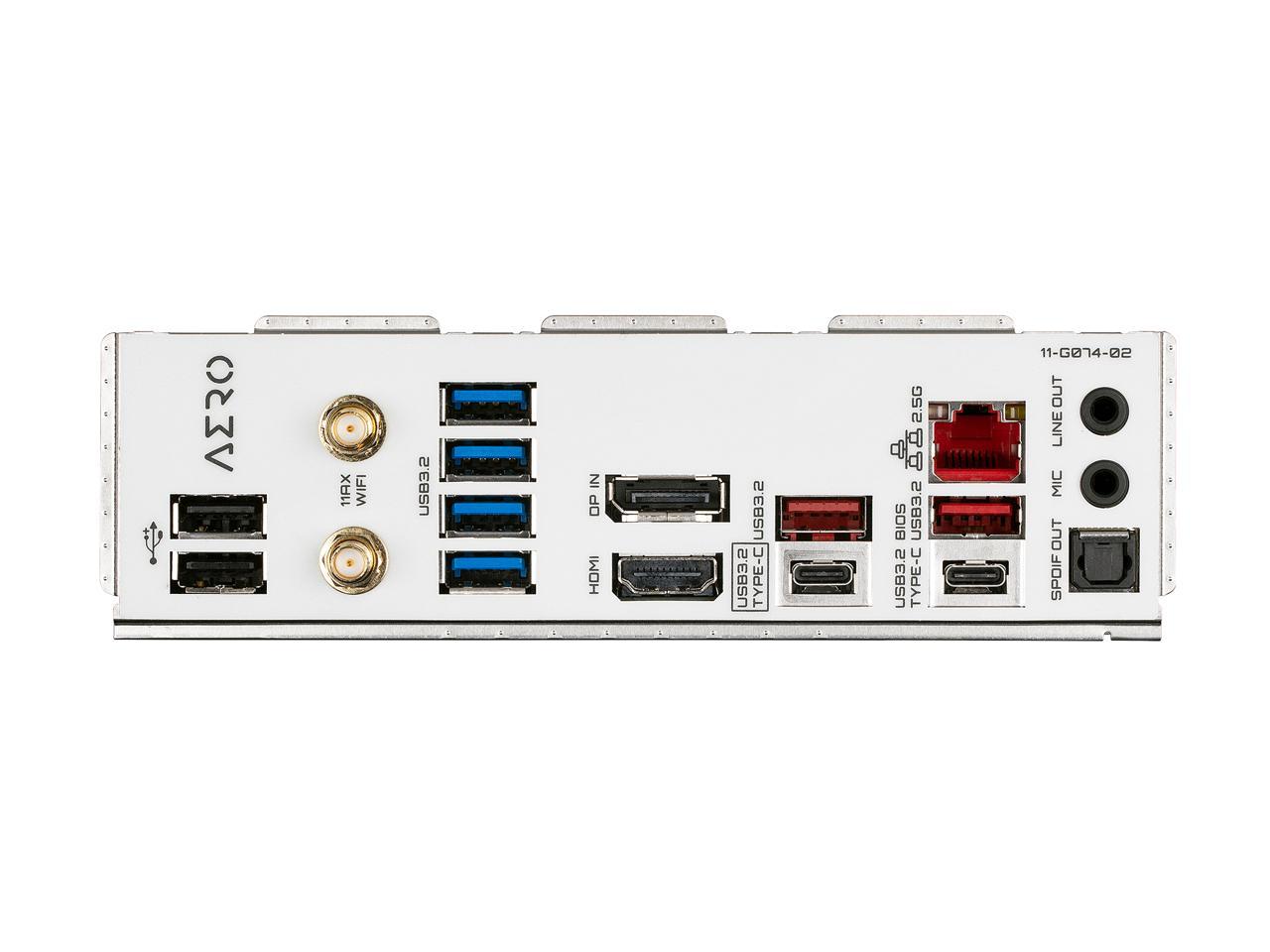

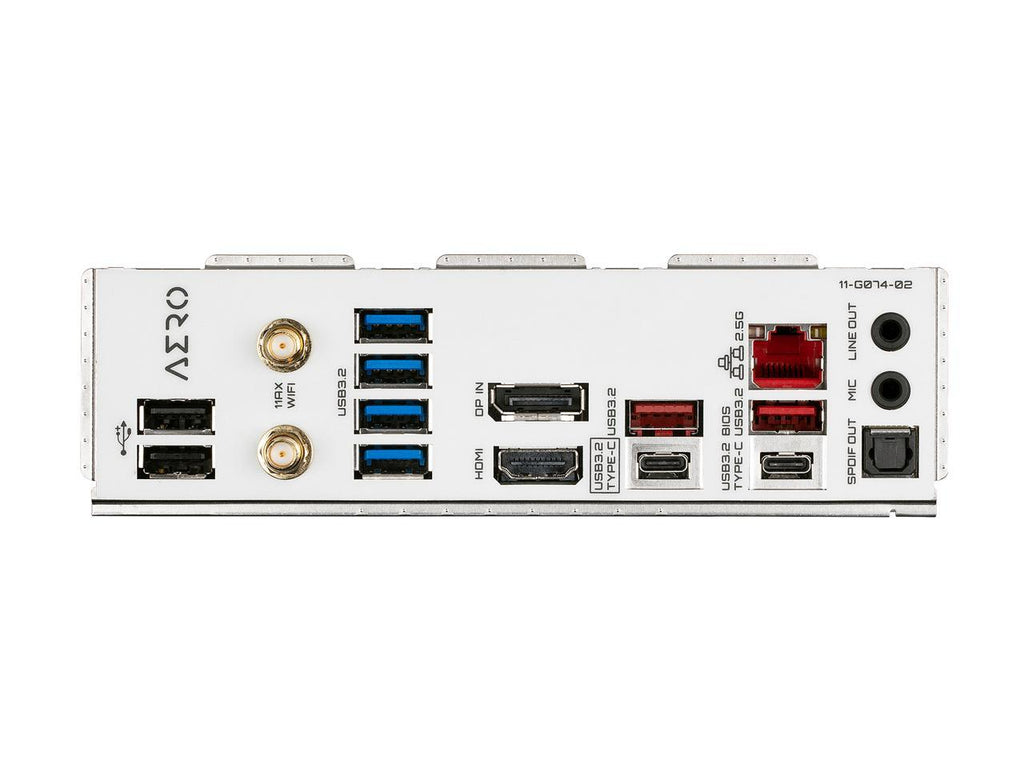

| Back I/O Ports |
1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 1 Type-C / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 |
Internal I/O Connectors
| Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers |
| Other Connectors |
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper |
Physical Spec
| Form Factor |
ATX |
| LED Lighting |
RGB |

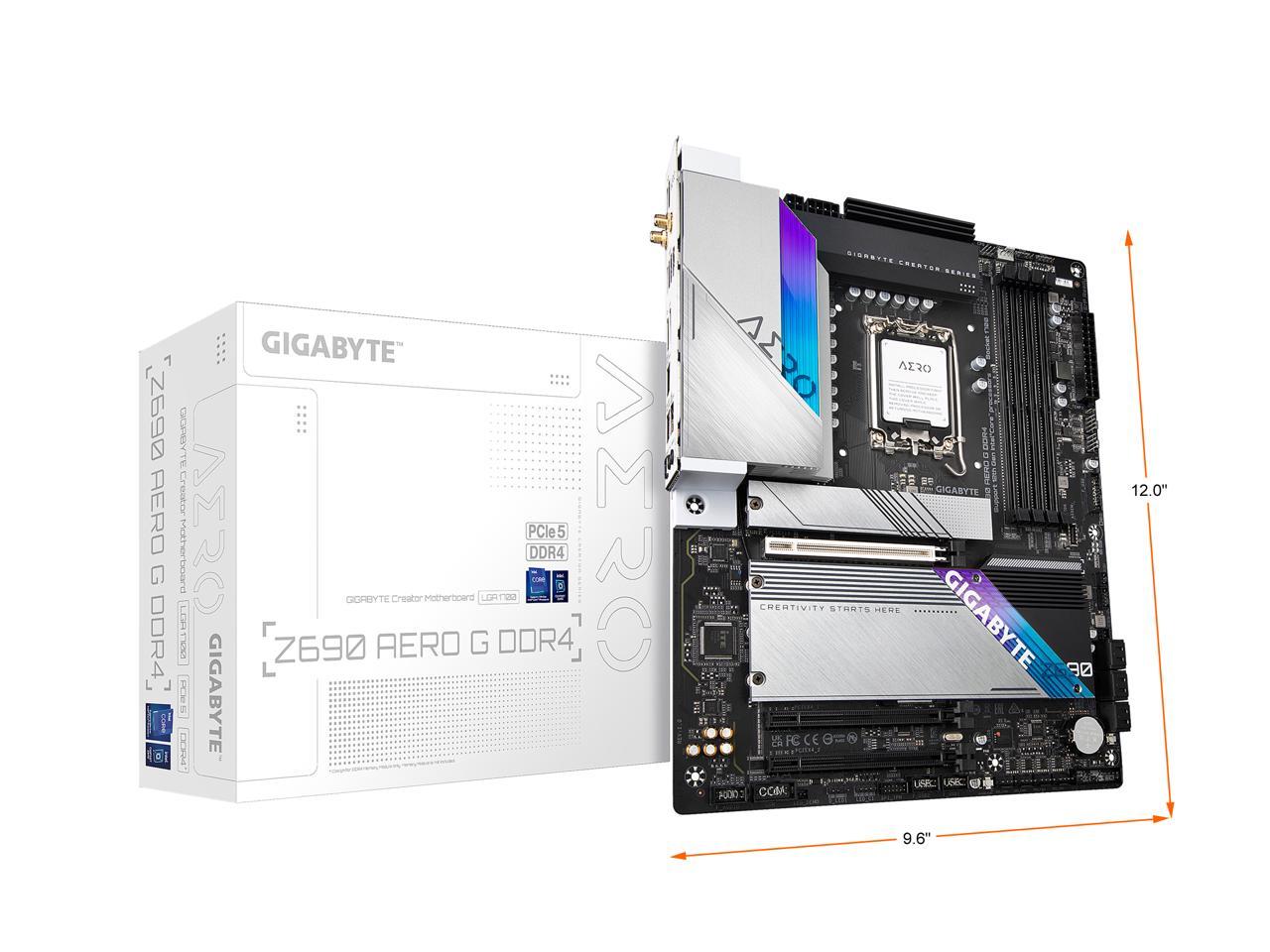

| Dimensions (W x L) |
12.0" x 9.6" |
| Power Pin |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector |
Windows Compatibility
| Windows 11 |
Supported |
Features
| Features |
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed
Operating System:
Support for Windows 10 64-bit |
