Description
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Shielded Memory Routing to avoid Interference
- Advanced Thermal Solution with Fins-Array II Heatsink
- Direct Touch Heatpipe II and Thermal Guard II
- Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU

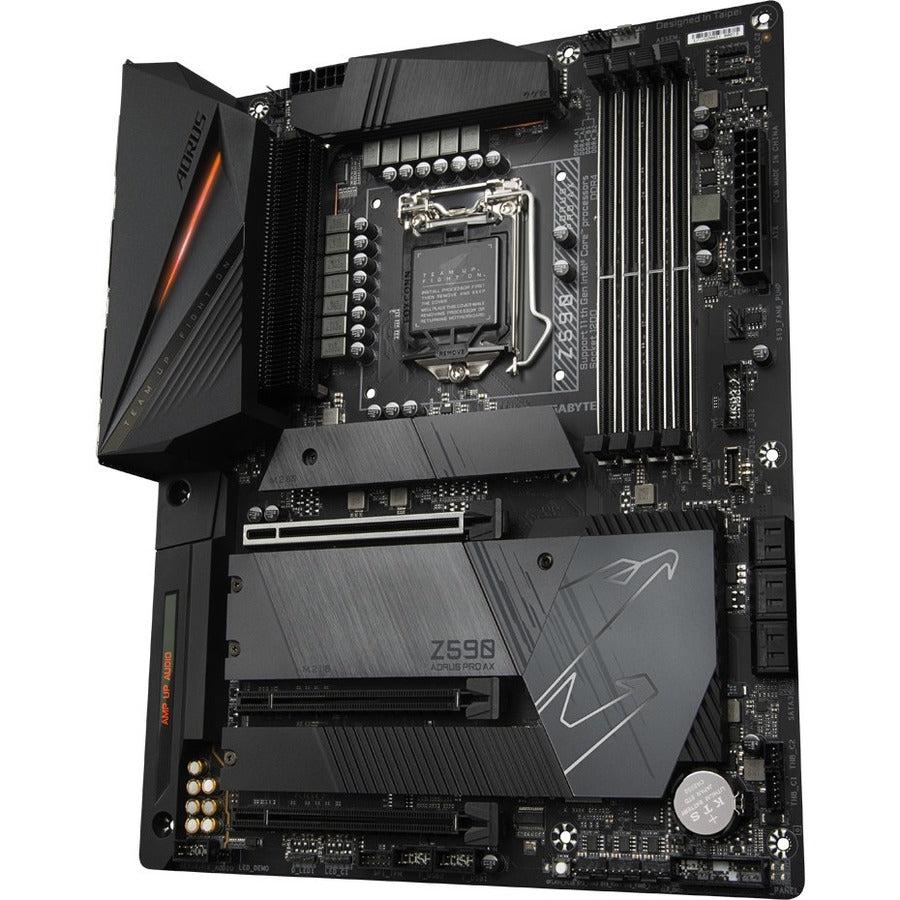

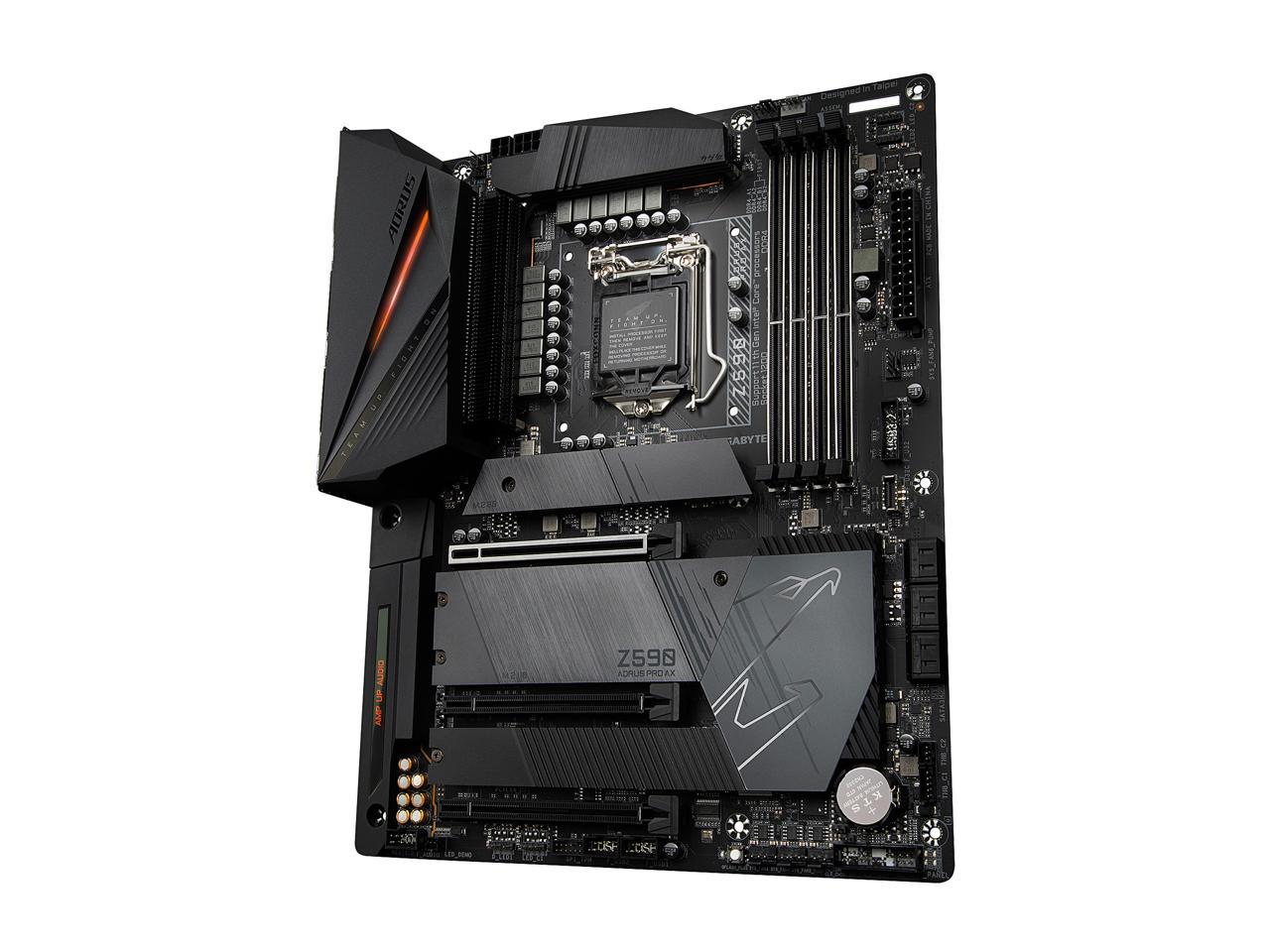

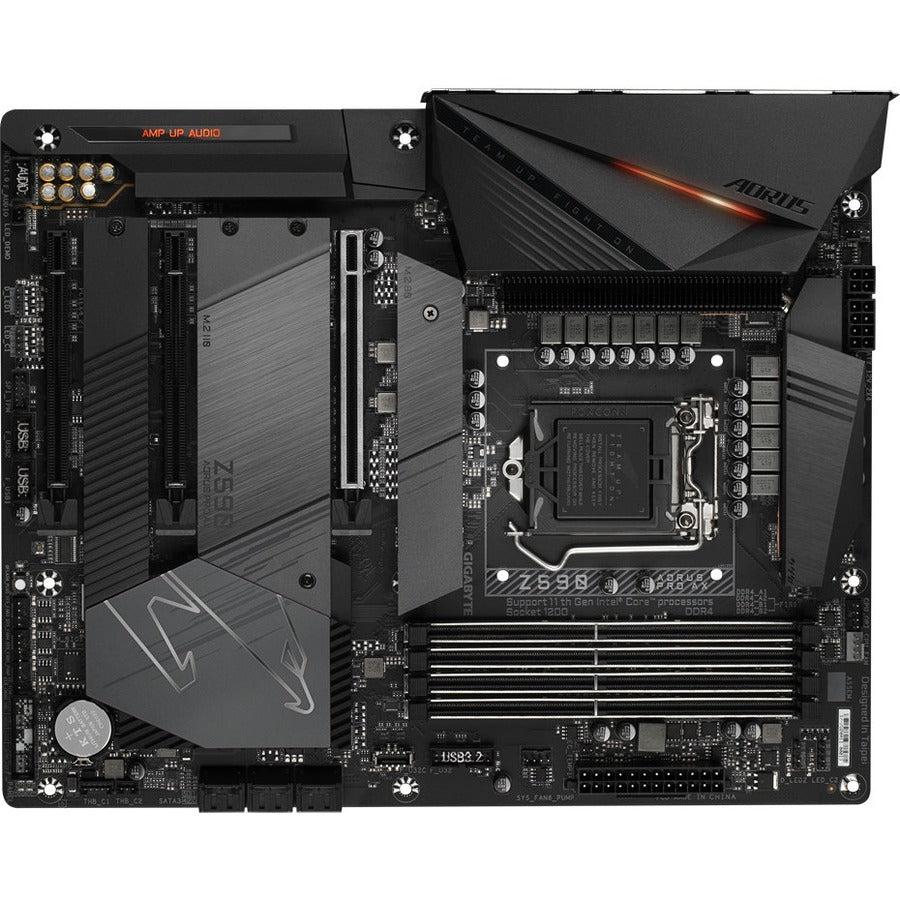

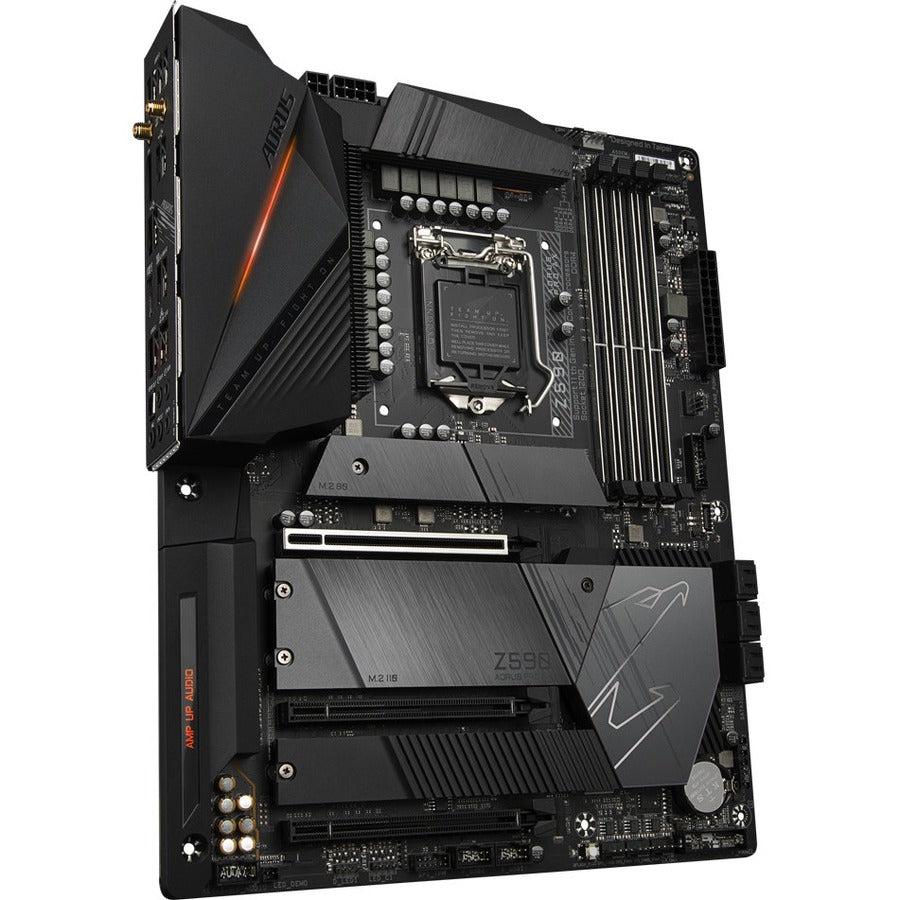

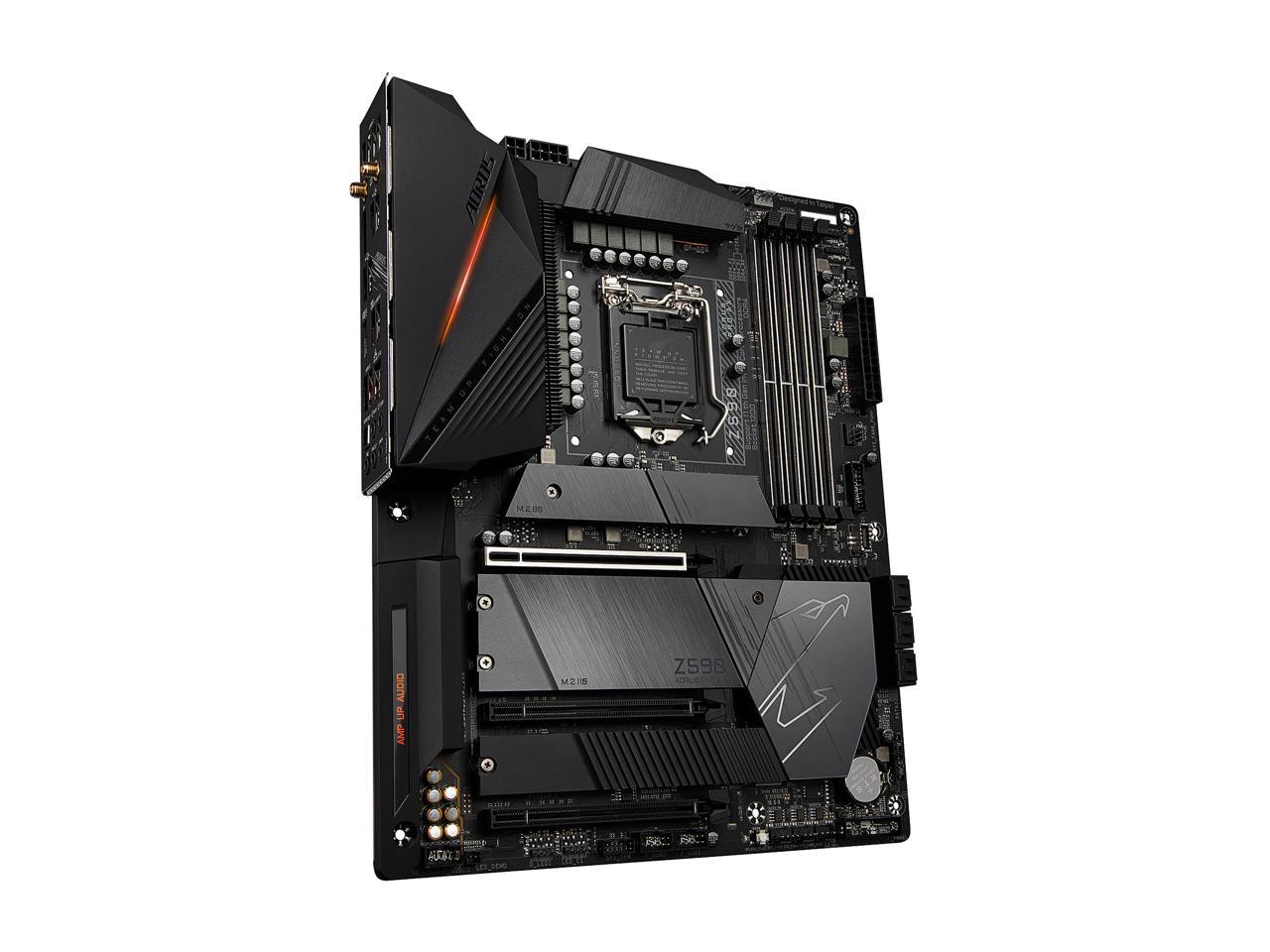

An ATX motherboard that comes with upgraded power solution, advanced circuitry and ultra-fast connectivity to elevate your gaming experience to the next level. And with aggressive-looking heatsinks and customizable onboard RGB lighting, the Z590 AORUS PRO AX excels in both performance and aesthetics.

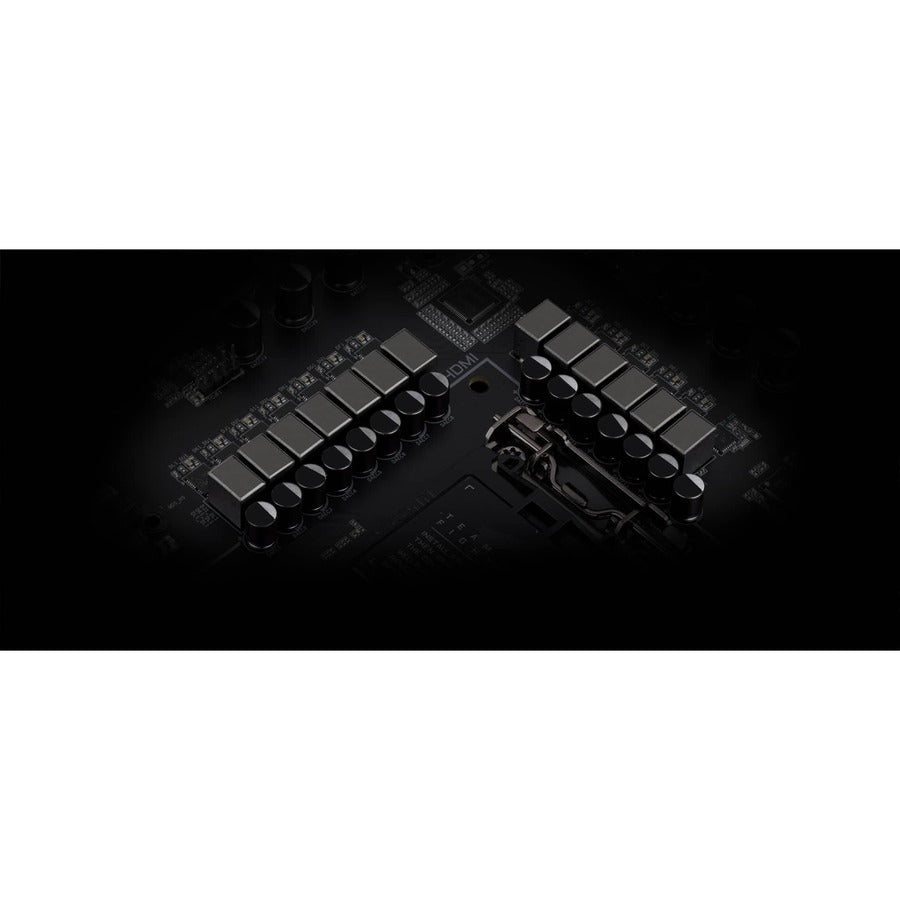

Digital PWM
Z590 AORUS PRO AX uses a pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1080A. This 100% digital controller, new Tantalum Polymer Capacitors Array, and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the eight-core 11th Gen. Intel Core processors.
- 90A Smart Power Stage for Each vCore Phase
- High Current Capacity MOSFET
- Tantalum Polymer Capacitors Array
- Lower Temperatures
- Improved Transient
Improved Transient Response
By using brand new VRM design and Tantalum Polymer Capacitor Array, Z590 AORUS motherboard’s transient response and stability is highly improved under overclocking and heavy loading condition.
Support for DDR4 XMP up to 5000 MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
PCIe 4.0 Hardware Design
1. 3 x M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance
2. 1X PCIe 4.0 Slot
Reinforced PCIe 4.0 x16 with lower impedance
3. Mid-Loss PCB
Triple 7 GB/s Gen4 M.2 PCIe SSDs in RAID 0
The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 20987 and 19378 MB/s.
Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that needs compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Circulation Zone
Because of pressure difference and flow separation, a circulation zone will be formed between louvered fins. This circulation will cause flow to entrain and eject in the vortice form which improves thermal efficiency.
Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made from a new manufacturing process to narrow the gap between the heatpipe and heatsink, new Direct-Touch Heatpipe II greatly helps transfer heat on MOSFETs.

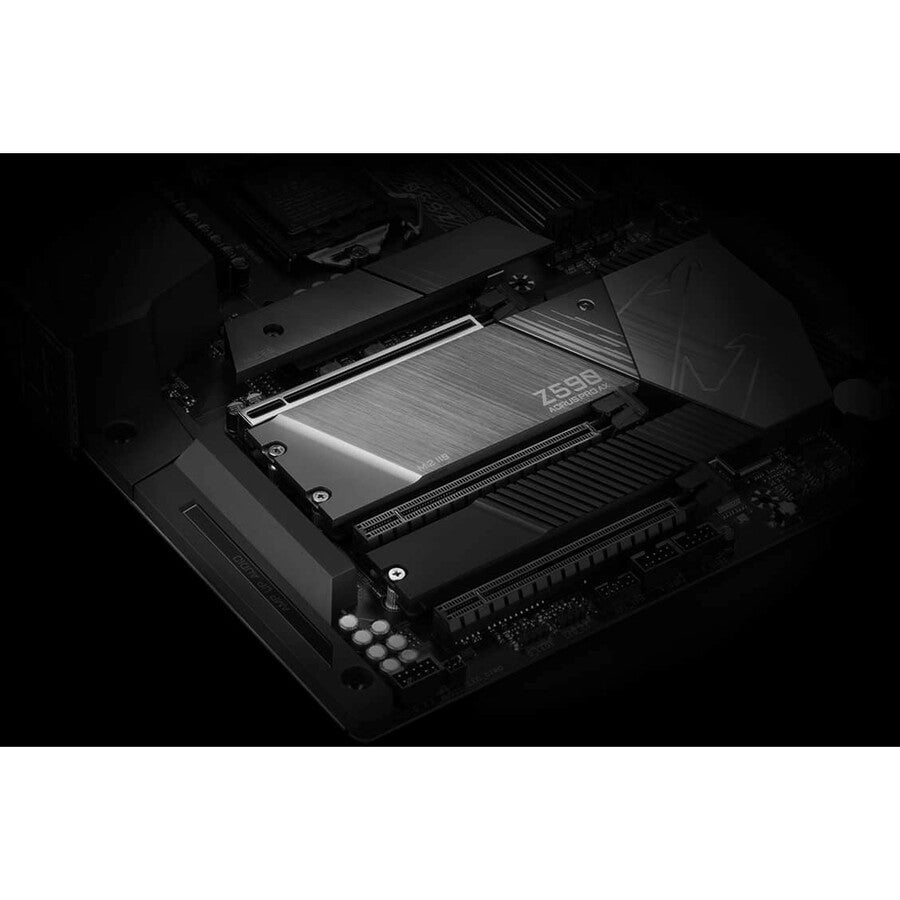

AORUS M.2 Thermal Guard II
With durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.
Thermal Throttling as Temperature Rises
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intel 2.5GbE LAN Onboard
2X Faster than ever
Adoption of 2.5G LAN provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet
New Introduce Intel WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, and provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4 Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefits of WIFI 6
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense areas with lots of devices
- Network efficiency increases for better user experience
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40 kHz or above which ensures users with the best audio quality at all times.
Immersive Gaming ViBes
Realtek High-End HD Audio Codec
- Supports audio format up to 32-bit / 384 KHz and output SNR up to Rear / Front 120dB / 110dB.
- Automatically detects impedance of audio device, preventing low volume and distortion.
- Stream voice with up to 110dB(A) SNR via microphone.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, users have complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable Memory Armor
AORUS' exclusive one-piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Solid Pin Power Connectors
AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
* Photo for reference only.
Q-Flash Plus
Update the BIOS easily without installing CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU, Memory, Storage, and Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as processor, set your preferred fan speed profile, and create alerts when temperatures get too high or record your system's behavior — these are the possibilities of the System Information Viewer.
Intel Z590 AORUS Motherboard comes with Direct 12+1 Phases 90A Digital VRM Design, Comprehensive Thermal Solution with Fins-Array II, Triple CPU Gen4 M.2, Intel WiFi 6 802.11ax, RGB FUSION 2.0
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Shielded Memory Routing to avoid Interference
- Advanced Thermal Solution with Fins-Array II Heatsink, Direct Touch Heatpipe II and Thermal Guard II
- Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 4.0* / 3.0 x4 M.2 with Thermal Guards II for extreme RAID Performance
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensor, Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing CPU, Memory and Graphics Card
* Actual support may vary by CPU.
General Information
| Manufacturer | GIGABYTE Technology, Inc |
|---|---|
| Manufacturer Part Number | Z590 AORUS PRO AX |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Model | Z590 AORUS PRO AX |
| Product Name | Ultra Druable Z590 AORUS PRO AX (rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 889523026458 |
| Chipset Manufacturer | Intel |
|---|
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Yes |
| Total Number of USB Ports | 13 |
|---|---|
| Number of USB 3.2 Gen 1 Ports | 4 |

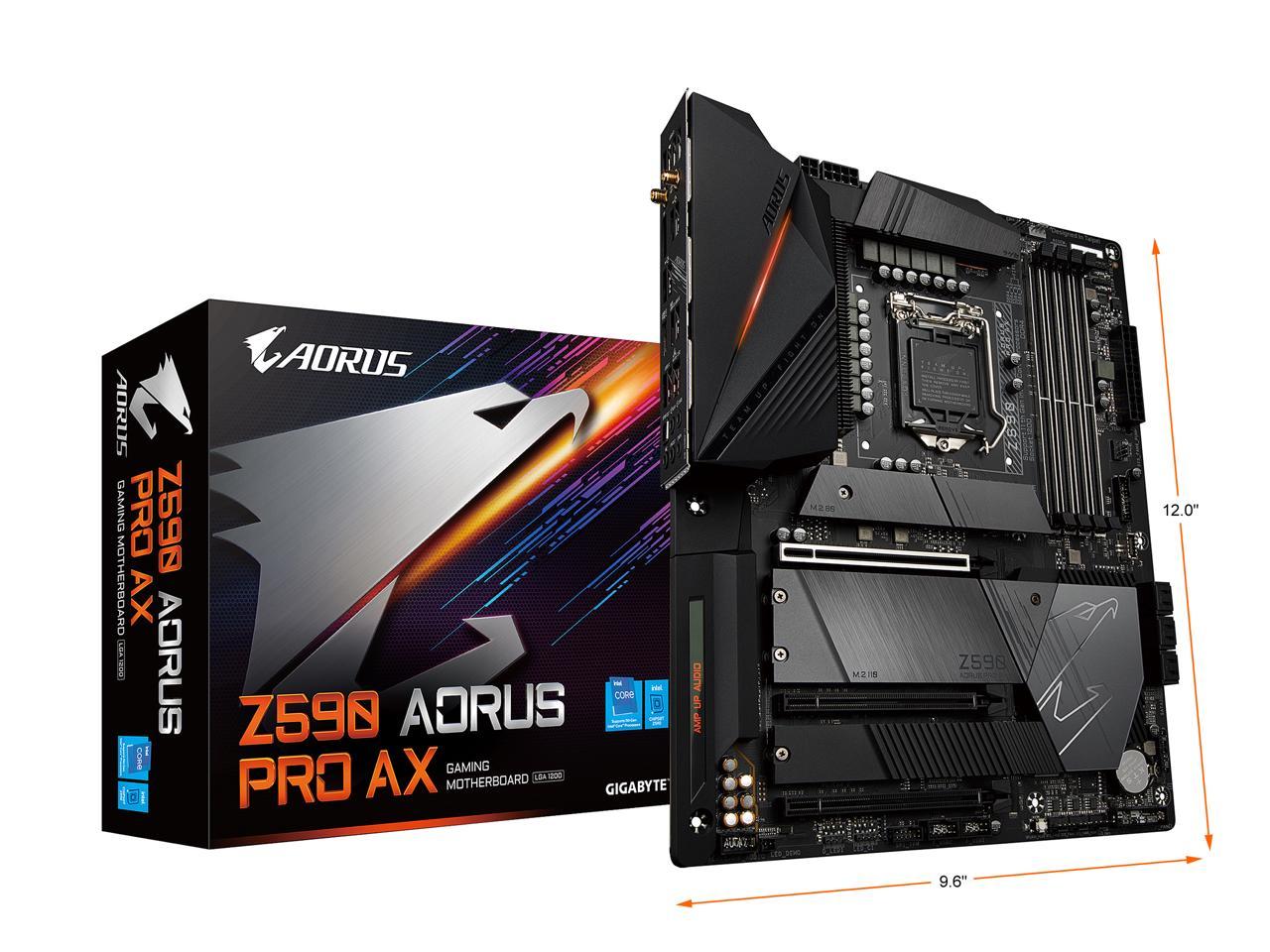

| Width | 12" |
|---|---|
| Depth | 9.6" |
