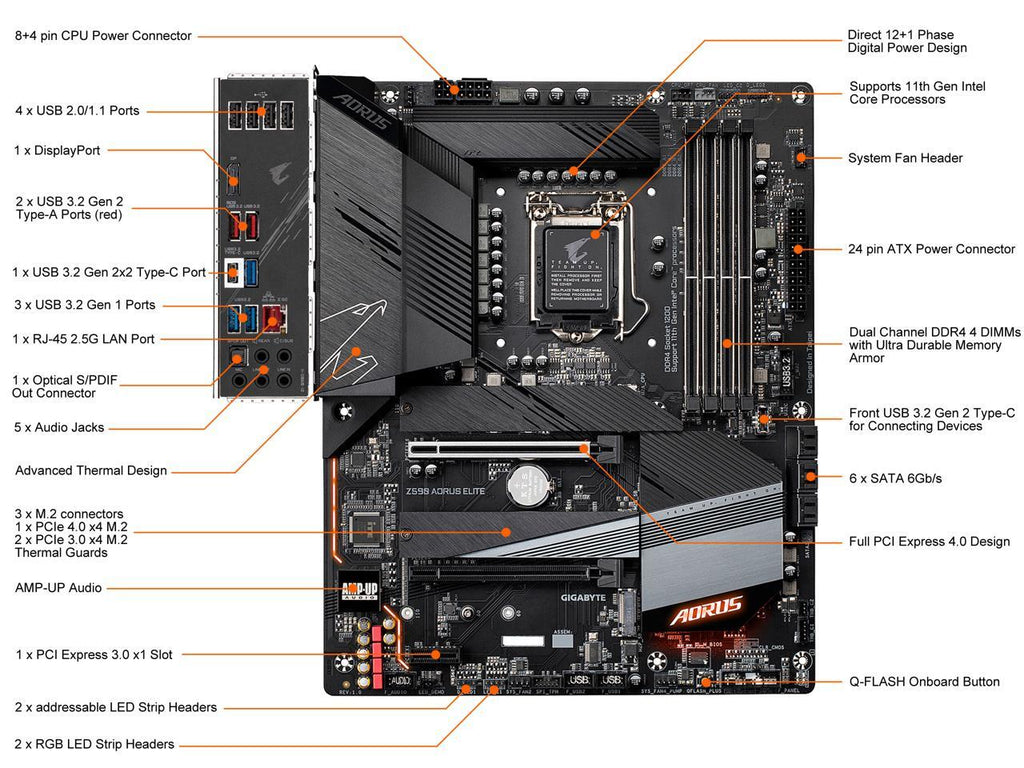

- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

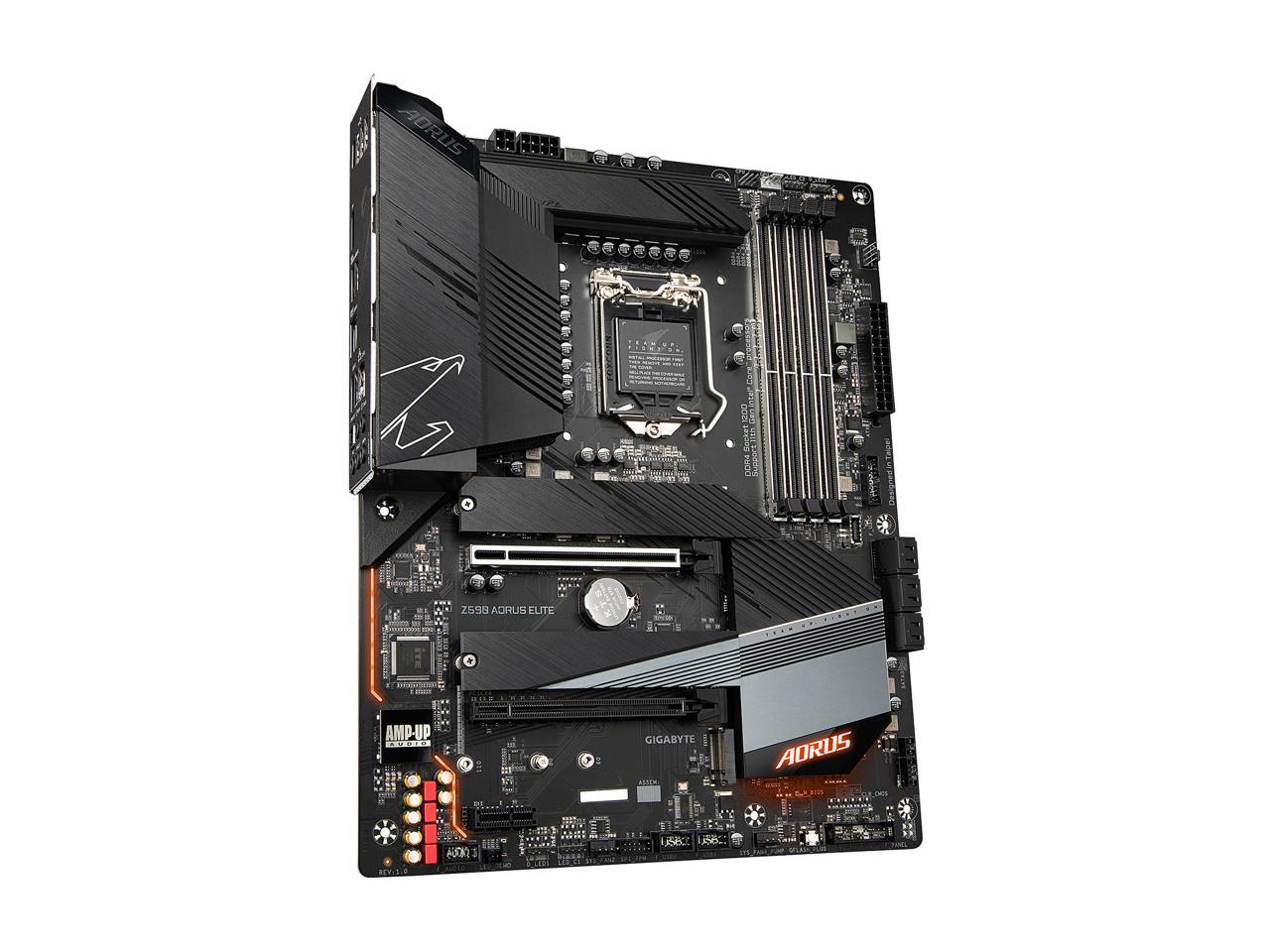

LEARN MORE ABOUT THE GIGABYTE Z590 AORUS ELITE
Model
| Brand |
GIGABYTE |
| Model |
Z590 AORUS ELITE |
Supported CPU
| CPU Socket Type
|
LGA 1200 |
| CPU Type |
Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors*
* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. |
Chipsets
| Chipset
|
Intel Z590 |
Onboard Video
| Onboard Video Chipset
|
Supported only by CPU with integrated graphic |
Memory
| Number of Memory Slots |
4×288pin |
| Memory Standard |
DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors)
DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors)
DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors) |
| Maximum Memory Supported |
128GB |
| Channel Supported
|
Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 |
1 x PCI Express 4.0 x16
* Actual support may vary by CPU. |
| PCI Express 3.0 x16 |
1 x PCI Express 3.0 x16
* Actual support may vary by CPU. |
| PCI Express x1 |
1 x PCI Express 3.0 x1 |
Storage Devices
| SATA 6Gb/s
|
6 x SATA 6Gb/s |
| M.2 |
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
* Supported by 11th Generation processors only. |
| Intel Optane Ready |
Yes |
| SATA RAID |
0/1/5/10 |
Onboard Audio
| Audio Chipset
|
Realtek ALC1220-VB
* The back panel line out jack supports DSD audio. |
| Audio Channels
|
7.1 Channels |
Onboard LAN
| LAN Chipset |
Realtek 2.5GbE LAN chip |
| Max LAN Speed |
10/100/1000/2500Mbps |

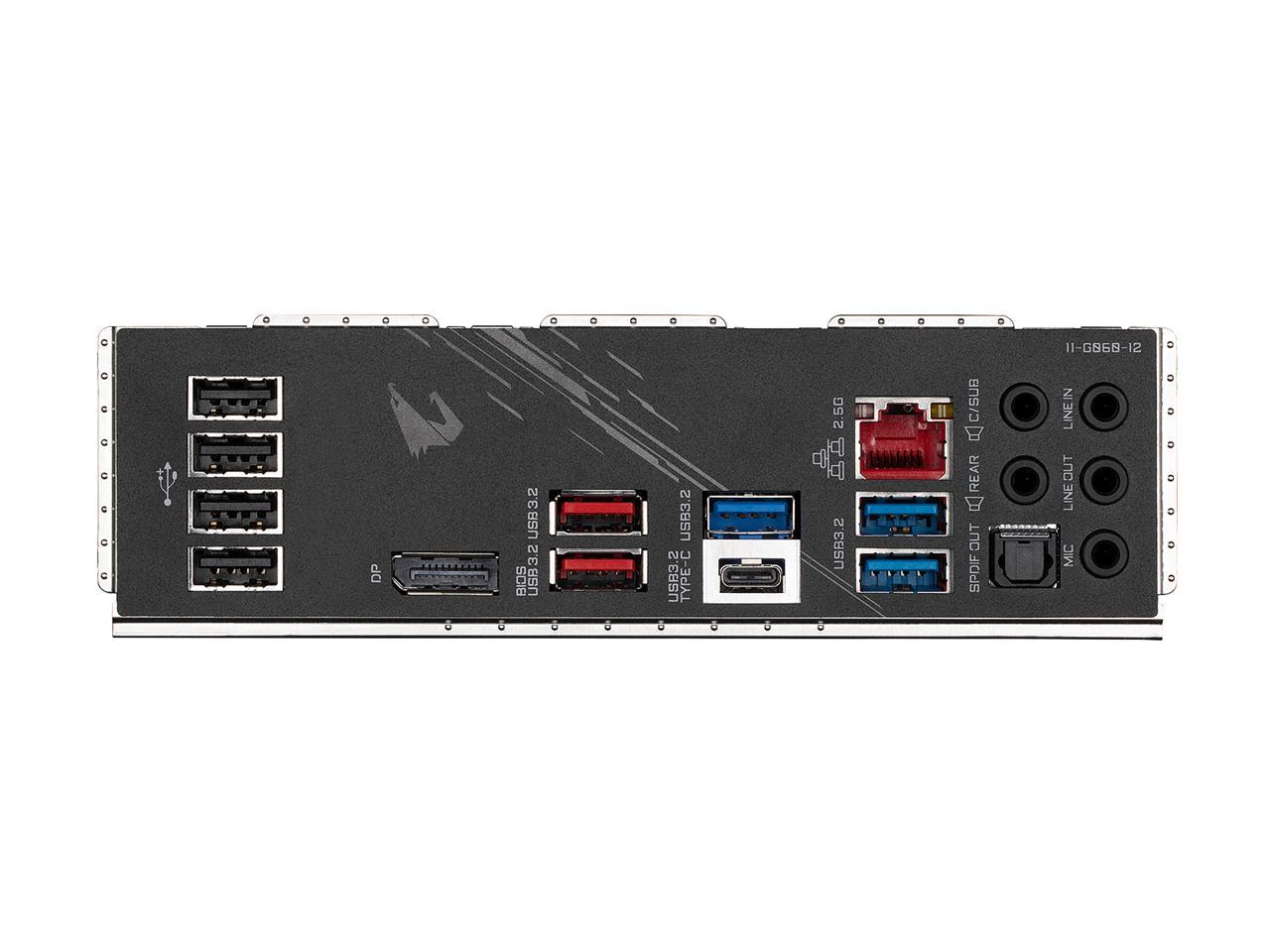

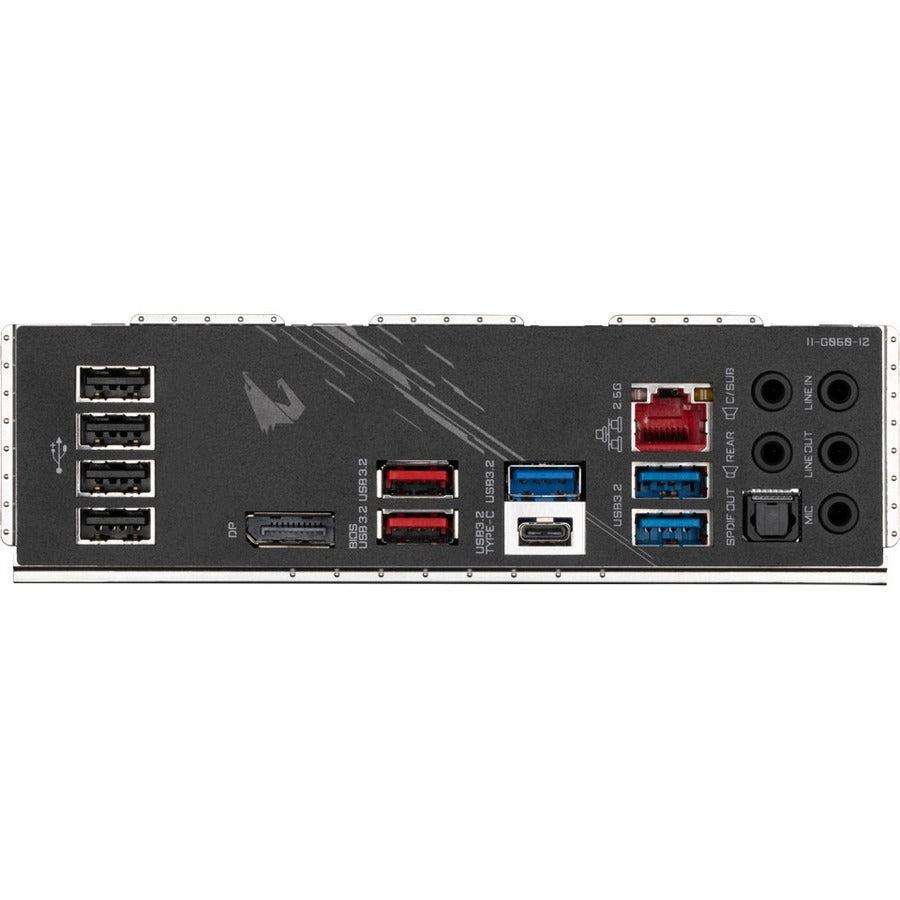

Rear Panel Ports
| Back I/O Ports |
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks |
Internal I/O Connectors
| Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers |
| Other Connectors |
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button |
Physical Spec
| Form Factor |
ATX |
| LED Lighting |
RGB |
| Dimensions (W x L) |
12.0" x 9.6" |
| Power Pin |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector |
Windows Compatibility
| Windows 11 |
Supported |
Features
| Features |
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
Realtek 8125 Gaming LAN Bandwidth Control Utility
Operating System:
Support for Windows 10 64-bit |
