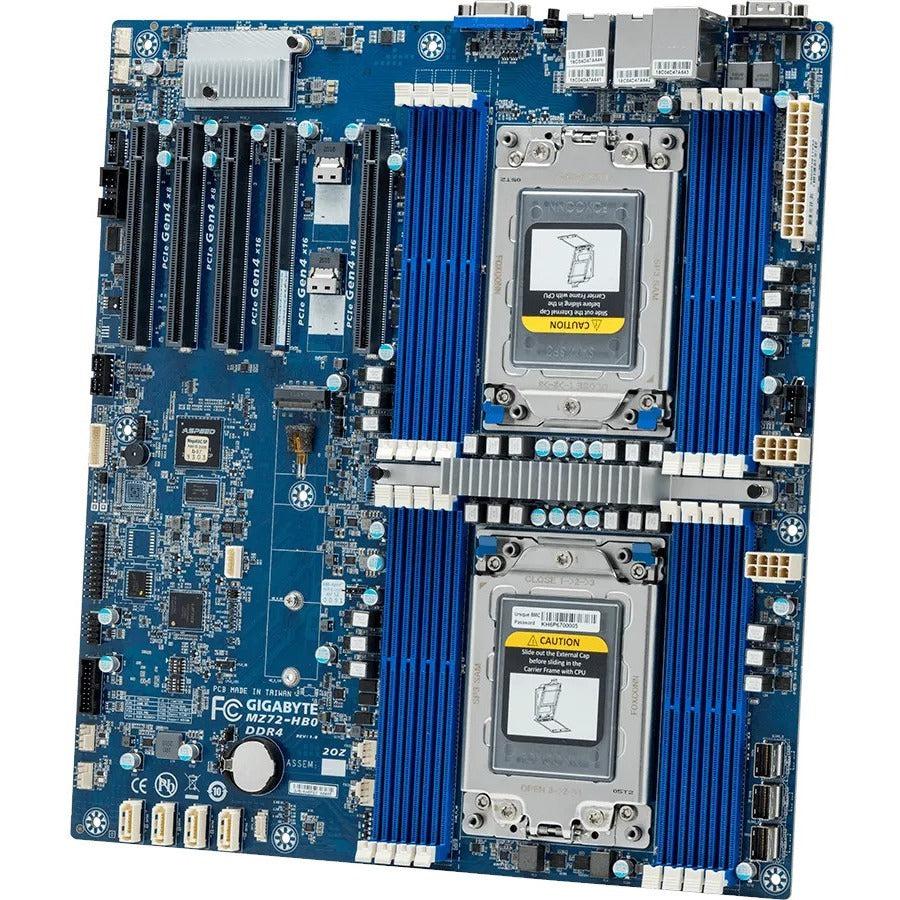

Gigabyte Mz72-Hb0 Server Motherboard - Amd Chipset - Socket Sp3 - Extended Atx

Description :

Gigabyte MZ72-HB0 Server Motherboard - AMD Chipset - Socket SP3 - Extended ATX

• Dual AMD EPYC™ 7002 series processor family
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
• 2 x 10Gb/s LAN ports (Broadcom® BCM57416)
• 1 x Dedicated management port
• 4 x 7-pin SATA 6Gb/s ports
• 3 x SlimSAS (with 12 x SATA 6Gb/s or 3 x NVMe PCIe Gen4 x4) ports
• 2 x SlimSAS (with 2 x NVMe PCIe Gen4 x4) ports
• 1 x Ultra-Fast M.2 with PCIe Gen4 x4 bandwidth
• Up to 5 x PCIe Gen4 slots

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe® 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
•
  Embedded security protection to help defend your CPU, applications, and data

PCIe® 4.0 Ready

AMD EPYC Rome is ready to support PCIe® 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMD's Radeon MI50 GPGPU.

Higher Memory Speed

AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

Max TDP Support

GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP)

Data Security

TPM 2.0 Module

GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

Carefully Selected Components

GIGABYTE's passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with long lasting components for a high degree of reliability and durability.

GIGABYTE Management Console

GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

• RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
• Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
• Detailed FRU information from SMBIOS
• 10 to 30 seconds pre-event automatic recording function
• SAS / RAID controller monitoring function

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:

•
  GSM Server
  A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.

• Compatible EPYC processor lets you perform all your computational tasks at a swift pace


• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput


• Supports ASPEED AST2500 controller to provide excellent ability in a variety of server applications


• With 2 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second


• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX server motherboard

Product Type: Server Motherboard
Environmentally Friendly: Yes
Country Of Origin: Taiwan
Brand Name: Gigabyte
Form Factor: Extended ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MZ72-HB0
Product Name: MZ72-HB0 (rev. 1.x) Server Motherboard
Manufacturer Part Number: MZ72-HB0
Manufacturer Website Address: http://www.gigabyte.us
Limited Warranty: 3 Year
