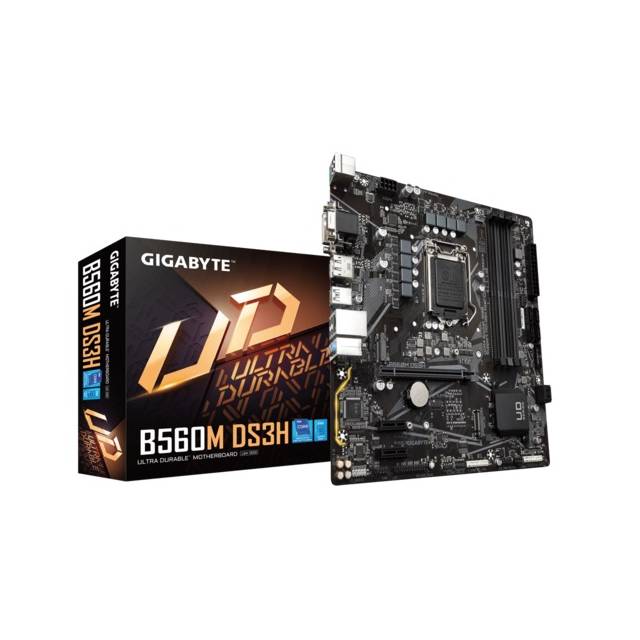

Gigabyte B560M Ds3H Socket Lga1200/ Intel B560/ Ddr4/ Sata3&Usb3.2/ M.2/ Micro Atx Motherboard
Gigabyte B560M Ds3H Socket Lga1200/ Intel B560/ Ddr4/ Sata3&Usb3.2/ M.2/ Micro Atx Motherboard
SKU:B560M DS3H
Couldn't load pickup availability
Description :
- Intel B560
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium / Celeron processors*
- * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
- DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors)
- DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors)
- DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

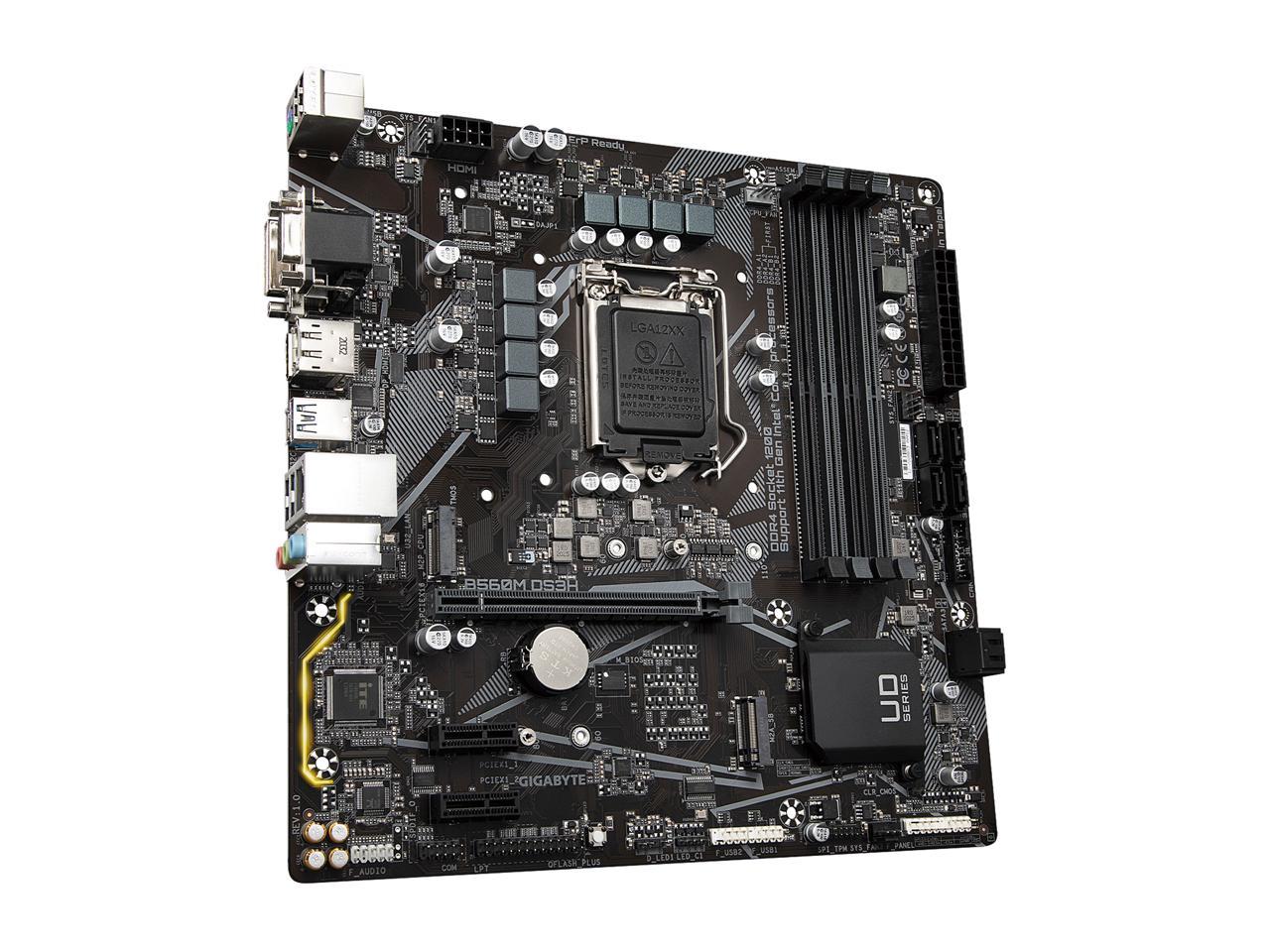

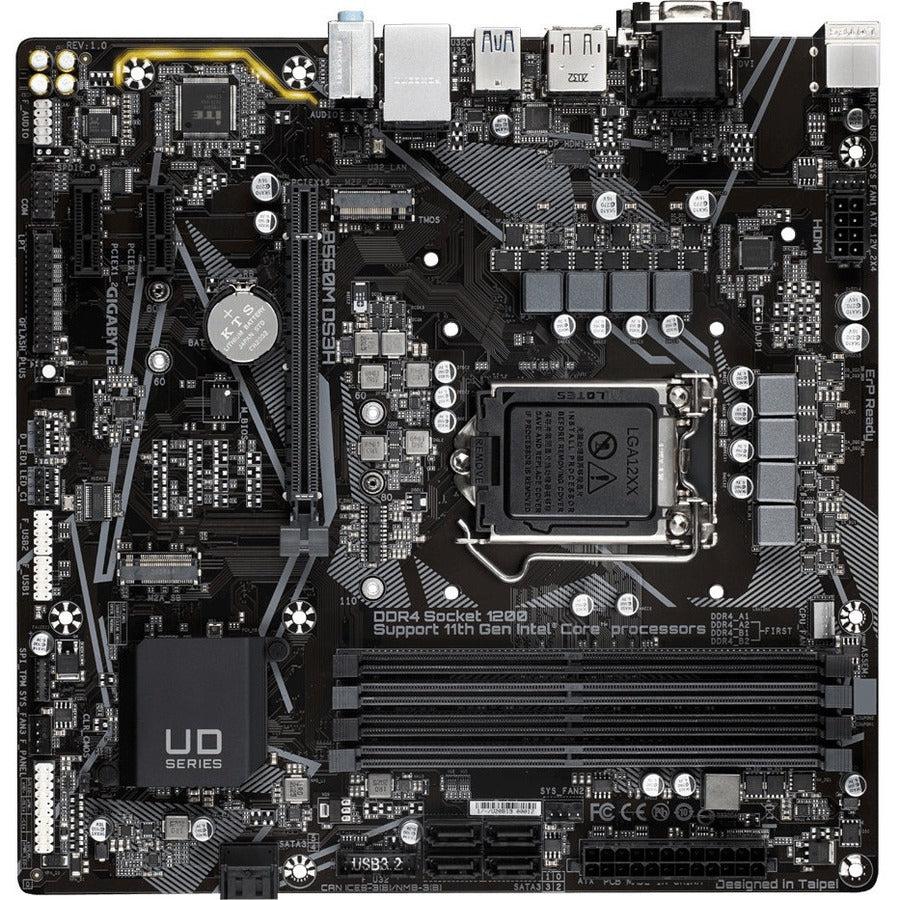

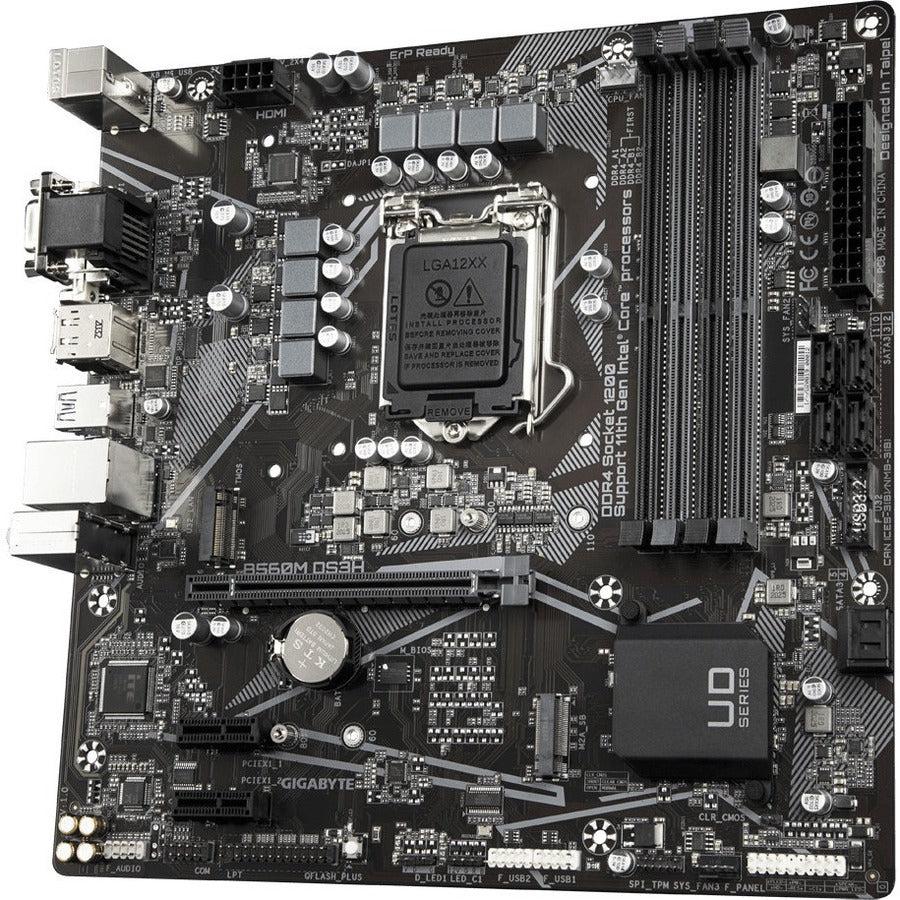

Gigabyte B560M DS3H
Based on the Intel B560 chipset, this mATX motherboard is engineered to take full advantage of 11th Intel Core processors. Featuring robust power delivery design, Ultra Durable components, ultra-fast PCIe 4.0 connectivity, and RGB FUSION for lighting customization, the B560M DS3H offers a solid foundation for your new home, office or gaming PC.

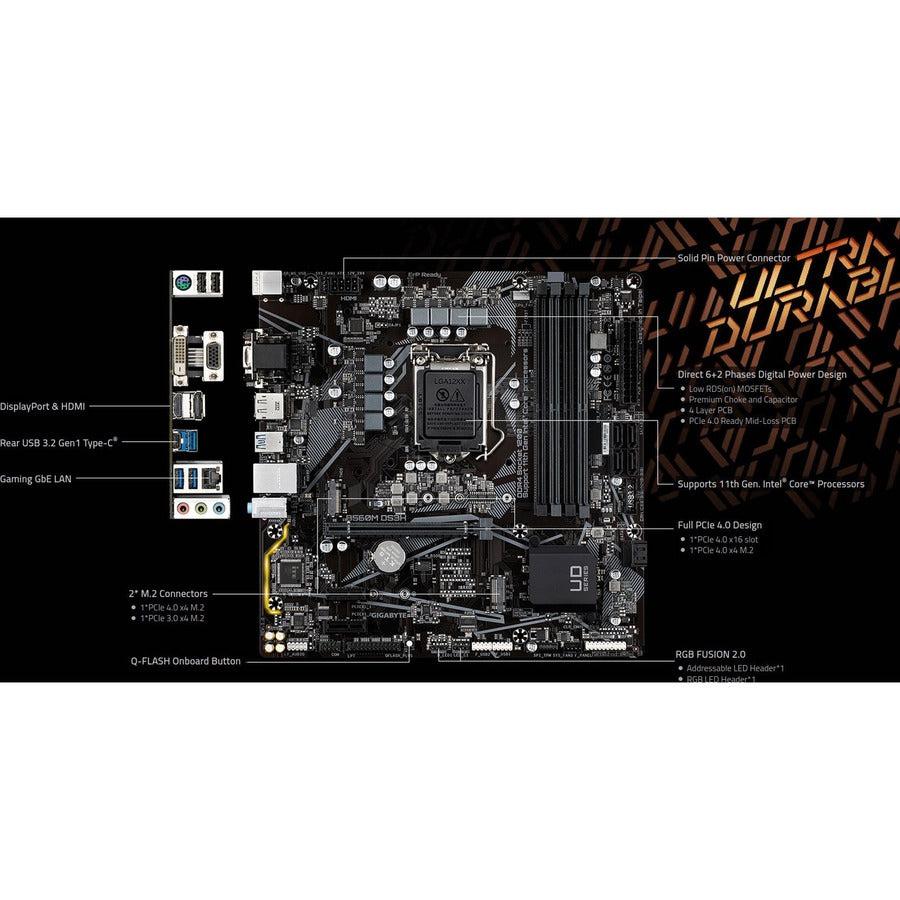

Features:
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- USB 3.2 Gen1 Type-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Updates BIOS without the Need to Install CPU, Memory and Graphics Card
* Actual support may vary by CPU.

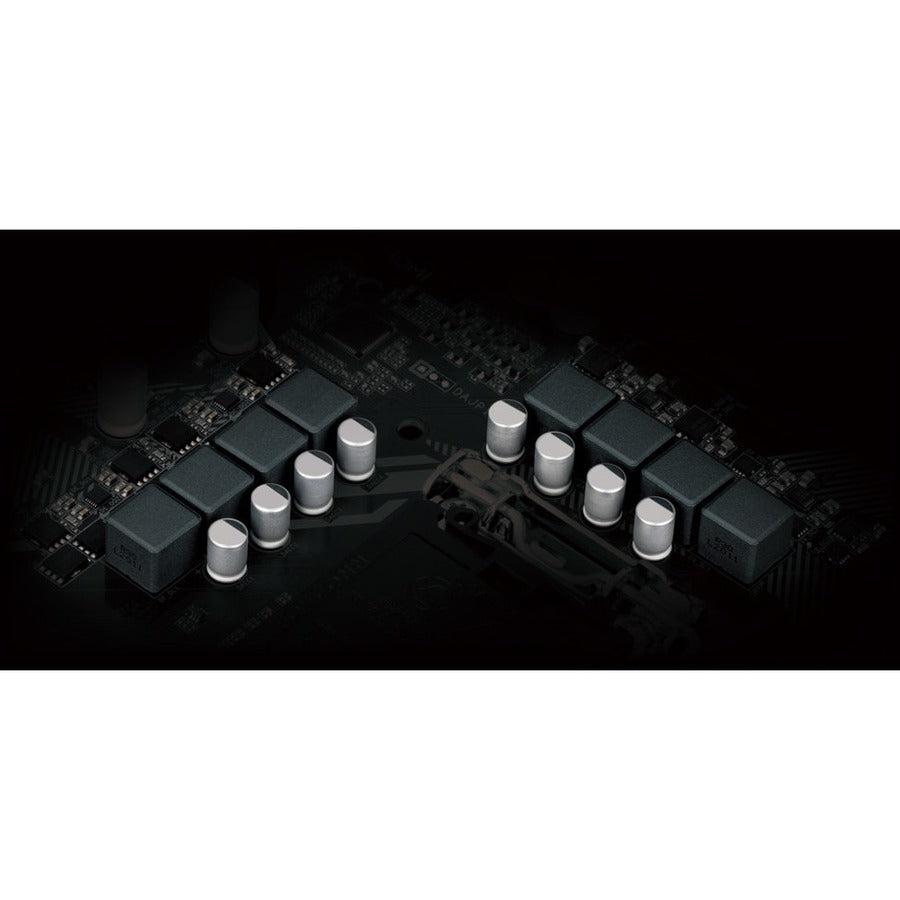

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading.
- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers — each power phase connects directly to the CPU.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.

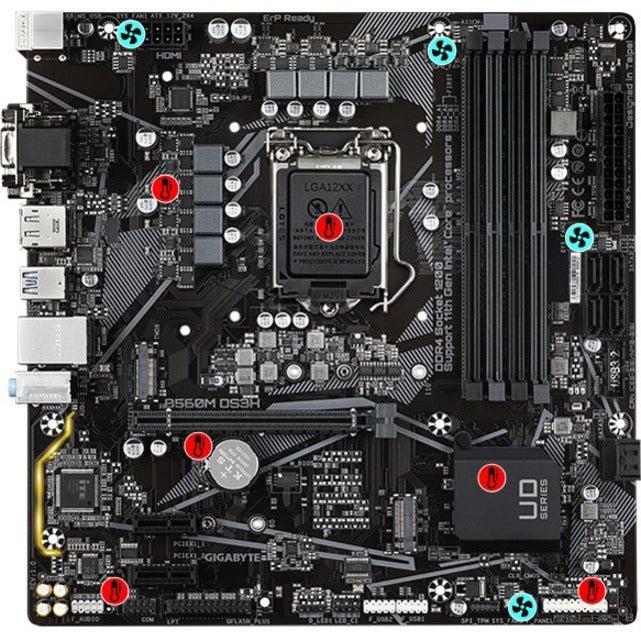

Smart Fan 6 contains several unique cooling features that ensure your gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
4 PWM/DC Fan Headers
6 Internal Temperature Sensors
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenarios
Fan Stop
Fan can stop completely below users' specified temperature point
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
* XMP Profile support may vary depending on memory module.
Memory Layout — Daisy Chain Design
With the optimized daisy-chain routing, the B560 Ultra Duable motherboard provides a proven speed of up to DDR4-4600+ MHz with high-density Memory module*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.
* Performance may vary by circumstance. Please refer to the QVL list for detail support information.
Single 32GB Support
The maximum memory capacity on the B560 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore, with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Full PCIe 4.0* Design
1. PCIe 4.0 Ready PCB
Low signal Loss PCB.
2. PCIe 4.0 M.2 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
3. 1 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x 16.
* PCIe 4.0 support varies by processor installed. Please refer to product spec for further details.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

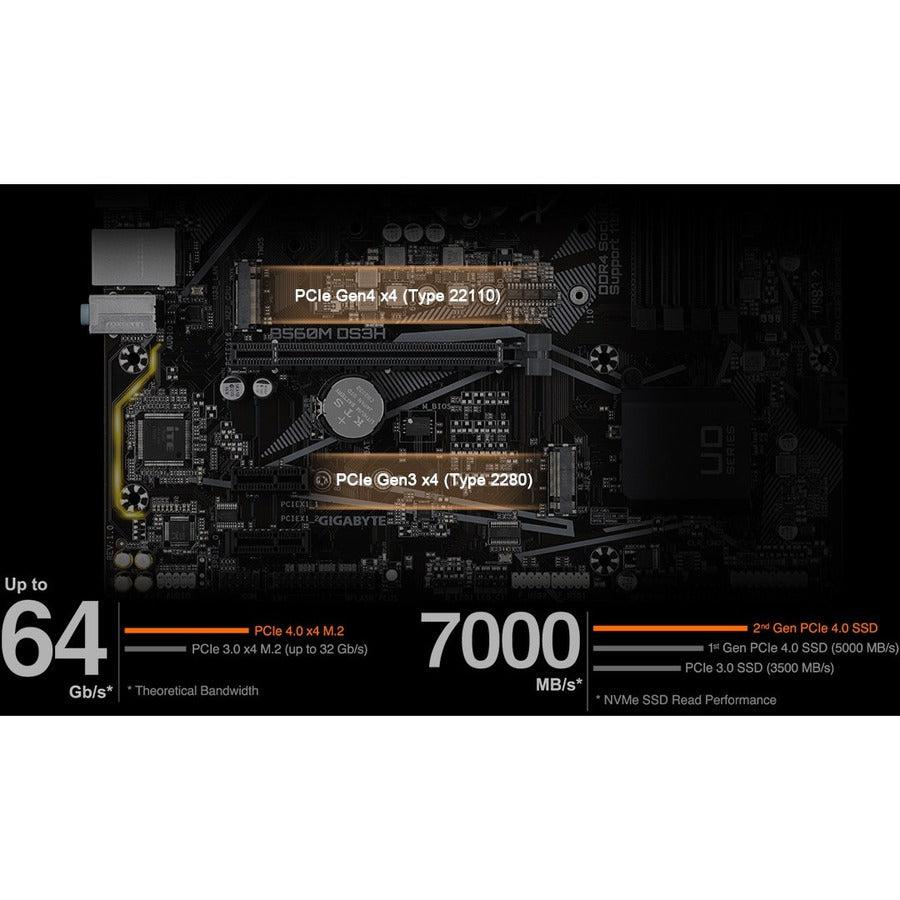

Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
* PCIe 4.0 support varies by processor installed. Please refer to product spec for further details.
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority for game or data-intensive application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Â
Real-Time Network Monitoring
Â

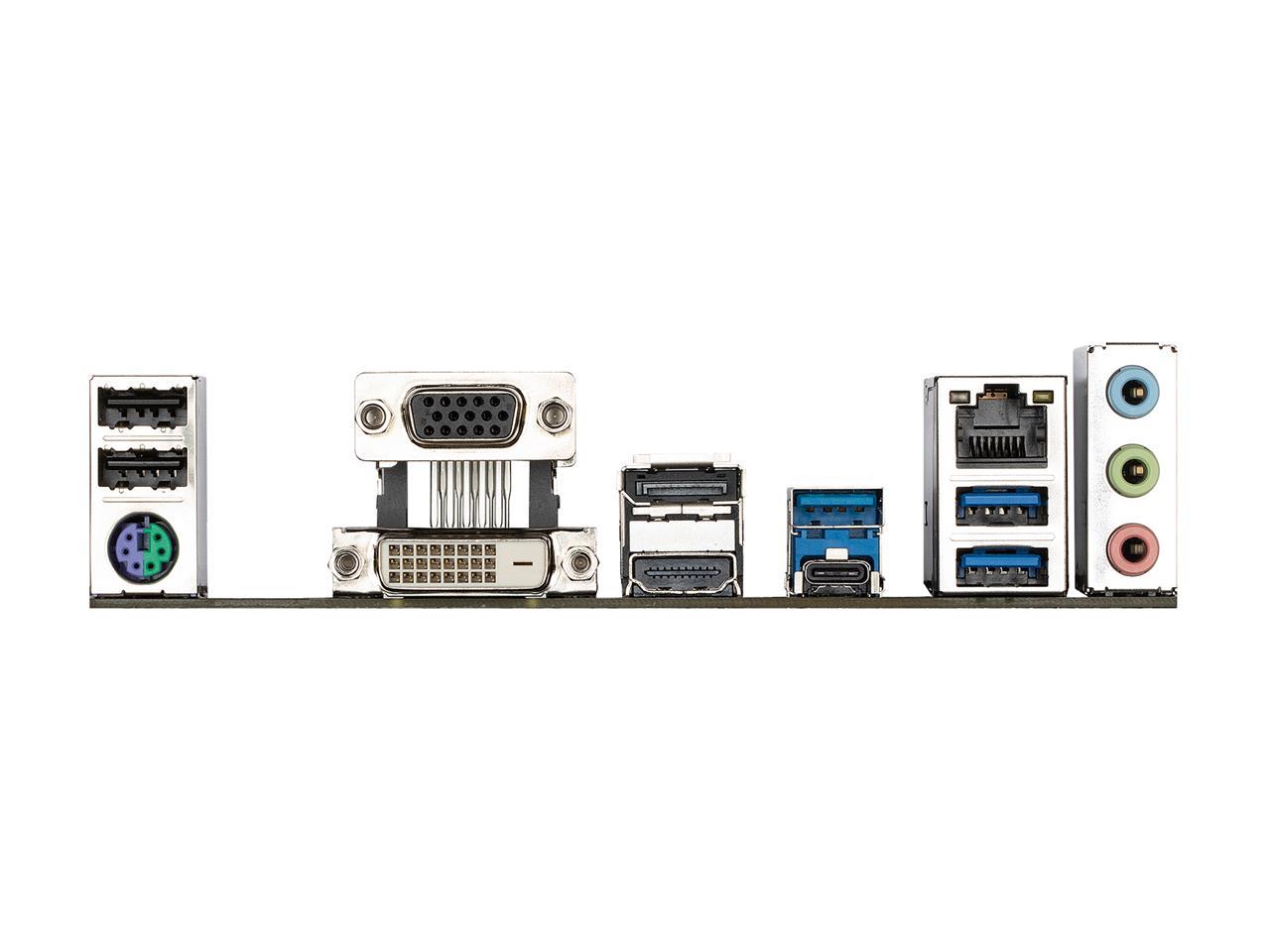

Connecting the Future — USB Type-C
The World's Next Universal Connector
Reversible USB Type-C with USB 3.2 Gen1

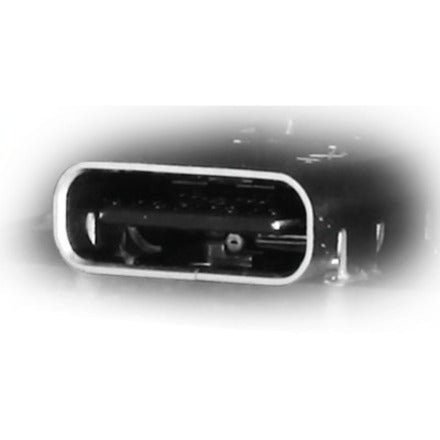

The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel USB 3.2 Gen1 controller, this little port provides the best USB Type-C experience possible.
RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings, and with more to come.
* Addressable LEDs are available only on select Motherboards,. External LED Strips, Addressable LED Strips are not included with Motherboard purchase.
Solid Pin Power Connectors

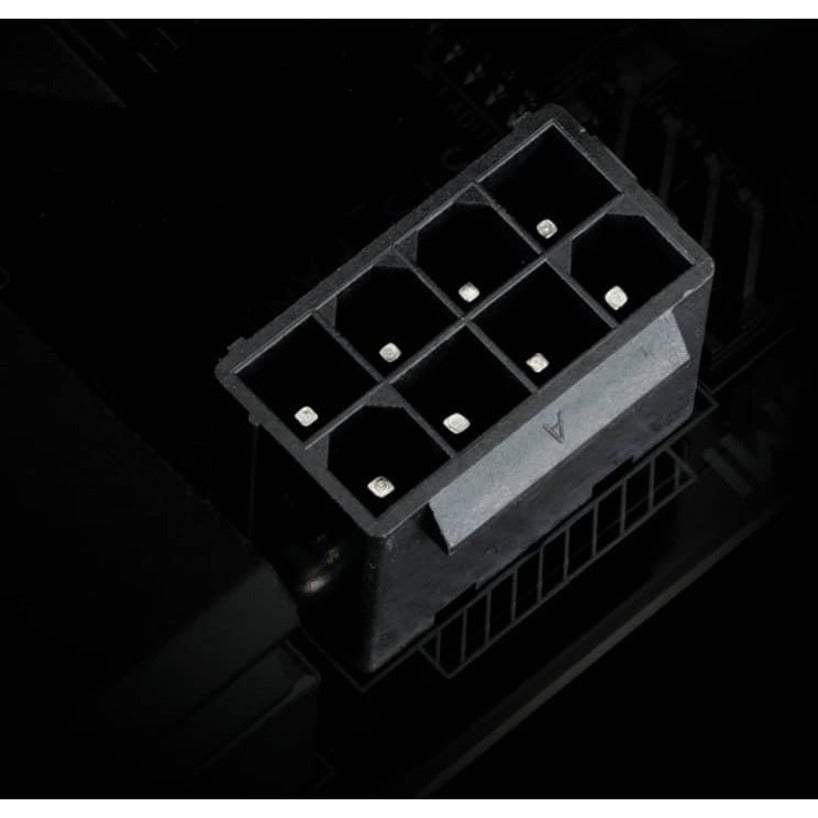

B560 motherboards feature solid plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing CPU, memory and graphics card.

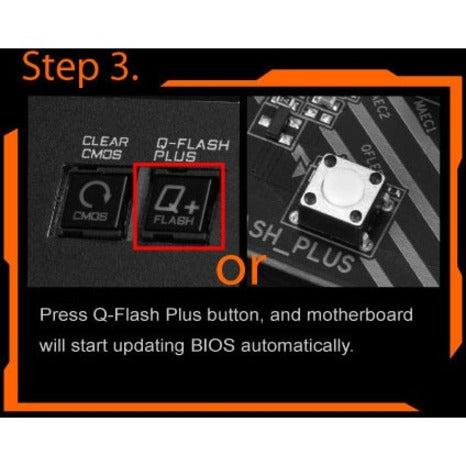

With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

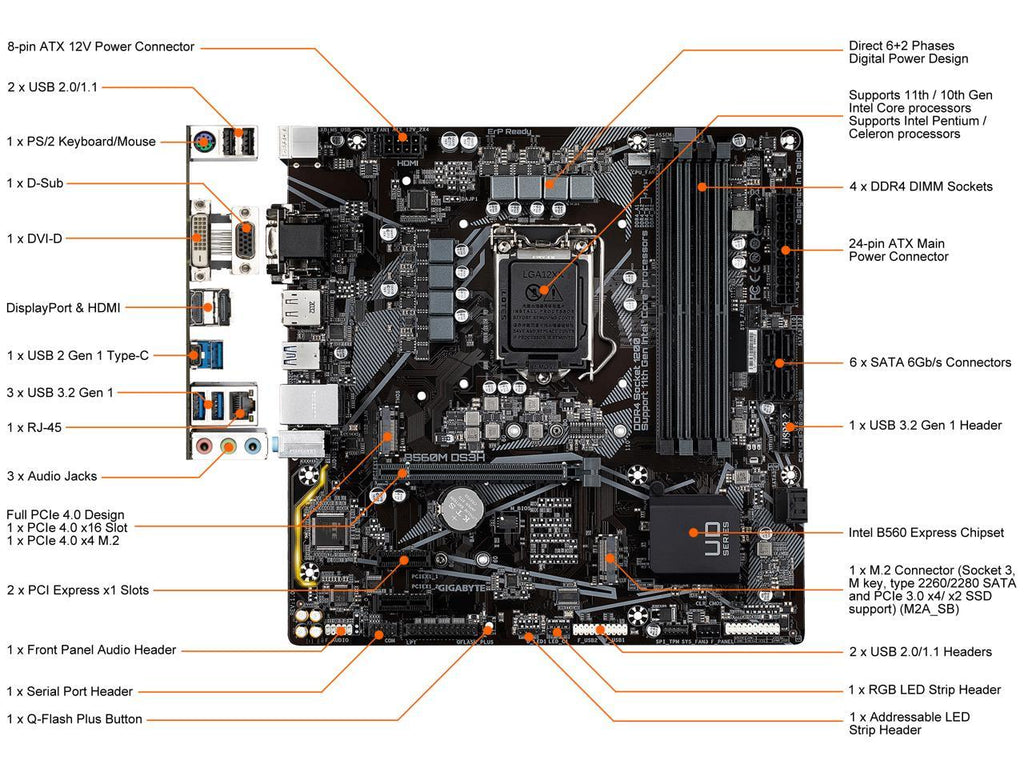

Specifications :
General Information
| Manufacturer | GIGABYTE Technology, Inc |
|---|---|
| Manufacturer Part Number | B560M DS3H |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | B560M DS3H |
| Product Name | Ultra Durable B560M DS3H (Rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 889523027011 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 4 |

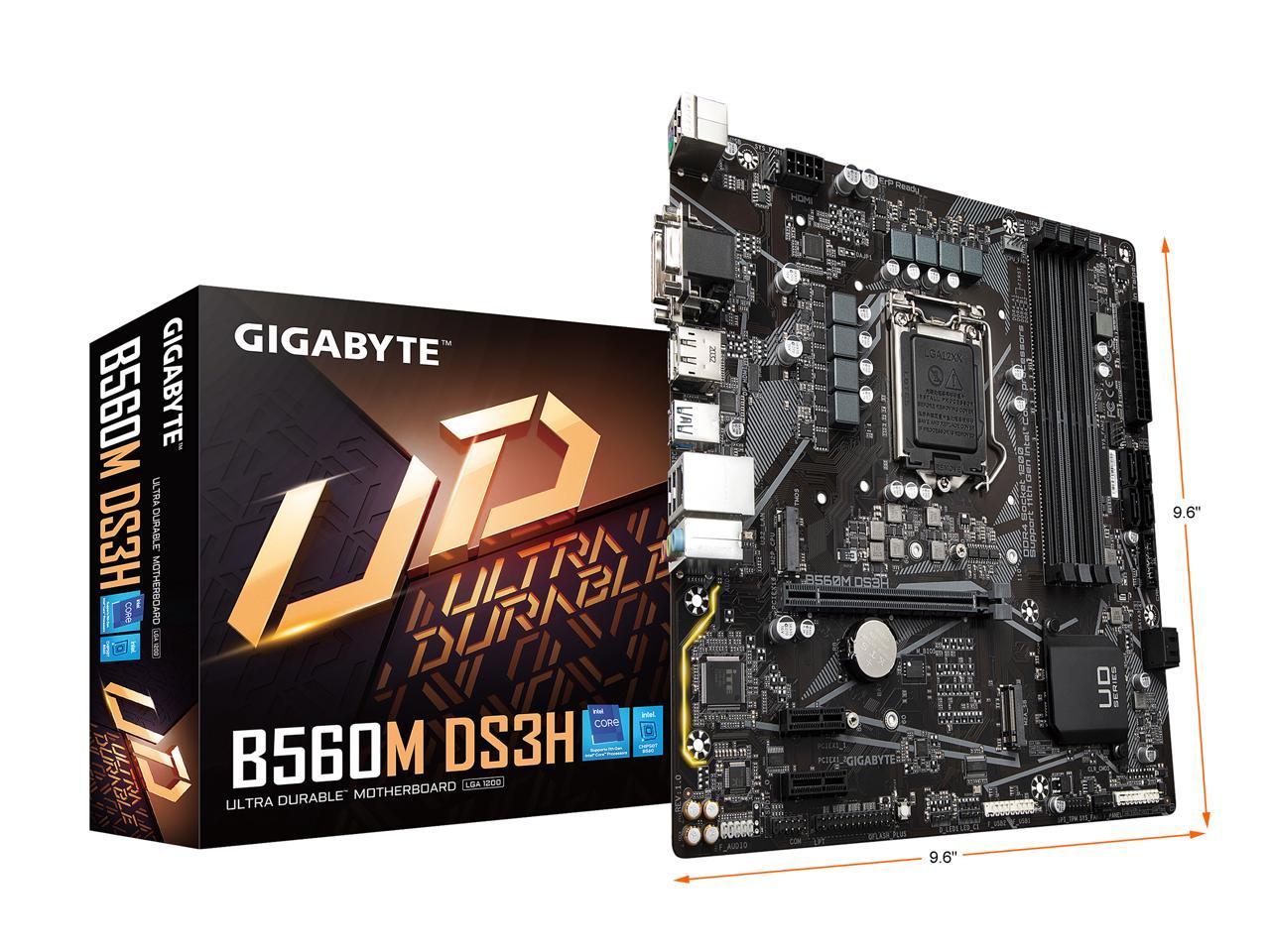

| Width | 9.6" |
|---|---|
| Depth | 9.6" |
| Environmentally Friendly | Yes |
|---|
