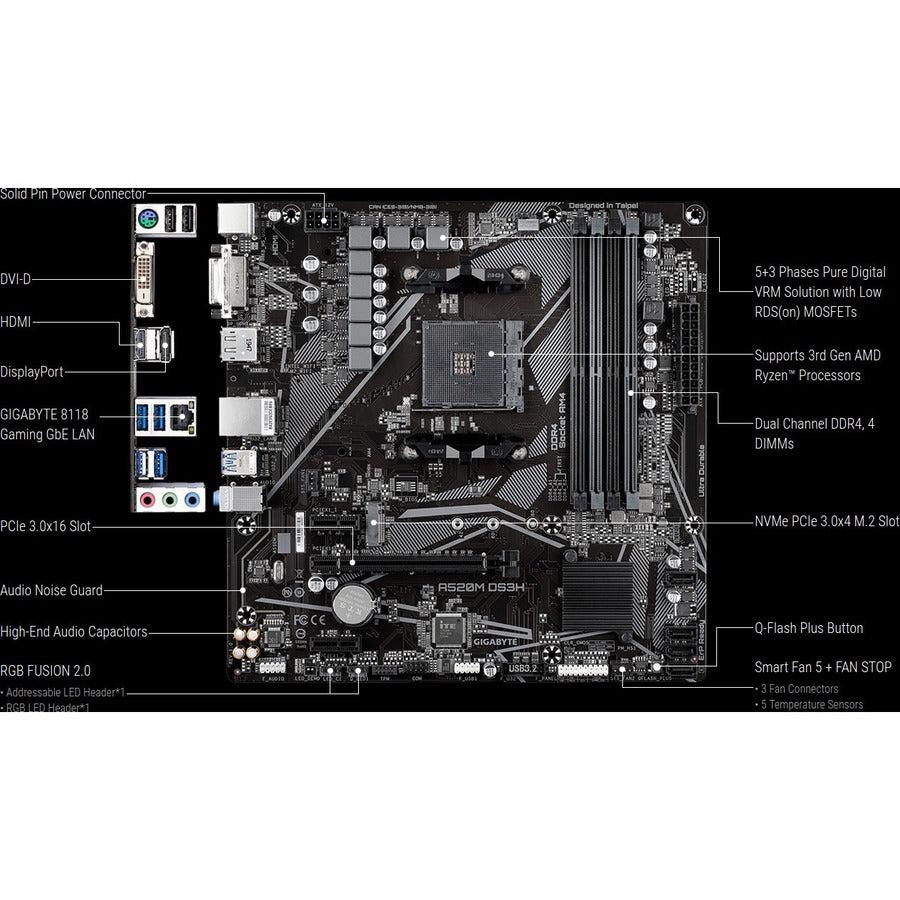

- Support for Ryzen 5000 Series with BIOS UPDATE
- Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Dual Channel DDR4, 4 DIMMs

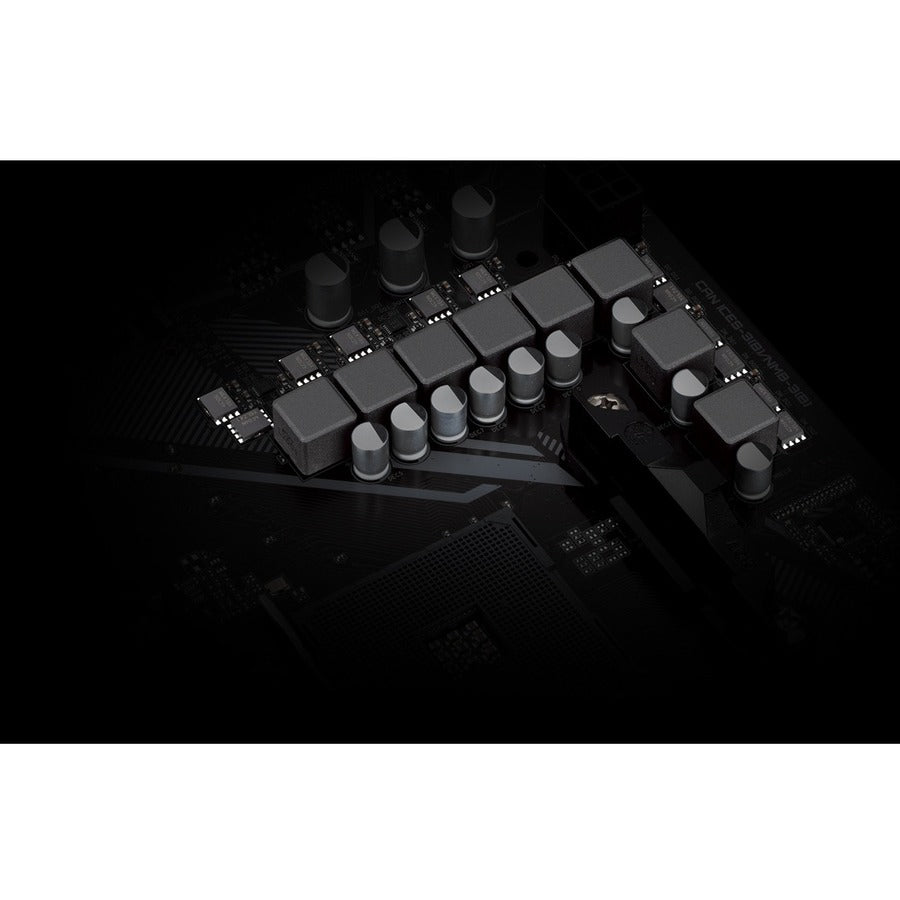

- 5+3 Phases Digital PWM
- 1 x PCIe 3.0 x16 Slot
- 1 x NVMe PCIe 3.0 x4 M.2 Slot
- ALC887 Audio Codec
- Blazing Fast 1GbE LAN
- Rear DP, DVI & HDMI Support
- Q-Flash Plus - Easily Flash Your BIOS
- RGB FUSION 2.0
- mATX Form Factor
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

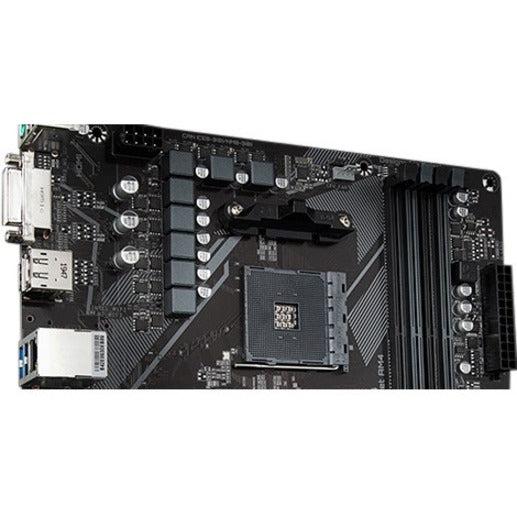

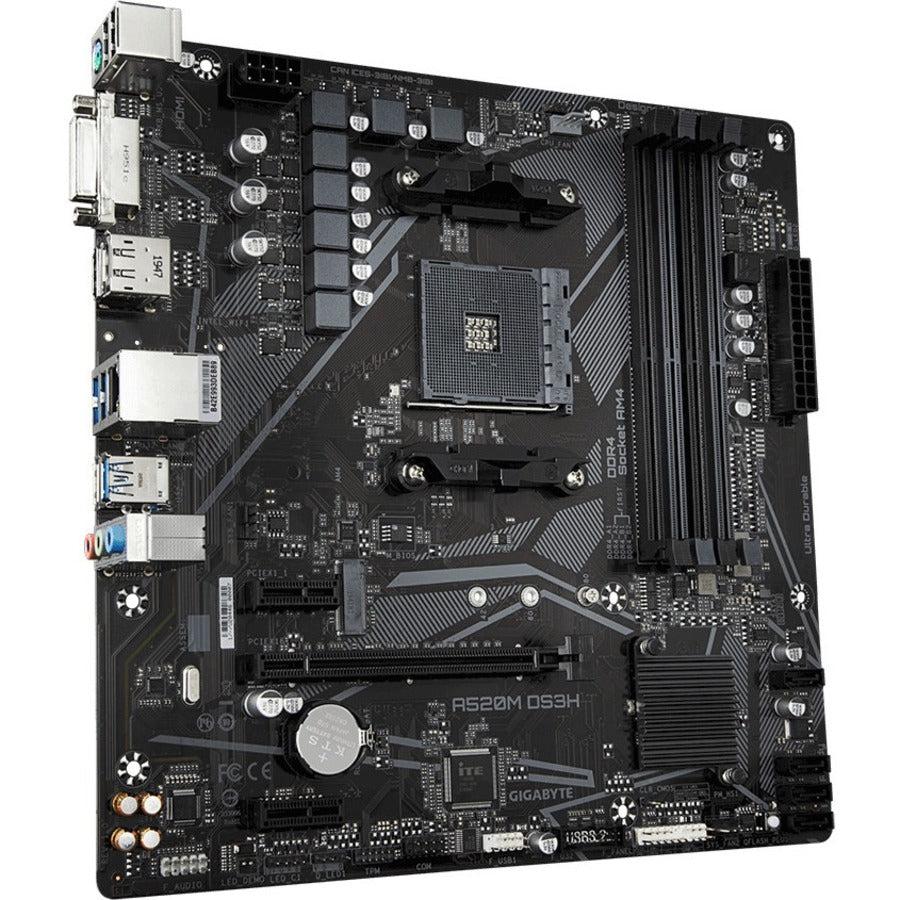

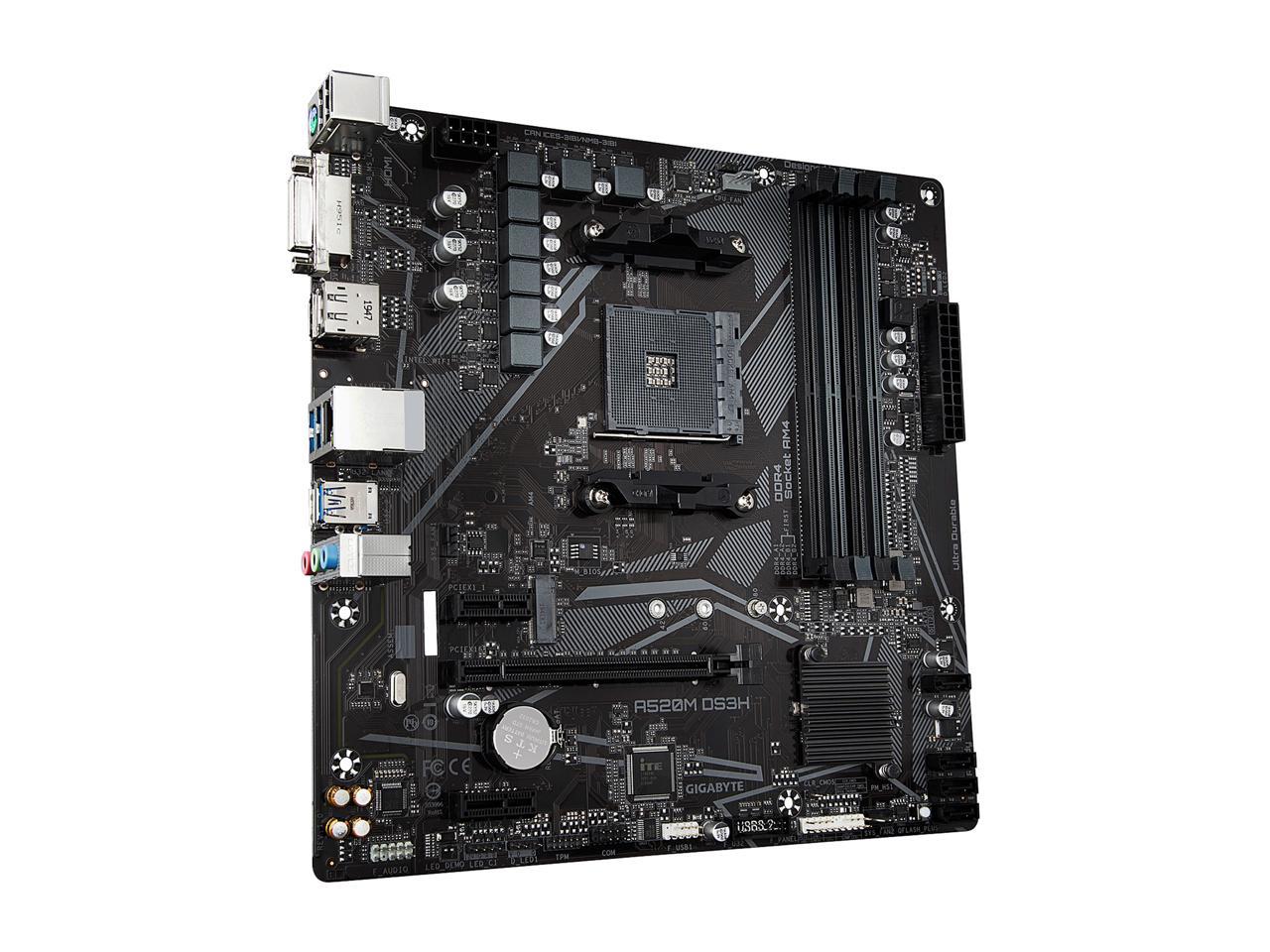

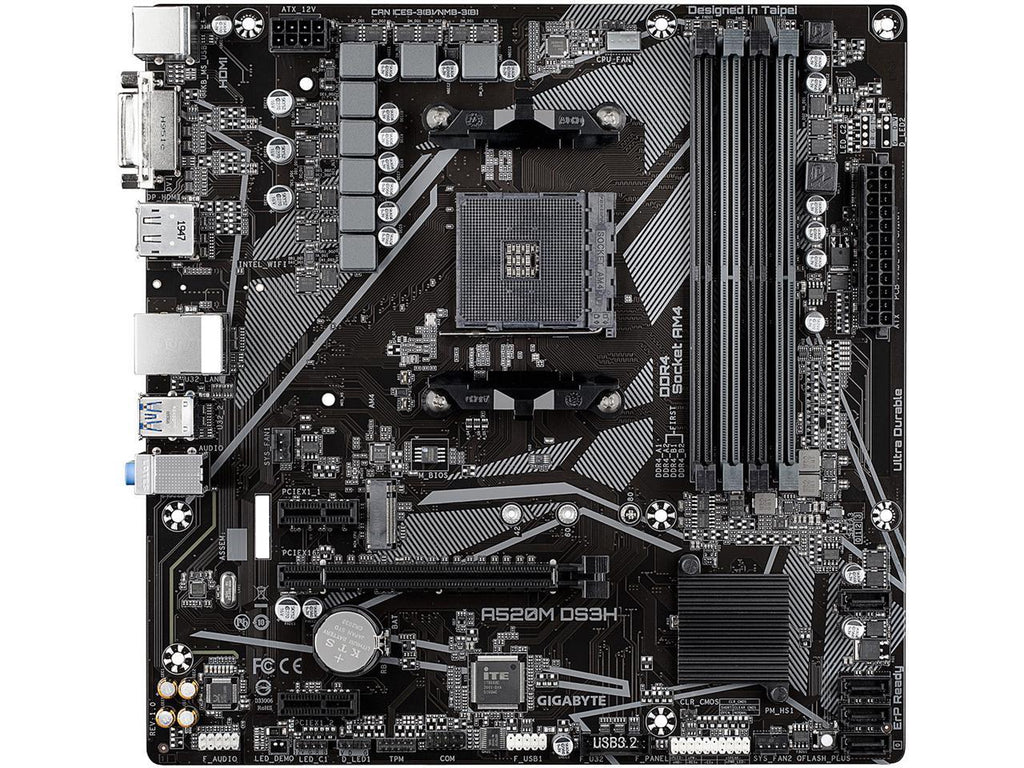

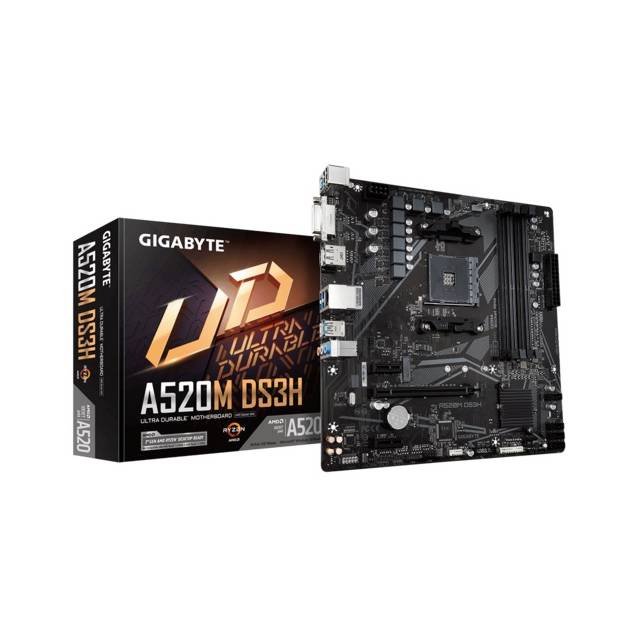

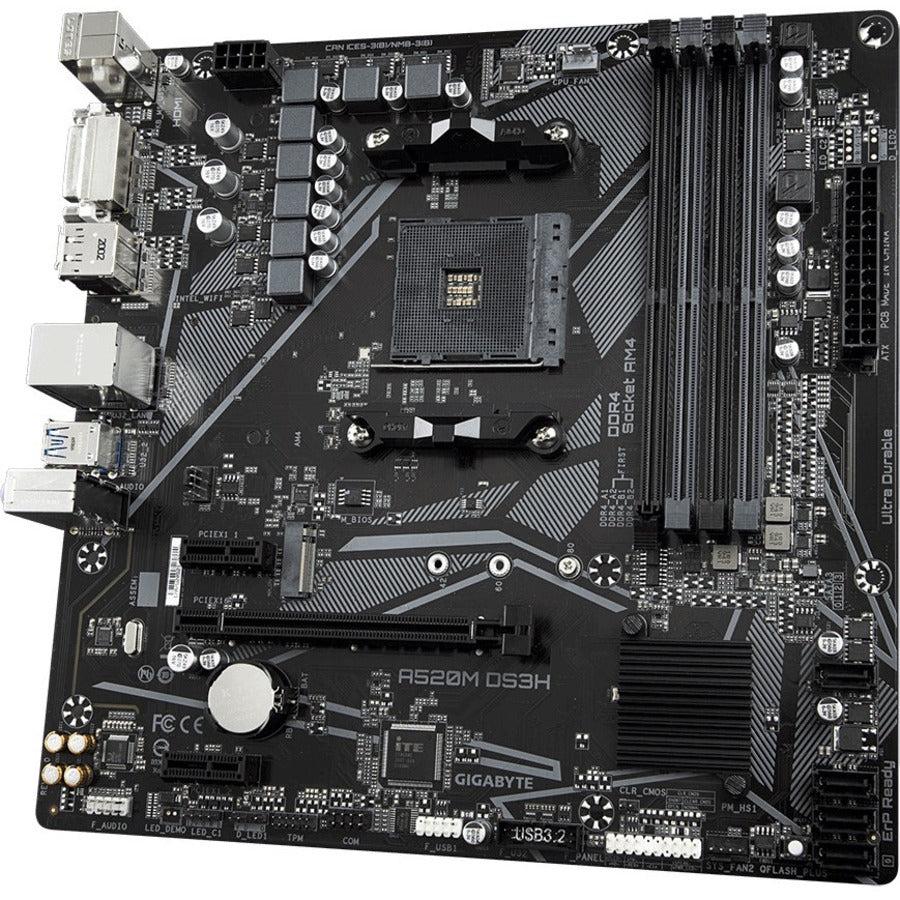

LEARN MORE ABOUT THE GIGABYTE A520M DS3H
Model
| Brand |
GIGABYTE |
| Model |
A520M DS3H |
Supported CPU
| CPU Socket Type
|
AM4 |
| CPU Type |
AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list. |
Chipsets
| Chipset
|
AMD A520 |
Memory
| Number of Memory Slots |
4×288pin |
| Memory Standard |
3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules |
| Maximum Memory Supported |
128GB |
| Channel Supported
|
Dual Channel |
Expansion Slots
| PCI Express 3.0 x16
|
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 |
| PCI Express x1 |
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
Storage Devices
| SATA 6Gb/s
|
4 x SATA 6Gb/s |
| M.2 |

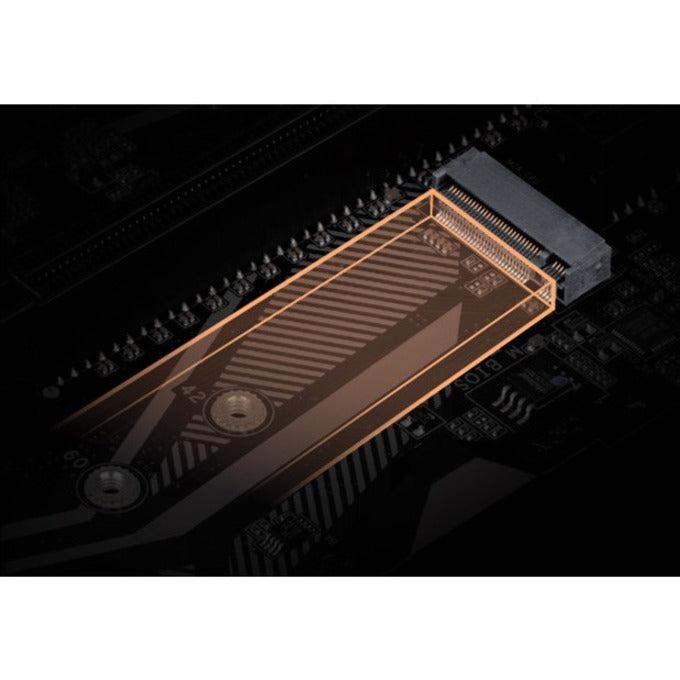

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| SATA RAID |
0/1/10 |
Onboard Video
| Onboard Video Chipset
|
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16GB |
Onboard Audio
| Audio Chipset
|
Realtek ALC887 |
| Audio Channels
|
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
Onboard LAN
| LAN Chipset |
Realtek GbE LAN chip |
| Max LAN Speed |
10/100/1000Mbps |

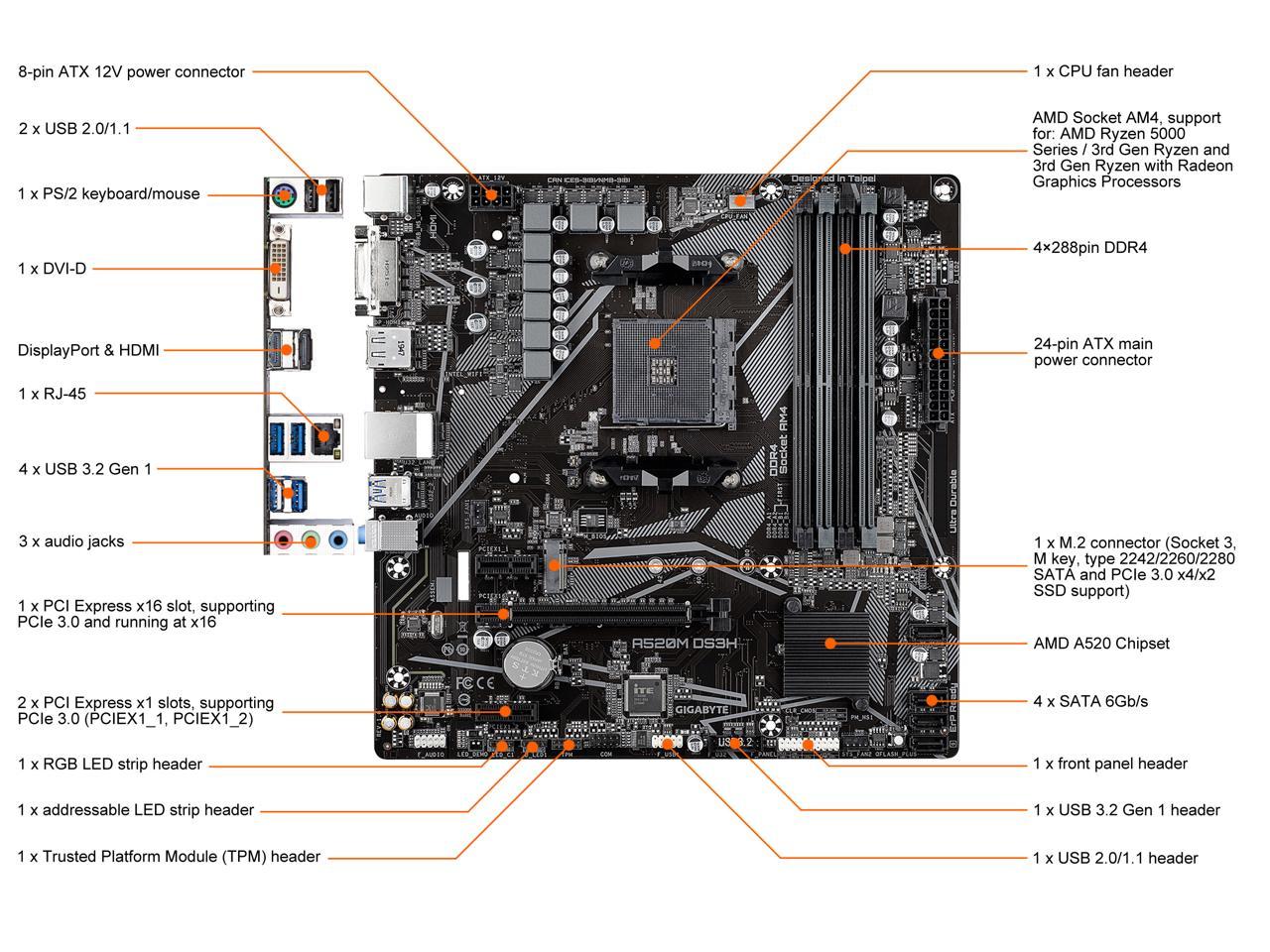

Rear Panel Ports

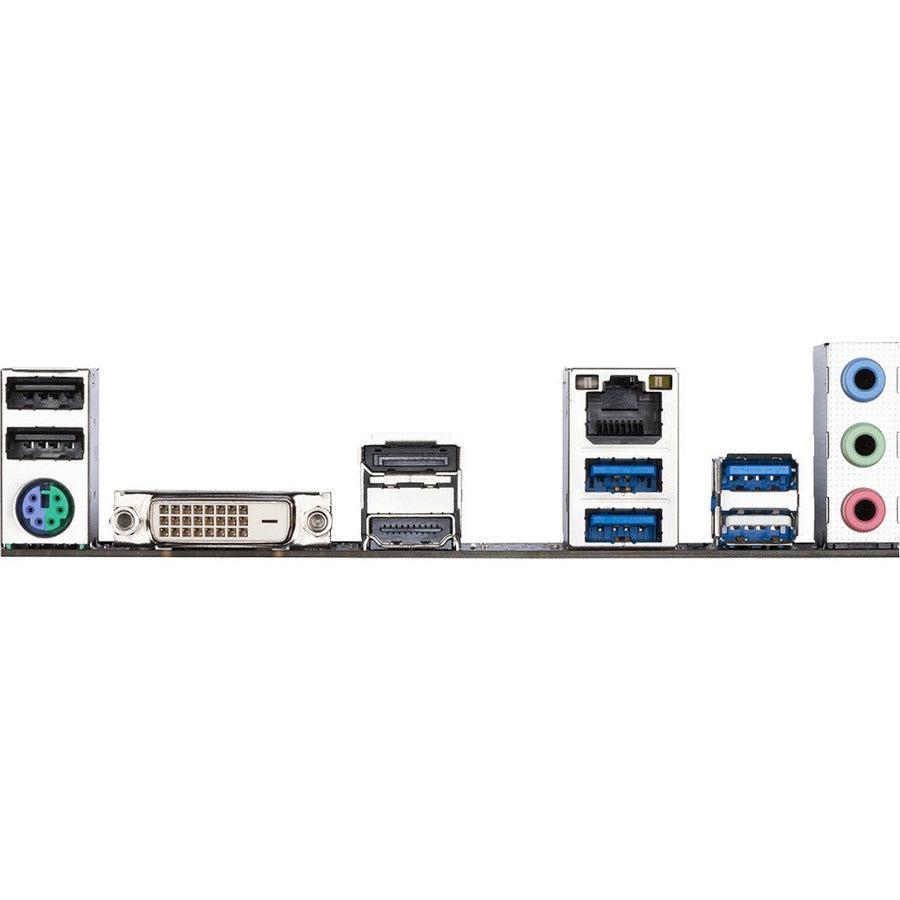

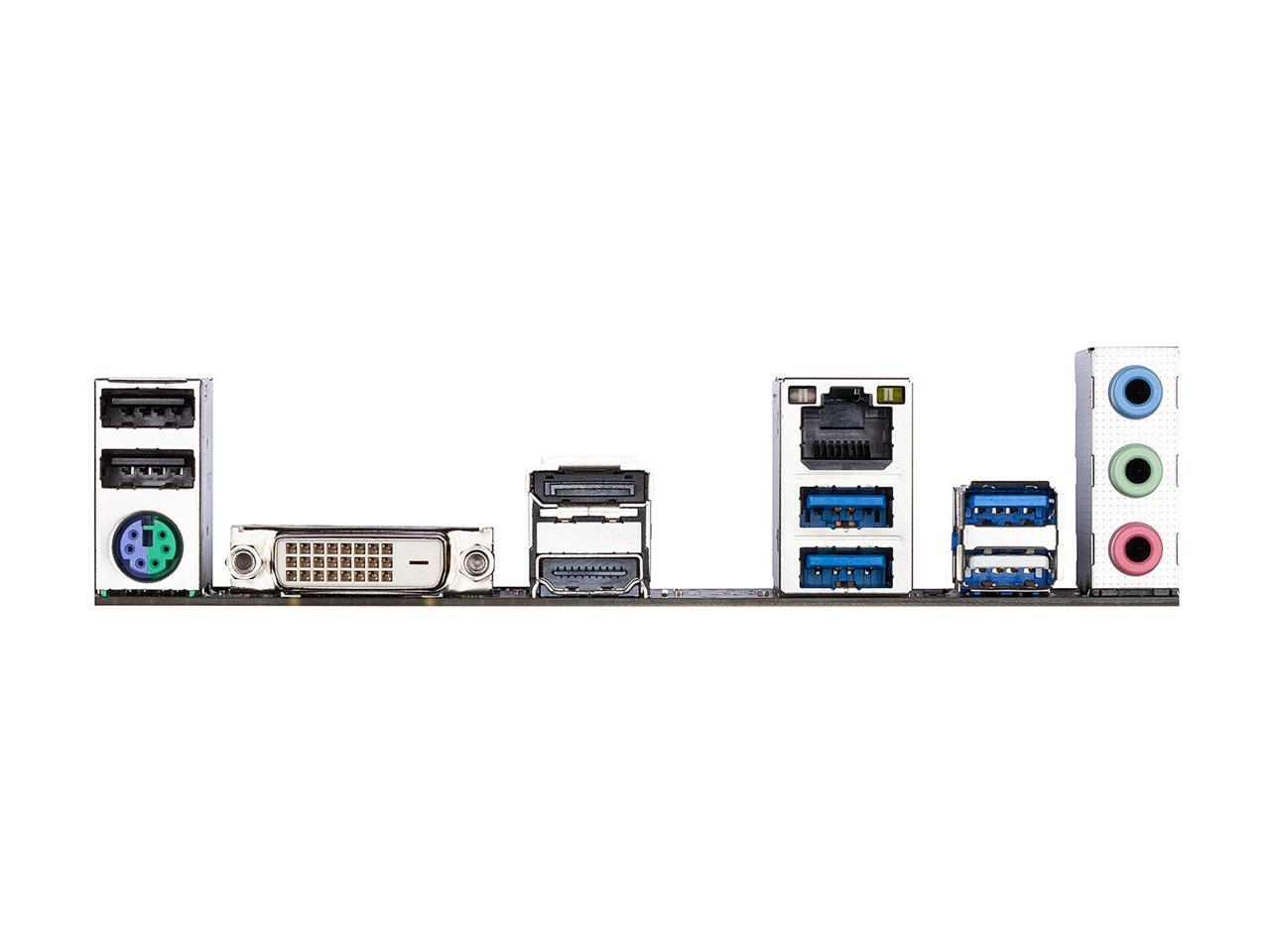

| Back I/O Ports |
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
Internal I/O Connectors
| Onboard USB |
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header |
| Other Connectors |
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button |
Physical Spec
| Form Factor |
Micro ATX |
| LED Lighting |
RGB |

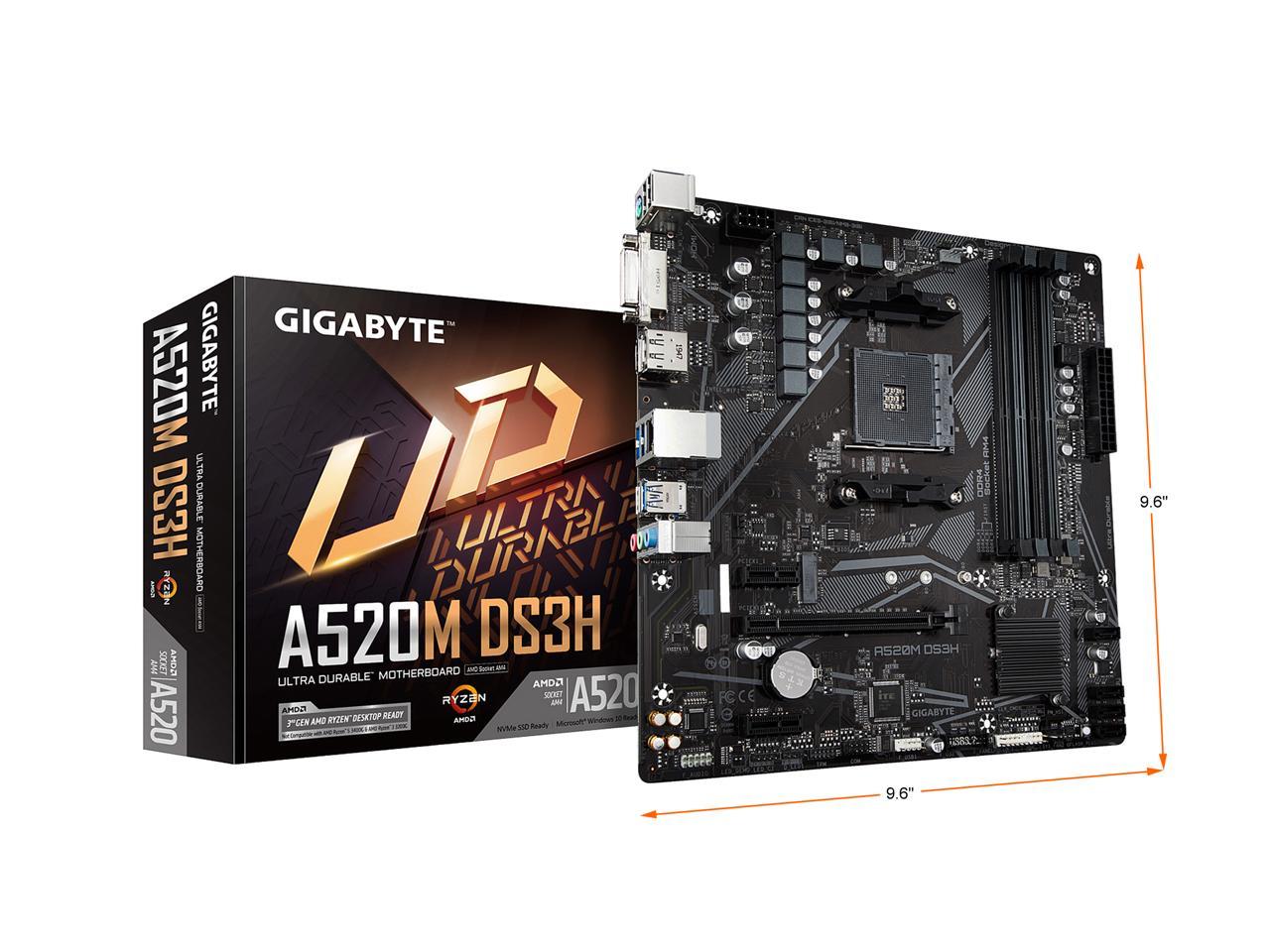

| Dimensions (W x L) |
9.6" x 9.6" |
| Power Pin |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
Windows 11 Compatibility
| Windows 11 |
Supported |
Features
| Features |
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System:
Support for Windows 10 64-bit |
