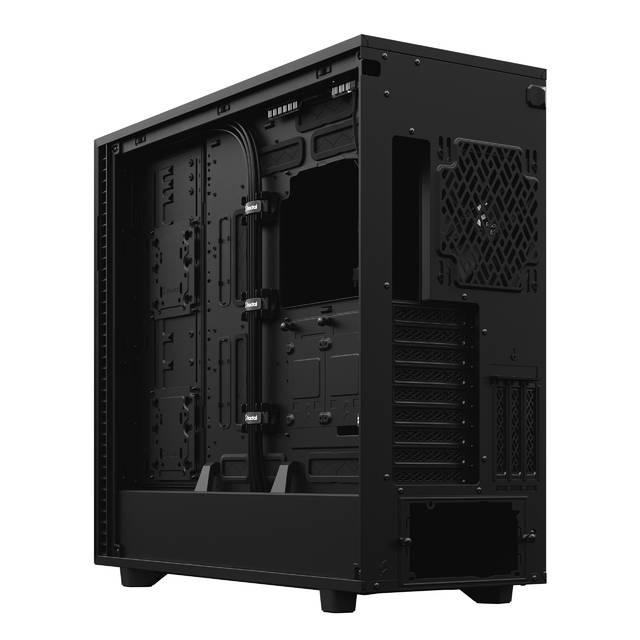

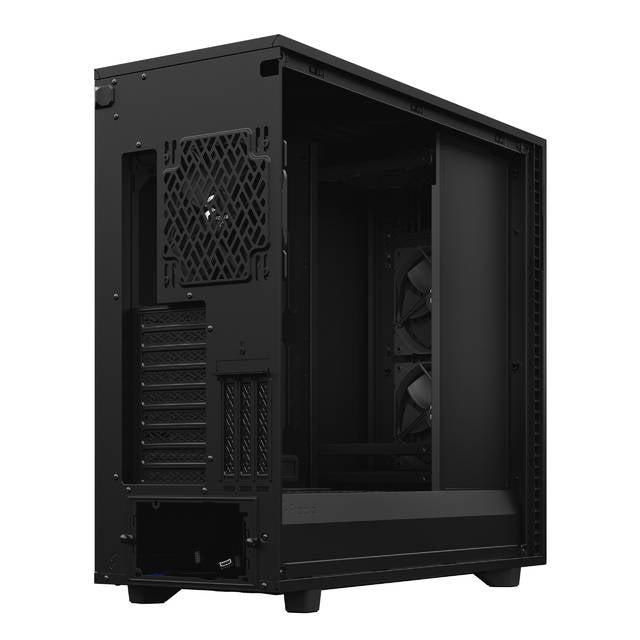

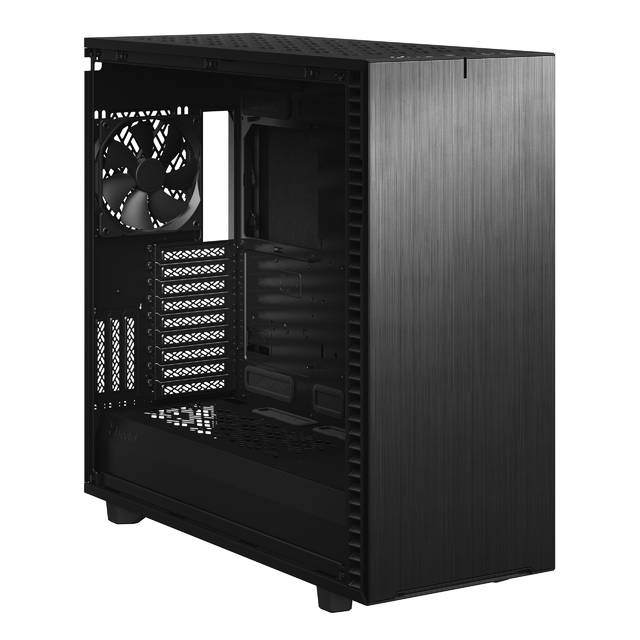

Name: Fractal Design Define 7 Xl Black Tg Light Tint /Brushed Aluminum/Steel E-Atx Silent Modular Tempered Glass Window Full Tower Computer Case
Brand: Fractal Design
SKU: FD-C-DEF7X-02
Price: 268.87 USD
Availability: OutOfStock

Fractal Design Define 7 Xl Black Tg Light Tint /Brushed Aluminum/Steel E-Atx Silent Modular Tempered Glass Window Full Tower Computer Case

Roll over image to zoom in Click on image to zoom

Mfr Part Number: FD-C-DEF7X-02
Features:
- Dual-layout interior easily fits motherboards up to E-ATX and SSI-EEB

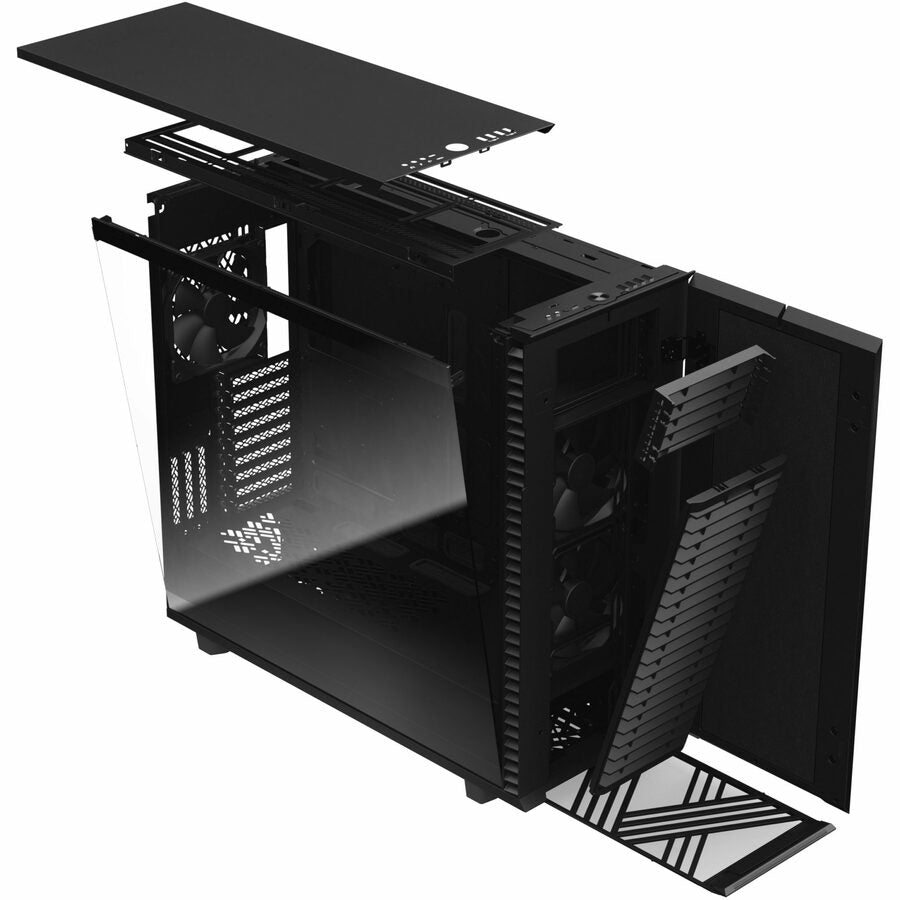

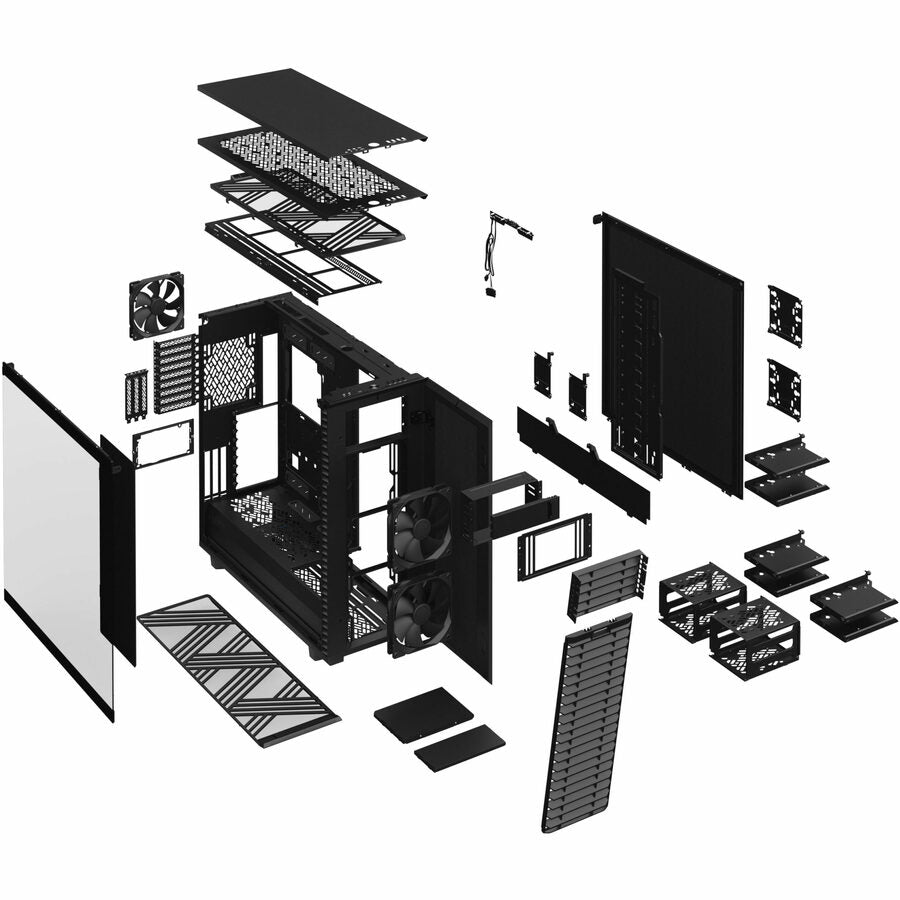

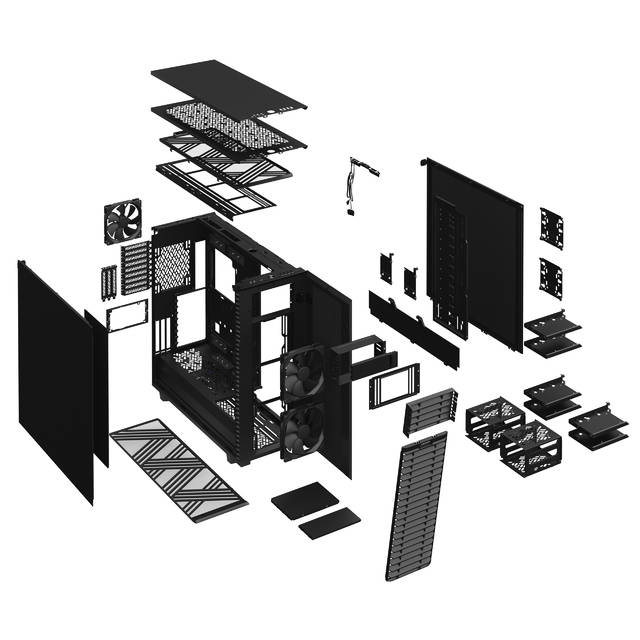

- New chassis design opens to fully expose the interior on three sides
- Supports up to 18 HDDs and 5 SSD mounts in default Storage Layout
- Exceptional water-cooling with radiators up to 480 mm, front or top
- Silence-optimized construction with industrial sound-damping

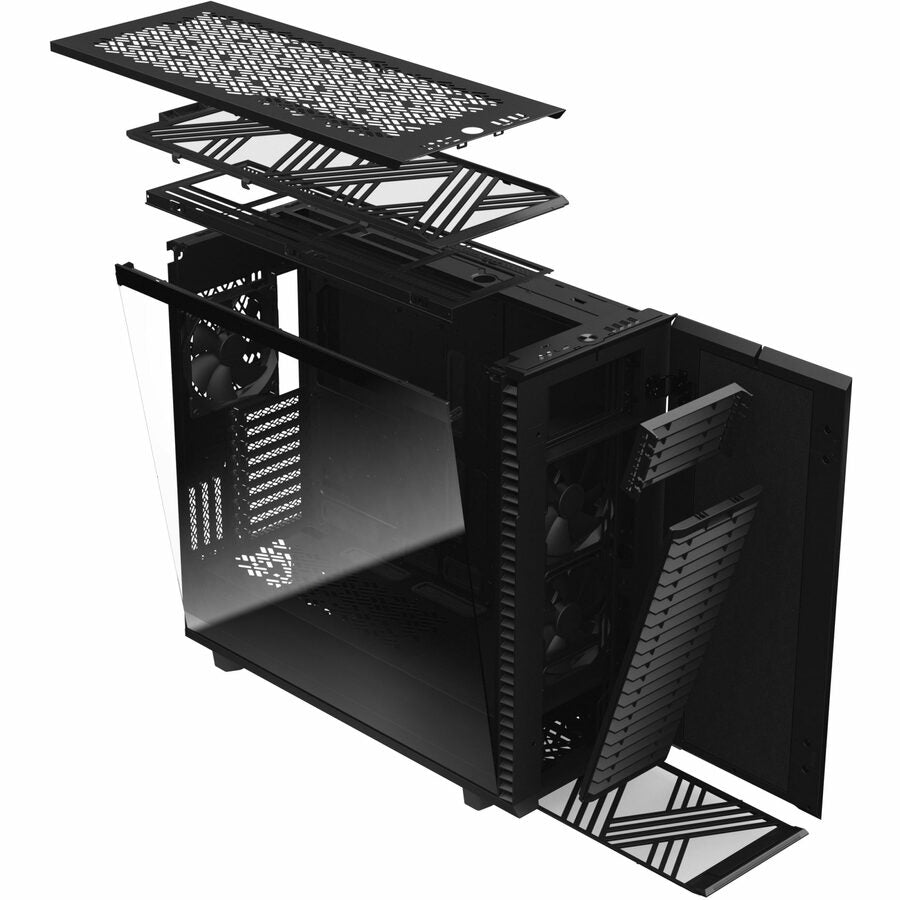

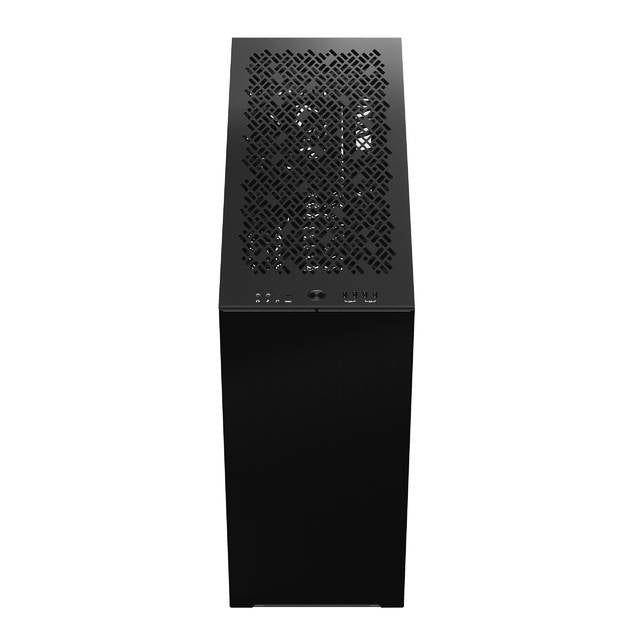

- Top panel effortlessly swaps from solid steel to filtered ventilation

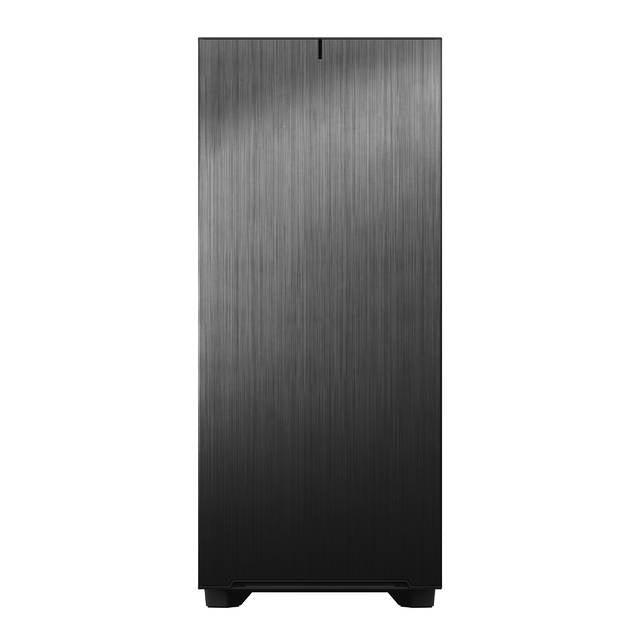

- Aluminum front panel with dual-handed hinges and magnetic latching
- 9 x 140 mm or 11 x 120 mm fan positions
- 3 x vertical slots for use with the Flex VRC riser (sold separately)
- Seamless TG panel with tool-less top-latching
Case Type:ATX Full Tower
Color: Black
Material: Steel
With Power Supply: No
Power Supply Mounted: Bottom
Power Supply: ATX
M/B Type: E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Side Panel Window: No
Drive Bays:
- External Bay: 2x 5.25"
- Internal Bay: 8x 3.5" 8 positions total, 2x2.5" 5 positions total

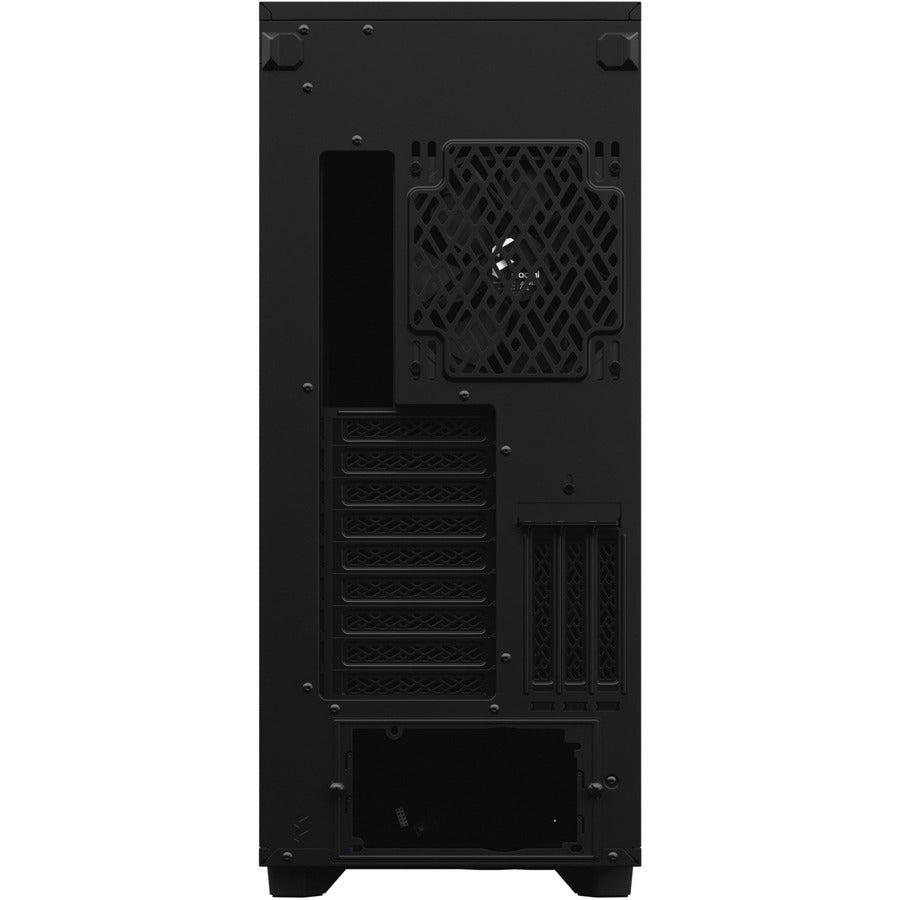

Expansion Slots: 9 + 3 vertical
Front Ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
Fan Options:
- Total fan mounts:11 x 120 mm or 9 x 140 mm
- Front: 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
- Top: 4 x 120 mm or 3 x 140 mm
- Rear: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
- Bottom: 2 x 120/140 mm
Radiator Options:
- Front: Up to 480/420 mm
- Top: Up to 480/420 mm
- Bottom: Up to 240/280 mm
- Rear: 120 mm
Dimensions & Weight:
- Max GPU Length: 549 mm
- Max CPU Cooler Height: 185 mm
- Max PSU Length: 250 mm (with HDD cage installed)
- Case Dimensions (LxWxH): 604 x 240 x 566 mm;590 x 240 x 548 mm w/o feet/protrusions/screws
- Weight: 16.64 kg
- Package Dimensions (LxWxH): 646 x 357 x 708 mm
- Package Weight: 18.84 kg

General Information

Manufacturer	Fractal Design
Manufacturer Part Number	FD-C-DEF7X-02
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Define 7 XL
Product Name	Define 7 XL Black TG Light Tint
Product Type	Computer Case
UPC	843276102050

Total Number of USB Ports	5

Product Color	Black
Height	22.3"
Width	9.4"
Depth	23.8"
Weight (Approximate)	36.68 lb

Miscellaneous

Package Contents	Define 7 XL Black TG Light Tint Accessory Box User Manual Ventilated Top Panel ODD Bracket ODD Bay Cover 2 x HDD/SSD Trays

Warranty

Limited Warranty	2 Year

Fractal Design Define 7 Xl Black Tg Light Tint /Brushed Aluminum/Steel E-Atx Silent Modular Tempered Glass Window Full Tower Computer Case

Description

Fractal Design Define 7 Xl Black Tg Light Tint /Brushed Aluminum/Steel E-Atx Silent Modular Tempered Glass Window Full Tower Computer Case
