Description :
- Mfr Part Number: FD-C-DEF7A-05
-
Features:
- Dual-layout interior easily fits motherboards up to 285 mm E-ATX
- New chassis design opens to fully expose the interior on three sides
- Impressive water-cooling with support for radiators up to 420mm
- Supports up to 14 x 3.5 HDDs and 4 x 2.5 SSDs in Storage Layout
- Silence-optimized construction with industrial sound-damping
- Top panel effortlessly swaps from sound dampened solid steel to filtered ventilation

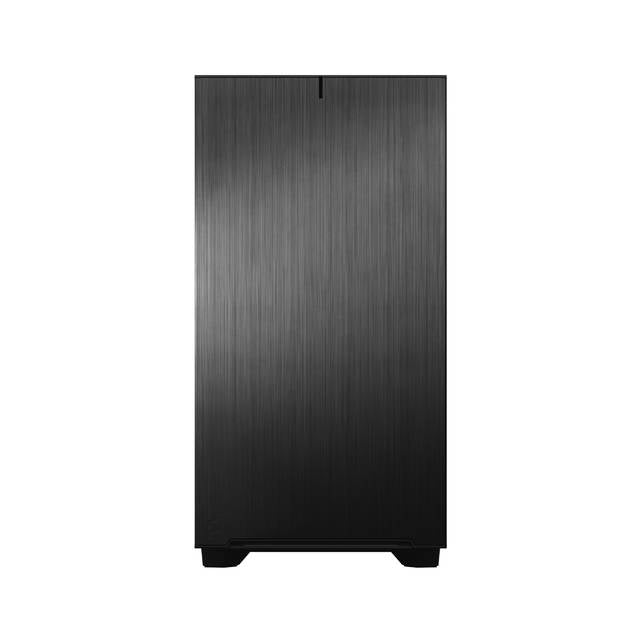

- Aluminum front panel with dual-handed hinges and magnetic latching
- 9 x 140/120mm fan positions with 3 x Dynamic X2 GP-14 fans included

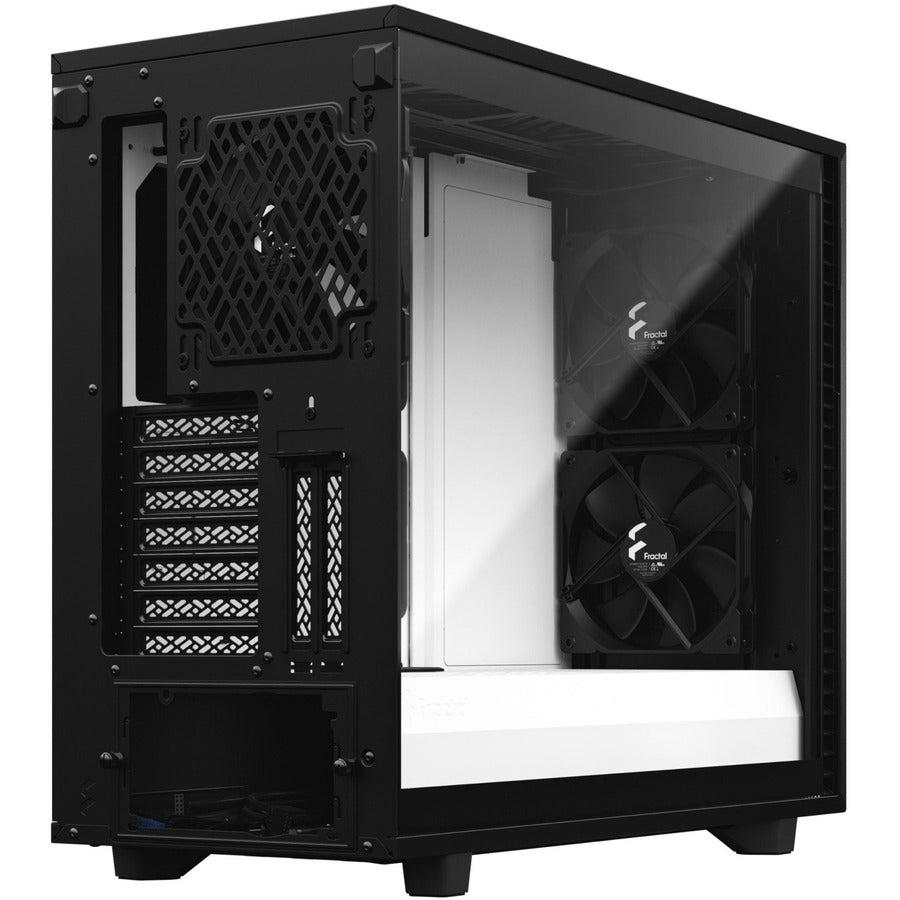

- Seamless TG panel with tool-less top-latching
- Case Type:ATX Mid Tower
- Color:Black/White
- Material:Steel
- With Power Supply:No
- Power Supply Mounted:Bottom
- Power Supply:ATX
- M/B Type:E-ATX / ATX / MicroATX / Mini-ITX
- Side Panel Window: yes
-
Drive Bays:
- External Bay:1x 5.25"
- Internal Bay:6x 3.5" 2x2.5"
- Expansion Slots:7 + 2 vertical
- Front Ports:1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
-
Fan Options:
- Total fan mounts: 9 x 120/140 mm
- Front:3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
- Top:3 x 120/140 mm
- Rear:1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
- Bottom:2 x 120/140 mm
-
Radiator Options:
- Front: Up to 360/280 mm
- Top: Up to 360/420 mm
- Bottom: Up to 240/280 mm
- Rear:120 mm
-
Dimensions & Weight:
- Max GPU Length:491 mm
- Max CPU Cooler Height: 185 mm
- Max PSU Length:250 mm (with HDD cage installed)
- Case Dimensions (LxWxH):547 x 240 x 475 mm;533 x 240 x 451 mm w/o feet/protrusions/screws
- Weight:13.45 kg
- Package Dimensions (LxWxH):558 x 363 x 641 mm
- Package Weight: 15.94 kg
Specifications :
General Information
Manufacturer | Fractal Design |
---|---|
Manufacturer Part Number | FD-C-DEF7A-05 |
Manufacturer Website Address | http://www.fractal-design.com |
Brand Name | Fractal Design |
Product Line | Define 7 |

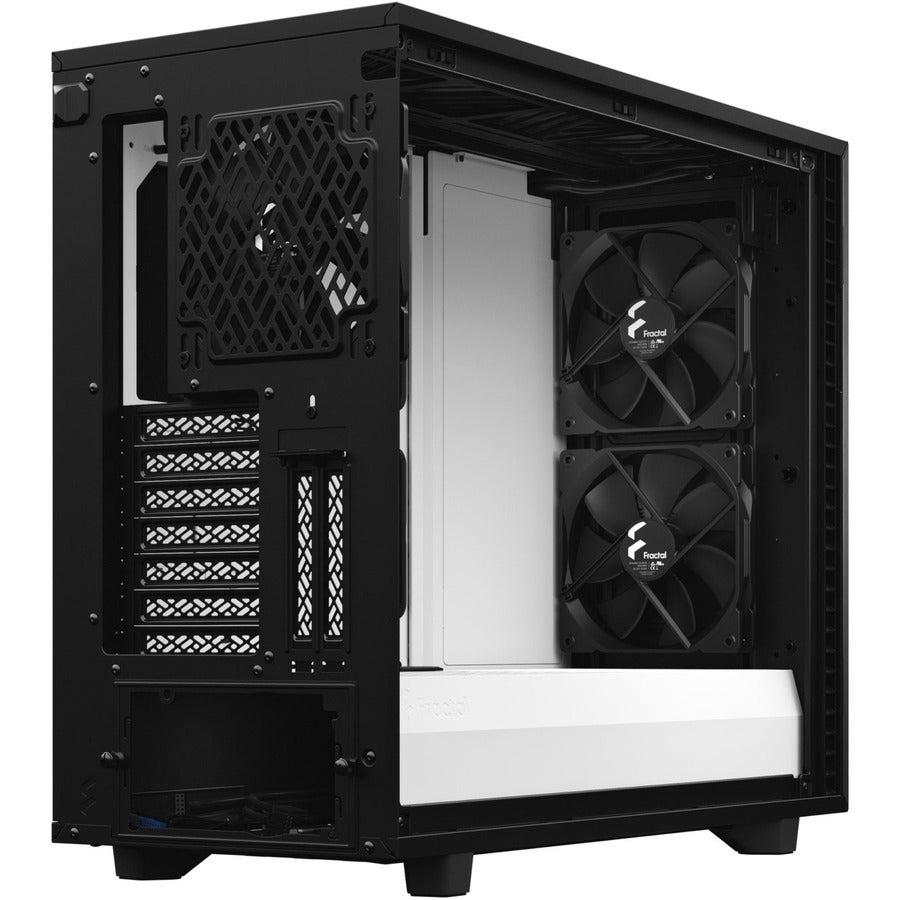

Product Name | Define 7 Black/White TG Clear Tint |
Product Type | Computer Case |
UPC | 843276102234 |
Total Number of USB Ports | 5 |
---|
Product Color | White |
---|---|
Height | 18.7" |
Width | 9.4" |
Depth | 21.5" |
Weight (Approximate) | 29.65 lb |
Package Contents |
|
---|
Limited Warranty | 2 Year |
---|
