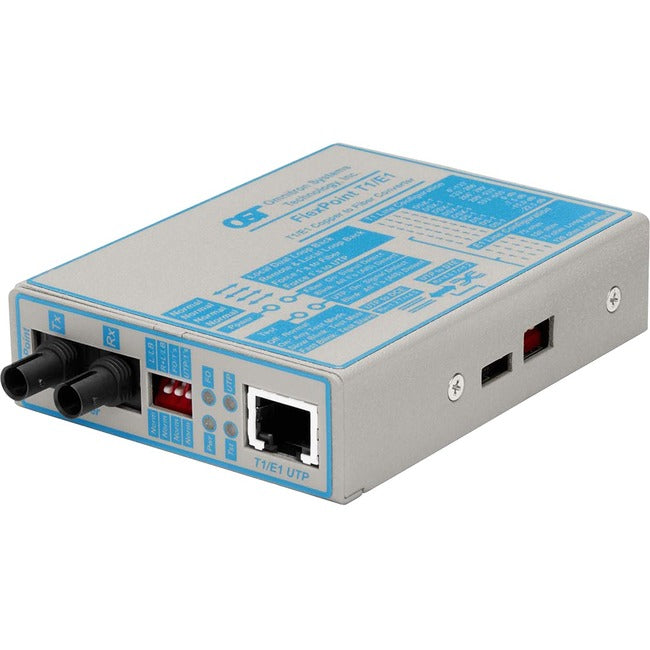

Flexpoint T1/E1 Fiber Media Converter Rj48 St Single-Mode 30Km 4473-0

Description :

FlexPoint T1/E1 Fiber Media Converter RJ48 ST Single-Mode 30km

The FlexPoint T1/E1 Copper to Fiber Media Converter is a twisted pair to fiber media converter and T1/E1 distance extender. It supports ANSI, AT&T, ITU and ETSI standards and AMI, B8ZS and HDB3 line codes. LEDs display the T1/E1 link status, diagnostic modes of operation and line segment errors. A crossover switch on the RJ45/RJ48 port makes it simple to connect the FlexPoint T1/E1 converter to DTE and DCE equipment like PBXs or CSUs and eliminates the need for crossover and custom cables to connect devices. It is equipped with dry relay contacts for connection to alarm equipment.

FlexPoint T1/E1 Copper to Fiber Media Converter can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in the 14-unit FlexPoint Powered Chassis which is available with redundant 110/220V AC or 48V DC power supplies.

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• With Twisted Pair cable, get the desired data transfer rate up to a required distance


• With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link


• Tuck the device out of the way with its Wall Mounting feature

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: T1/E1
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4473-x
Product Name: FlexPoint T1/E1 ST Single-Mode 30km No Power Adapter
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4473-0
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• FlexPoint T1/E1 ST Single-Mode 30km No Power Adapter


• User Manual
