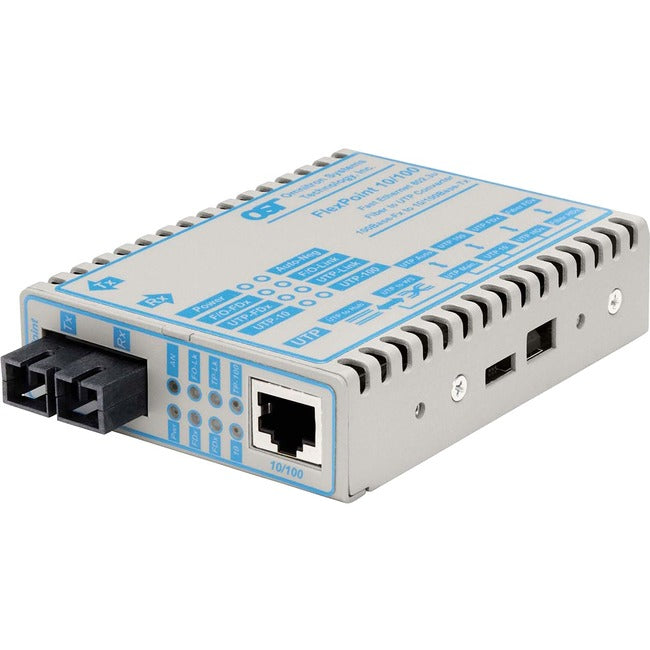

Flexpoint 10/100 Ethernet Fiber Media Converter Rj45 Sc Multimode 5Km 4340-2

Description :

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 SC Multimode 5km
The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.

• Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable


• The Rack-mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 10/100
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4340-x
Product Name: FlexPoint 10/100 SC Multimode 5km Univ. AC Powered
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4340-2
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• FlexPoint 10/100 SC Multimode 5km Univ. AC Powered Univ. Power Supply - 100-240Volt / 50-60Hz


• User Manual
