Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper To 100-Mbps Single Bbx-Lmc100A-Sm-R3

Description :

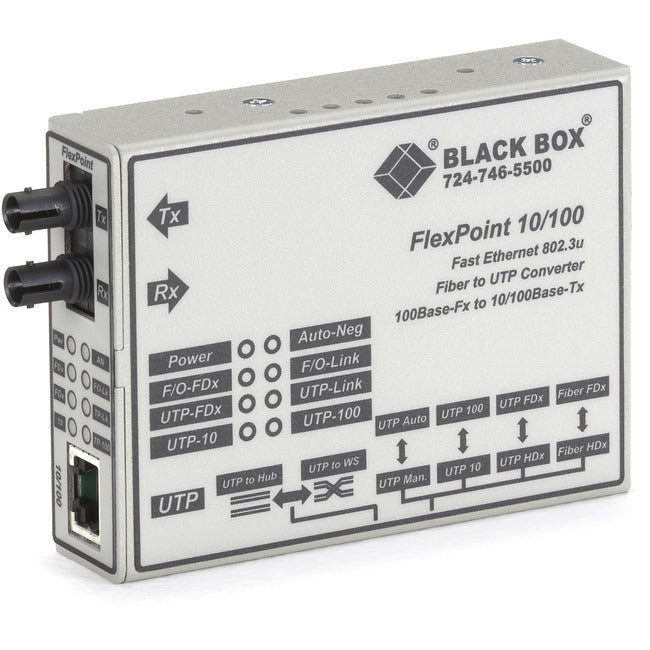

Black Box FlexPoint LMC100A-SM-R3 Tanscevier Media Converter

FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.

The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.

• Metal housing has side vents


• Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit


• Hardware available for mounting converter to a wall or a DIN rail


• Manual override switch for extra control over fiber and UTP ports


• Crossover switch provides easy connections to hubs or switches


• UTP port autosenses 10- or 100-Mbps speeds


• Both UTP and fiber ports support full- and half-duplex operation


• Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards


• Sends data up to 28 kilometers (17.3 mi.)

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Rail-mountable
Manufacturer: Black Box Corporation
Product Model: LMC100A-SM-R3
Product Name: FlexPoint LMC100A-SM-R3 Tanscevier Media Converter
Product Line: FlexPoint
Manufacturer Part Number: LMC100A-SM-R3
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 2 Year
Weight (Approximate): 6.40 oz
