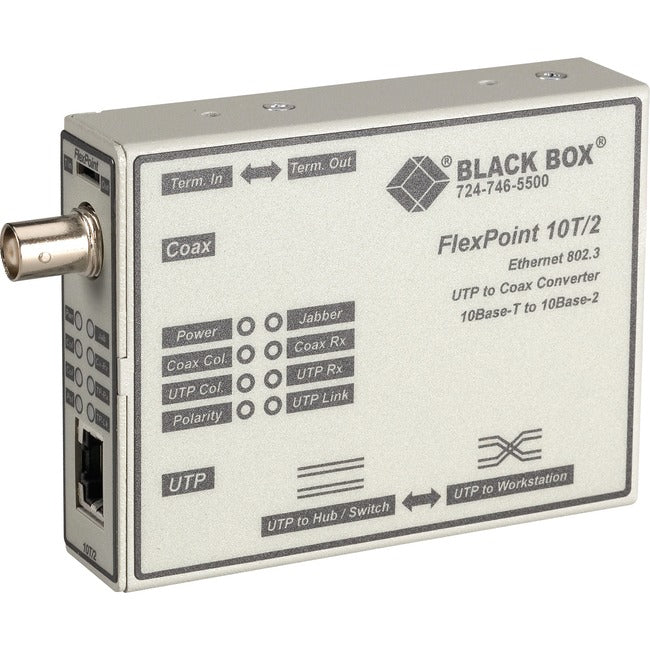

Black Box FlexPoint 10BASE-T to BNC Media Converter LMC210A

Description :

Black Box FlexPoint 10BASE-T to BNC Media Converter

• Supports ThinNet cable to 185 meters (606.9 ft.) and up to 30 stations.
• UTP crossover switch plus automatic polarity detection.
• Switch-selectable ThinNet line termination.
• LEDs display status.
• Hardware available for mounting the converter to a wall or a DIN rail.
• Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.

FlexPoint™ Modular Media Converters from Black Box are versatile and cost-effective standalone media converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. FlexPoint offers a very wide range of converter options, including media converters for legacy systems such as ThinNet and Token Ring. Your choices include:

• Ethernet
• Fast Ethernet
• Gigabit Ethernet
• Token Ring
• UTP
• Single-mode fiber
• Multimode fiber
• ThinNet
• Single-mode to multimode fiber converters
• Long-distance fiber converters
• ATM OC-3
• ATM OC-12
• 10/100 rate converters
• TI/EI Line Drivers

The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the media converters you need now and use them individually. Then, when your LAN grows, mount your media converters on the wall, in the 5-Position Rackmounting Kit, or as modules in the Power Chassis. The Power Chassis holds 14 media converters and a Single or Dual AC or DC Power Supply. Also, be sure to see the rest of the FlexPoint family:

• FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
• FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
• FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A)
• FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
• FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3, etc.)
• FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST, etc.)
• FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A, etc.)
• FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
• FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM, etc.)
• FlexPoint RS-232 to Fiber Converters (ME660A-MST, etc.)

Questions? Contact our FREE Tech Support.

• LEDs display status.


• Switch-selectable ThinNet line termination.


• UTP crossover switch plus automatic polarity detection.


• Supports ThinNet cable to 185 meters (606.9 ft.) and up to 30 stations.


• Connects 10BASE-T devices to ThinNet (coax) devices.

Product Type: Transceiver/Media Converter
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Wall Mountable
Manufacturer: Black Box Corporation
Product Name: FlexPoint 10BASE-T to BNC Media Converter
Product Line: FlexPoint
Manufacturer Part Number: LMC210A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
Weight (Approximate): 6.40 oz
