          Description :

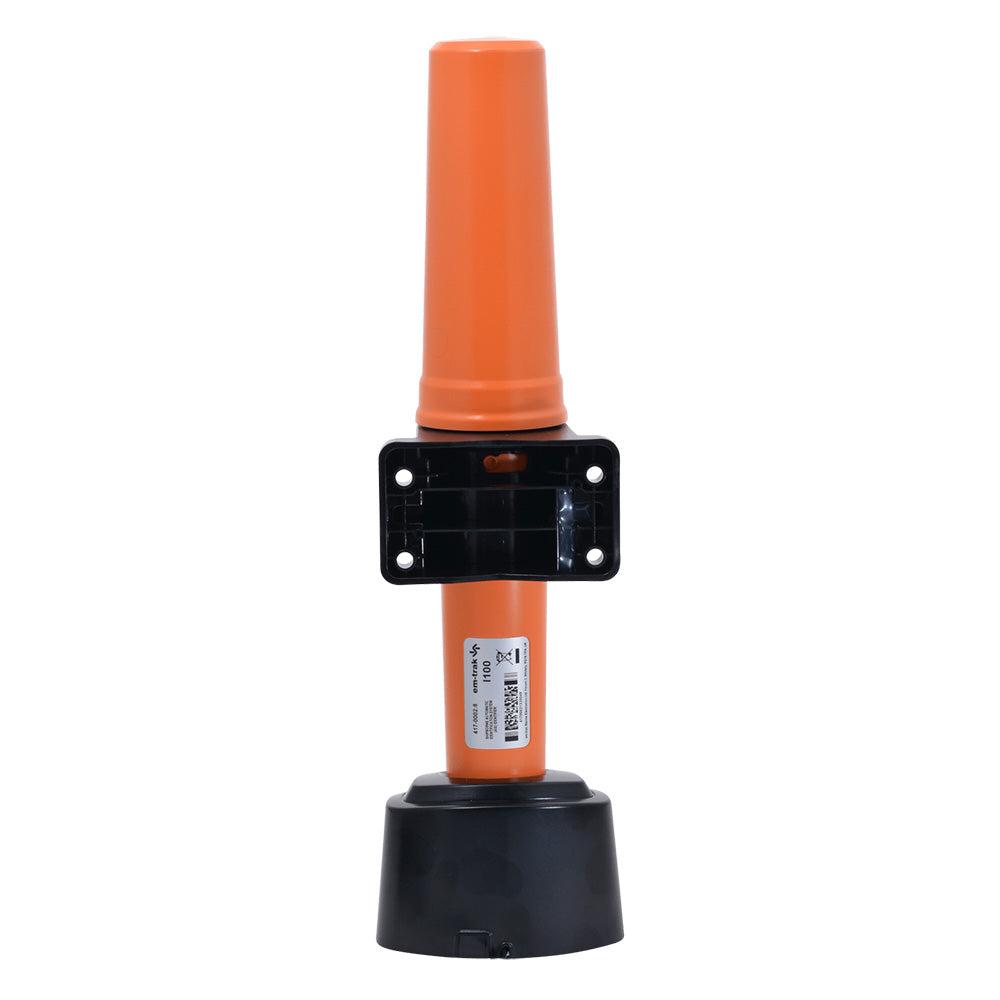

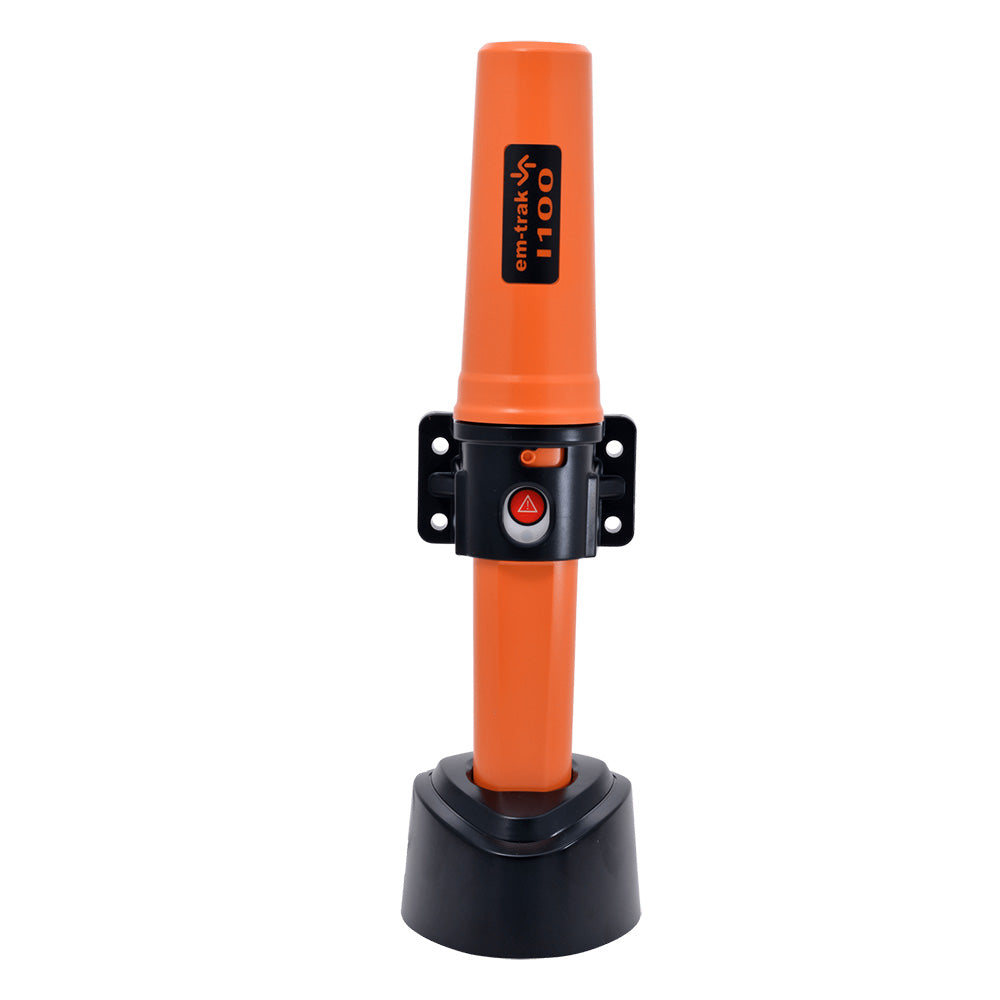

          I100-X Small Vessel Tracker

          The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.

          I100-X can power itself using its own internal rapid recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source such as an engine, battery, or solar, with the battery then acting as a backup.

          I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

          Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

          Features:

          • Certified AIS Class B Transponder
          • 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
          • It takes only 5 hours to completely recharge
          • Rugged IPX8 design ensures the operational performance

          Physical & Environmental Specifications:

          • Size (H x W): 370 x 67 mm
          • Weight: 355g
          • Operating temperature: -25°C to +55°C
          • Storage temperature: -25°C to +70°C
          • Ingress protection: IPx8 (1.1m 30 mins)

          Electrical Specifications:

          • Battery Capacity: 2300mAh
          • Battery Type: 3.7V Li-Ion rechargeable
          • Battery Life (default operating conditions): 120 hours

          Standards Compliance:

          • AIS Standards: IEC 62287-1 Ed. 3.  ITU-R M.1371.5
          • Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
          • Environmental Standards: IEC 60945 Ed. 4
          • GNSS Performance Standards: IEC 61108-1 Ed 2.0

          GNSS:

          • Systems Supported: GPS & GLONASS
          • Channels: 72
          • Time to First Fix from Cold Start: 26s

          VHF Transceiver:

          • VDL Access Scheme: CSTDMA
          • Operating Frequency: 156.025MHz – 162.025MHz
          • Channel Bandwidth: 25kHz
          • Receivers / Transmitters: 1 x transmitter
          • AIS Transmitter Power: 2W (33dBm radiated)

          User Interface:

          • Buttons: SOS
          • Indicators: Status indicator

          Charging Dock:

          • Size (H x W x D): 110mm x 120mm x 78mm
          • Weight: 360g
          • Power Supply: 115V / 240V AC

          Configuration Dock:

          • Size (H x W x D): 110mm x 120mm x 78mm
          • Weight: 360g
          • Power Supply: 115V / 240V AC
          • PC Interface: USB (cable supplied)

          In the Box:

          • 1 x Identifier
          • 1 x Vessel Bracket and a Fixings Pack
          • 1 x Charging Dock

          *NOTE: You will also require a configuration dock product code: 417-0074. This is used to program the unit before deployment.



          Owners Manual View (pdf)

          Specifications :

          General Information

          Manufacturer em-trak
          Manufacturer Part Number 417-0077
          Product Type Marine Safety | EPIRBs
