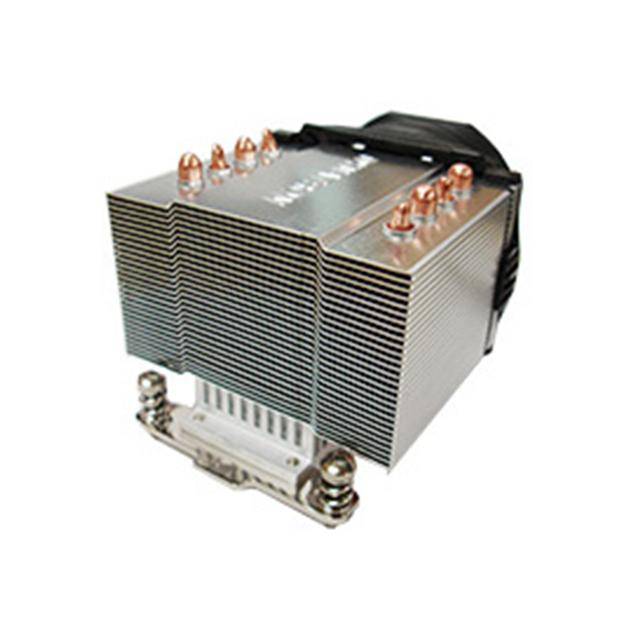

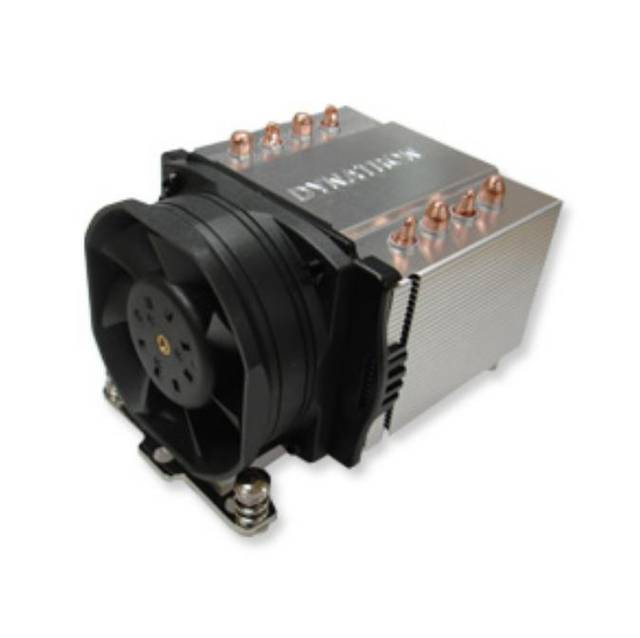

Name: Dynatron R24 2U Server Cpu Fan For Intel Lga2011
Brand: Dynatron
SKU: R24
Price: 39.44 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Mfr Part Number: R24
CPU Application: LGA2011
- Narrow Type, 56 x 94mm mounting pitch
- Supports Intel Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 160 Watts
Material: Aluminum Stacked Fin with Heat Pipes Directly Contact CPU
Fan:
- Rated Speed:
  - At Duty Cycle 0~20%: 1500 10% RPM
  - At Duty Cycle 50%:3500 10% RPM
  - At Duty Cycle 100%: 7000 RPM Min
- Bearing: Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 0~20%: 0.60 W
  - At Duty Cycle 50%: 2.16 W
  - At Duty Cycle 100%: 7.20 W
- Rated Airflow:
  - At Duty Cycle 0~20%: 8.8 CFM
  - At Duty Cycle 50%: 20.3 CFM
  - At Duty Cycle 100%: 40.5 CFM
- Rated AcousticalLevel:
  - At Duty Cycle 0~20%: 16.0 dBA
  - At Duty Cycle 50%: 32.9 dBA
  - At Duty Cycle 100%: 47.5 dBA
- Rated StaticPressure:
  - At Duty Cycle 0~20%: 0.7 mm-H₂O
  - At Duty Cycle 50%: 3.6 mm-H₂O
  - At Duty Cycle 100%: 14.3 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 - Ground (-)
  - Pin2 - Power (+)
  - Pin3 - Signal (Tachometer Output)
  - Pin4 - PWM Control
Dimensions:
- Fan: 60.0 x 60.0 x 28.0 mm
- Overall: 112.0 x 84.0 x 67.0 mm
Weight: 400.0 5.0 g
RoHS Compliant
