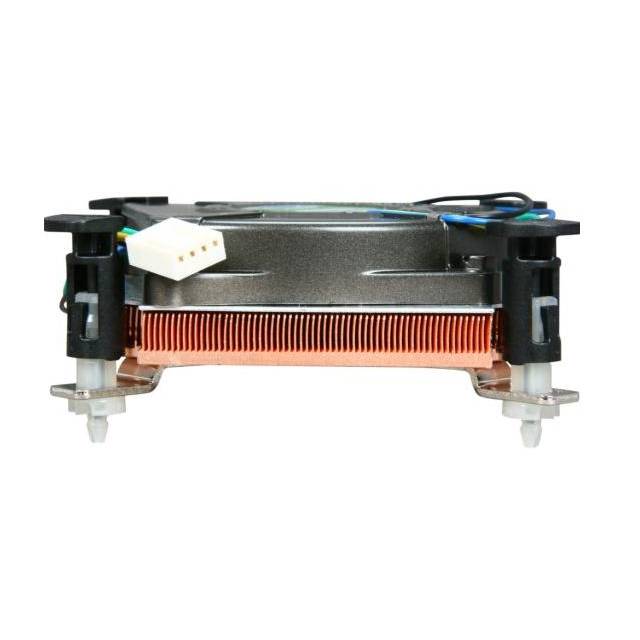

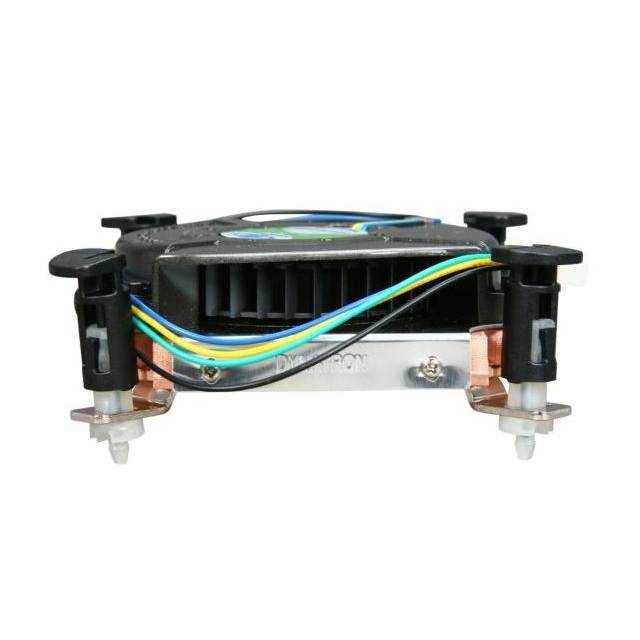

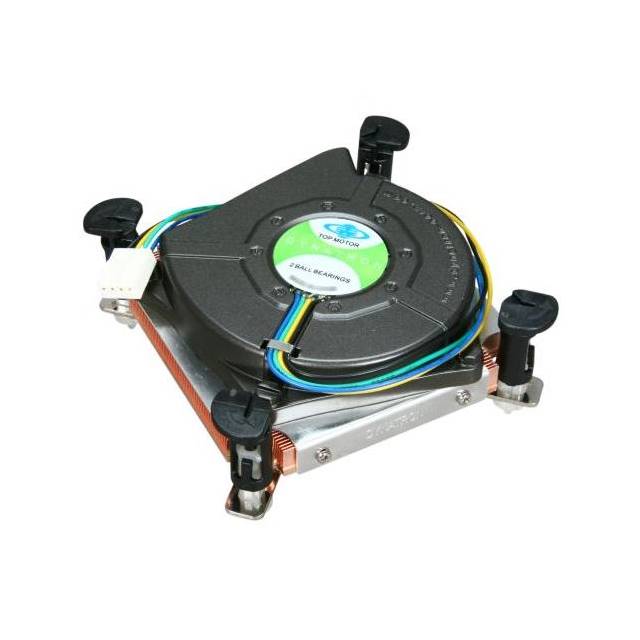

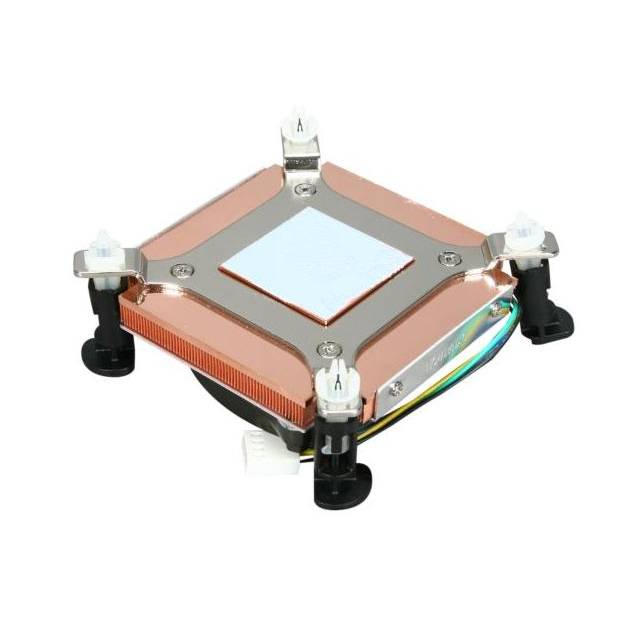

Dynatron K2 1U Server Cpu Fan For Intel Xeon Lga1156 Cpu

Description :

• Mfr Part Number: K2
• CPU Application: Intel Core i3 Processor I3-530, I3-540; Core i5 Processor I5-650, 660, 670, 680; Pentium Desktop Processor G6950
• Material: Copper Heatsink
• Solution: Mini-ITX form factor
• Fan:
• Speed:
• At Duty Cycle 20%: 1000 RPM
• At Duty Cycle 50%: 2500 RPM
• At Duty Cycle 100%: 4000 RPM
• Bearing: 2 Ball Bearing
• Rated Voltage: 12 V
• Power:
• At Duty Cycle 20%: 0.6 W
• At Duty Cycle 50%: 1.8 W
• At Duty Cycle 100%: 4.8 W
• Air Flow:
• At Duty Cycle 20%: 6.0 CFM
• At Duty Cycle 50%: 8.3 CFM
• At Duty Cycle 100%: 11.9 CFM
• Noise Level:
• At Duty Cycle 20%: 21.0 dBA
• At Duty Cycle 50%: 37.8 dBA
• At Duty Cycle 100%: 44.0 dBA
• Air Pressure:
• At Duty Cycle 20%: 0.087 inch-H2O
• At Duty Cycle 50%: 0.453 inch-H2O
• At Duty Cycle 100%: 0.929 inch-H2O
• Lead Wire Pin Out:
• Pin1-Black (-)
• Pin2-Yellow (+)
• Pin3-Green (Techometer/Signal output)
• Pin4-Blue (PWM)
• Dimensions:
• Fan: 75.0 x 75.0 x 15.0 mm
• Overall: 82.6 x 81.0 x 27.8 mm
• Weight: 380.0 g
• RoHS Compliant
