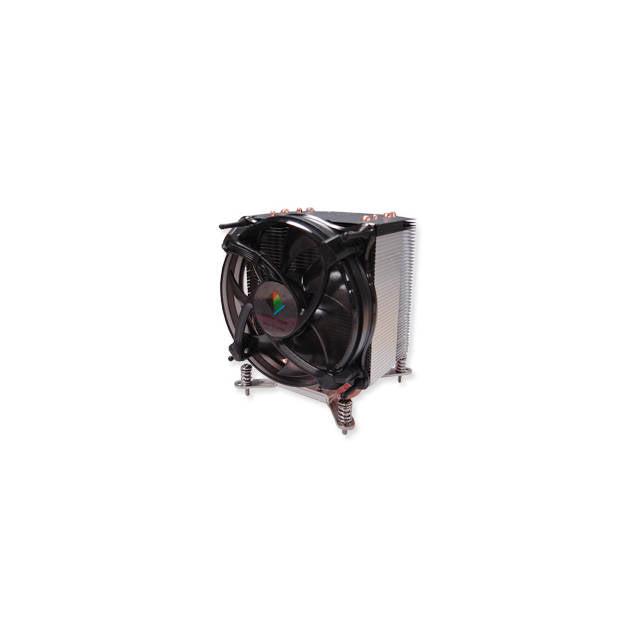

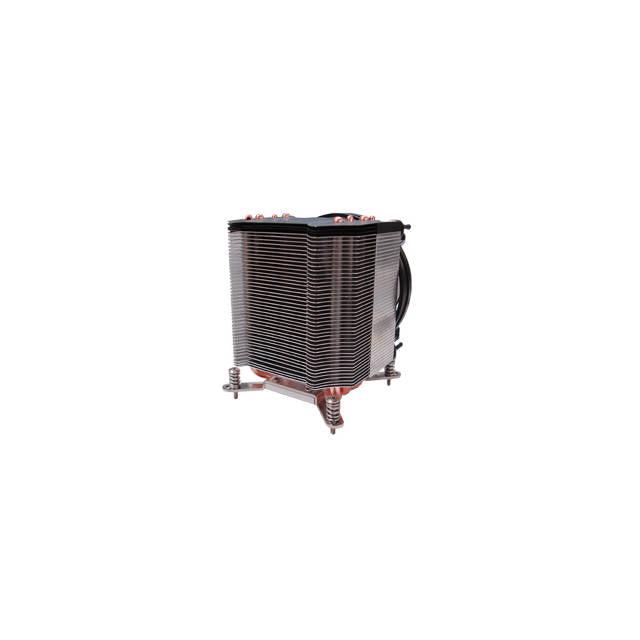

Dynatron K17 3U&Up&Workstation Server Cpu Fan For Intel Lga1155/1156/1150

Description :

• Mfr Part Number: K17
• Socket Type: LGA 1150/ 1155/ 1156;
• CPU Application: Supports Intel Xeon Server Processor E3 Series, Intel Core i7 Desktop Processor 2600, 2600K, 880, 875K, 870, 870S, 860, 860S, Intel Core i5 Desktop Processor 2500, 2400, 2310, 2300, 760, 750, 750S, 680, 670, 661, 660, 655K, 650, Intel Core i3 Desktop Processor 2100, 560, 550, 540, 530, Pentium Desktop Processor G850, G840, G6960, G6950, G620, G620T
• Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
• Fan:
  • Rated Speed:
    • At Duty Cycle 20%: 1000 RPM
    • At Duty Cycle 50%:1800 RPM
    • At Duty Cycle 100%: 2500 RPM
  • Bearing:Double-Ball
  • Rated Voltage: 12V
  • Rated Input Power:
    • At Duty Cycle 20%: 0.96W
    • At Duty Cycle 50%: 1.44W
    • At Duty Cycle 100%:3.00 W
  • Rated Airflow:
    • At Duty Cycle 20%:17.34 CFM
    • At Duty Cycle 50%:31.21 CFM
    • At Duty Cycle 100%: 43.36CFM
  • Rated AcousticalLevel:
    • At Duty Cycle 20%:17.0 dBA
    • At Duty Cycle 50%:24.78 dBA
    • At Duty Cycle 100%:31.92 dBA
  • Rated StaticPressure:
    • At Duty Cycle 20%:0.48 mm-H₂O
    • At Duty Cycle 50%:1.55 mm-H₂O
    • At Duty Cycle 100%:3.00 mm-H₂O
  • Lead Wire Pin Out:
    • Pin1 - (-)
    • Pin2 - (+)
    • Pin3 - (Techometer /Signal Output)
    • Pin4 - (PWM)
• Dimensions:
  • Fan:92.0 x 25.0 mm
  • Overall:91.0 x91.0 x 110.0 mm
• Weight:530.0 5.0 g
• RoHS Compliant
