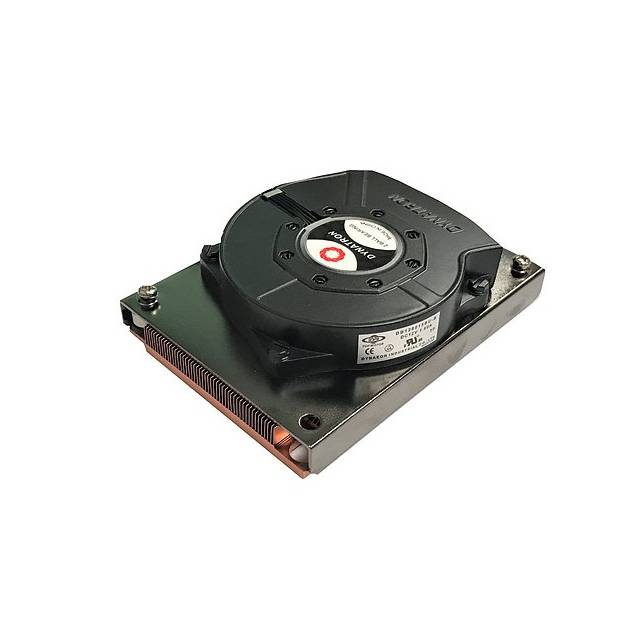

Name: Dynatron B3 1U Server Cpu Fan For Intel Fclga3647
Brand: Dynatron
SKU: B3
Price: 50.83 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Mfr Part Number: B3
CPU Socket: FCLGA3647
Solution: 1U Server and Up
Material: Copper 1100 with Skived Fins
Fan:
- Speed:
  - At Duty Cycle 20%: 1000 200 RPM
  - At Duty Cycle 50%: 4000 10% RPM
  - At Duty Cycle 100%: 7000 10% RPM
- Bearing: 2 Ball Bearing
- Rated Voltage: 12 V
- Power:
  - At Duty Cycle 20%: 0.60 W
  - At Duty Cycle 50%: 3.84 W
  - At Duty Cycle 100%: 19.2 W
- Air Flow:
  - At Duty Cycle 20%: 3.0 CFM
  - At Duty Cycle 50%: 12.0 CFM
  - At Duty Cycle 100%: 21.0 CFM
- Noise Level:
  - At Duty Cycle 20%: 16.0 dBA
  - At Duty Cycle 50%: 44.9 dBA
  - At Duty Cycle 100%: 57.1 dBA
- Air Pressure:
  - At Duty Cycle 20%: 1.5mm-H2O
  - At Duty Cycle 50%: 23.2 mm-H2O
  - At Duty Cycle 100%: 70.9 mm-H2O
- Lead Wire Pin Out:
  - Pin1- (-)
  - Pin2- (+)
  - Pin3- (Techometer/Signal output)
  - Pin4- (PWM)
Thermal Grease: Shin-Etsu 7762 Pre-printed
Dimensions:
- Fan: 80.0 x 15.0 mm
- Overall: 107.0 x 80.5 x 28.0 mm
Weight: 460.0 g
RoHS Compliant
