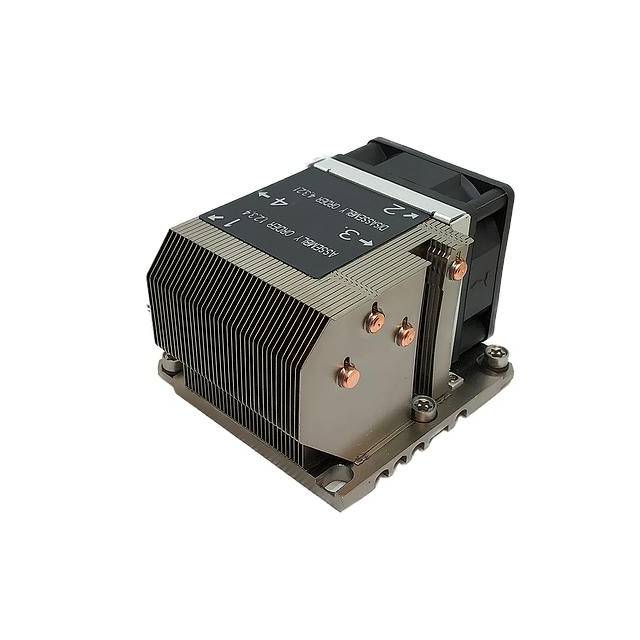

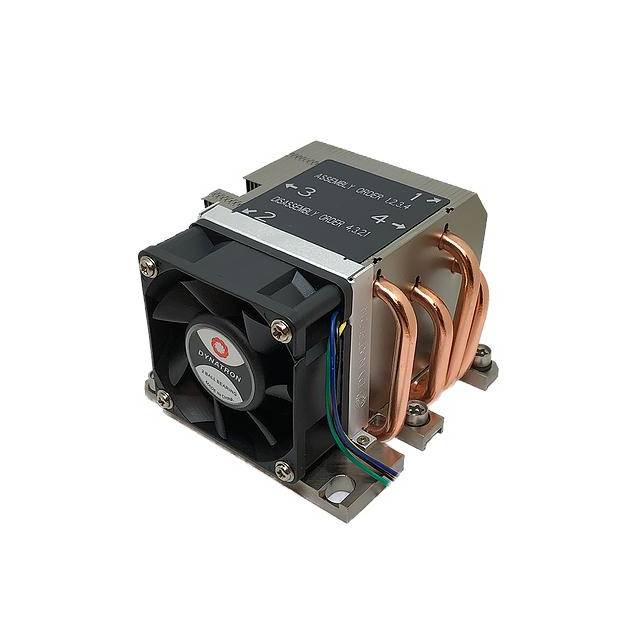

Name: Dynatron B13 2U Server Cpu Fan For Intel Fclga3647
Brand: Dynatron
SKU: B13
Price: 45.77 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Mfr Part Number: B13
CPU Socket: FCLGA3647
Solution: 2U Server and Up

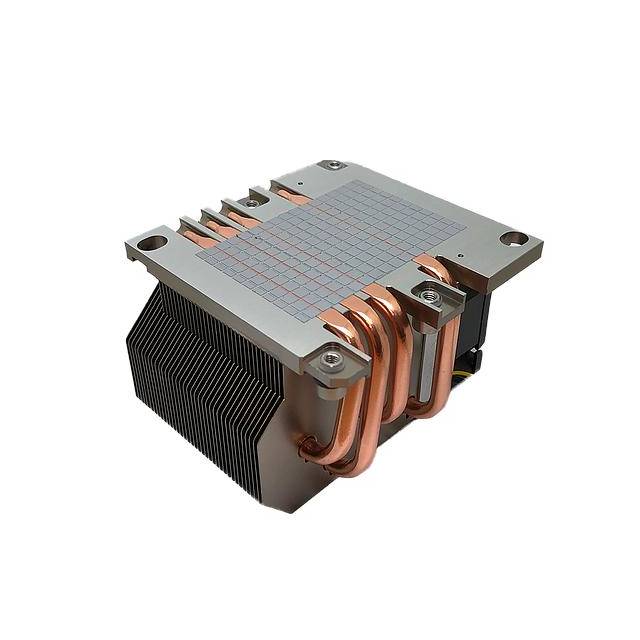

Material: Aluminum Heatsink with Heatpipe Embedded
Fan Dimension: 60.0 x 60.0 x 25.0 mm
Speed:
- At Duty Cycle 20%: 1400 200 RPM
- At Duty Cycle 50%: 3400 10% RPM
- At Duty Cycle 100%: 7000 10% RPM
Rated Voltage: 12V
Bearing: 2 Ball Bearing
Power:
- At Duty Cycle 20%: 0.90 W
- At Duty Cycle 50%: 2.04 W
- At Duty Cycle 100%: 5.40 W
Air Flow:
- At Duty Cycle 20%: 8.12 CFM
- At Duty Cycle 50%: 20.31 CFM
- At Duty Cycle 100%: 40.60 CFM
Noise Level:
- At Duty Cycle 20%: 16 dBA
- At Duty Cycle 50%: 35 dBA
- At Duty Cycle 100%: 50 dBA
Air Pressure:
- At Duty Cycle 20%: 0.58mm-H2O
- At Duty Cycle 50%: 3.65 mm-H2O
- At Duty Cycle 100%: 14.58 mm-H2O
Lead Wire Pin Out:
- Lead Wire Pin Out
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
Thermal Grease: Shin-Etsu 7762 Pre-printed
Dimensions: 108.0 x 80.0 x 66.0 mm
Weight: 430.0 g
RoHS Compliant

General Information

Manufacturer	TIC Corporation
Manufacturer Part Number	B13
Manufacturer Website Address	http://www.ticcorp.com
Brand Name	TIC
Product Model	B13
Product Name	B13 - Outdoor 70v In-Ground Omnidirectional Speaker
Product Type	Speaker
UPC	855700016123

Height	19.3"
Width	15"

Warranty

Limited Warranty	1 Year

Dynatron B13 2U Server Cpu Fan For Intel Fclga3647

Description
