Dynatron

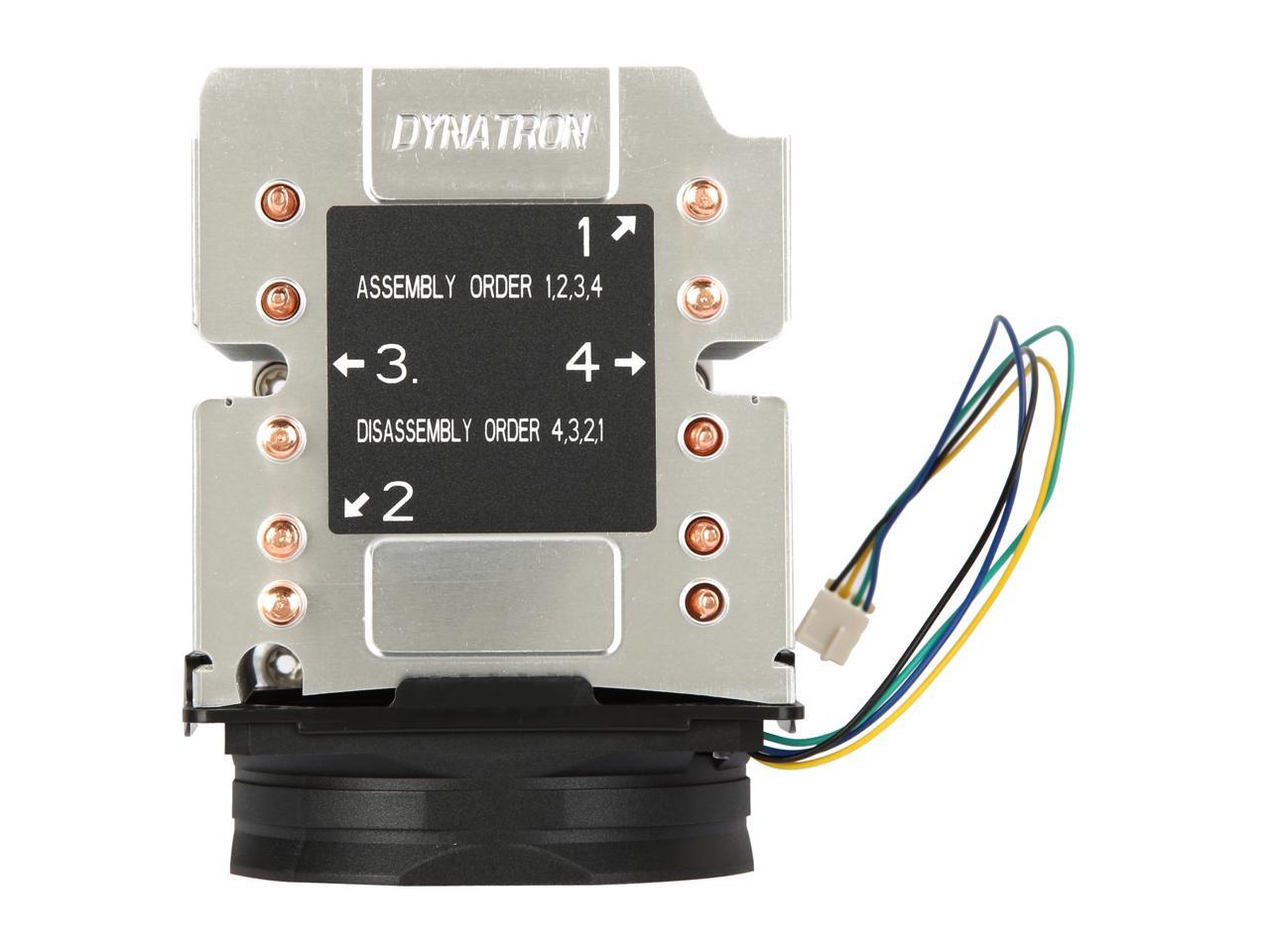

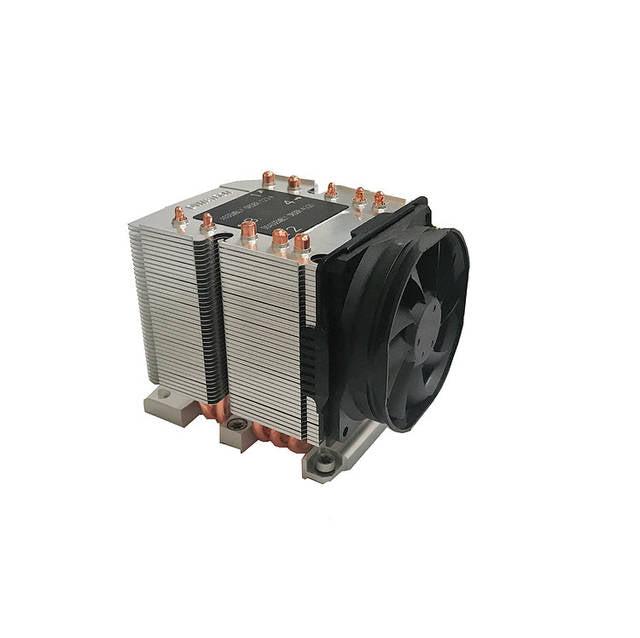

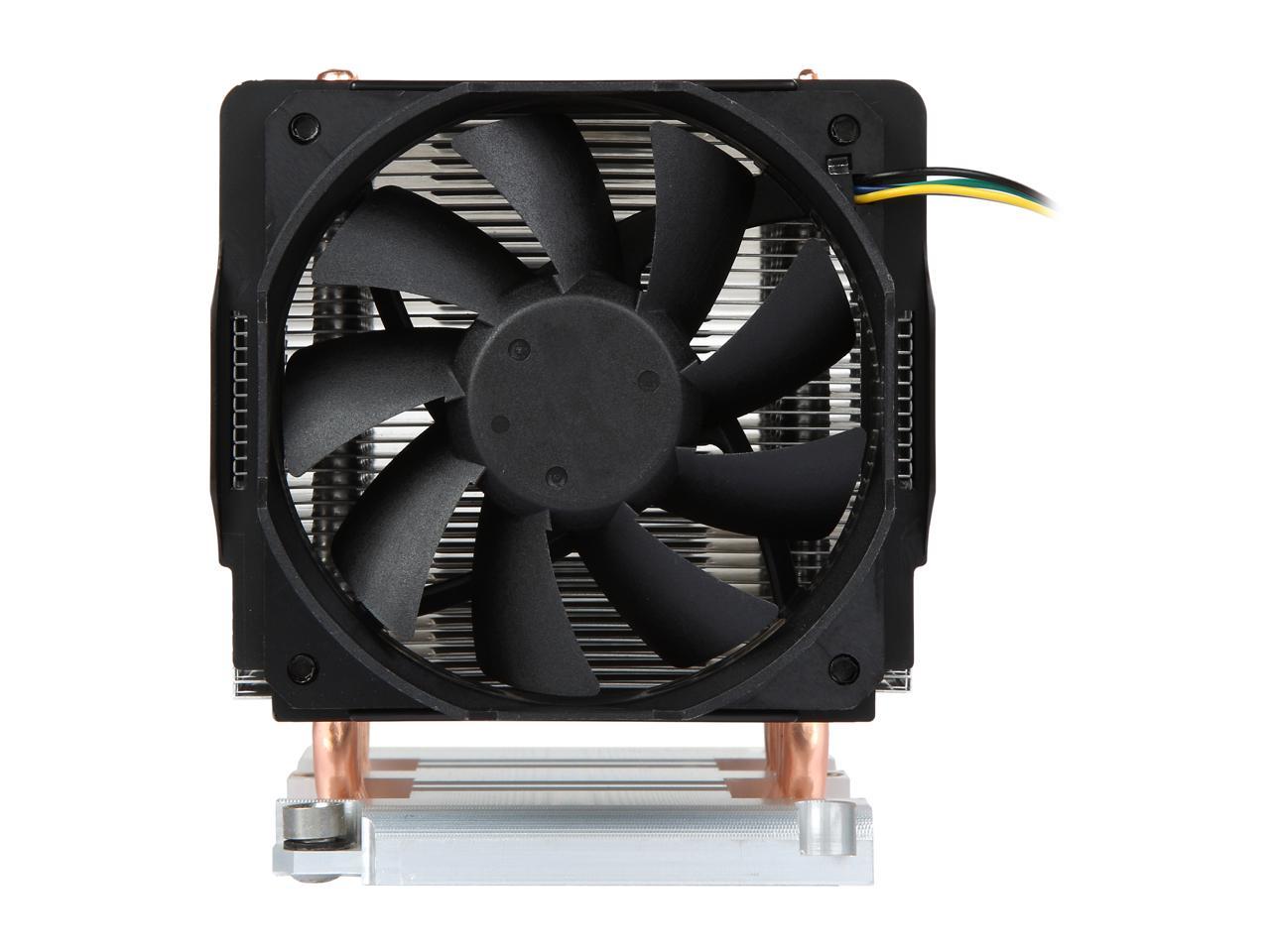

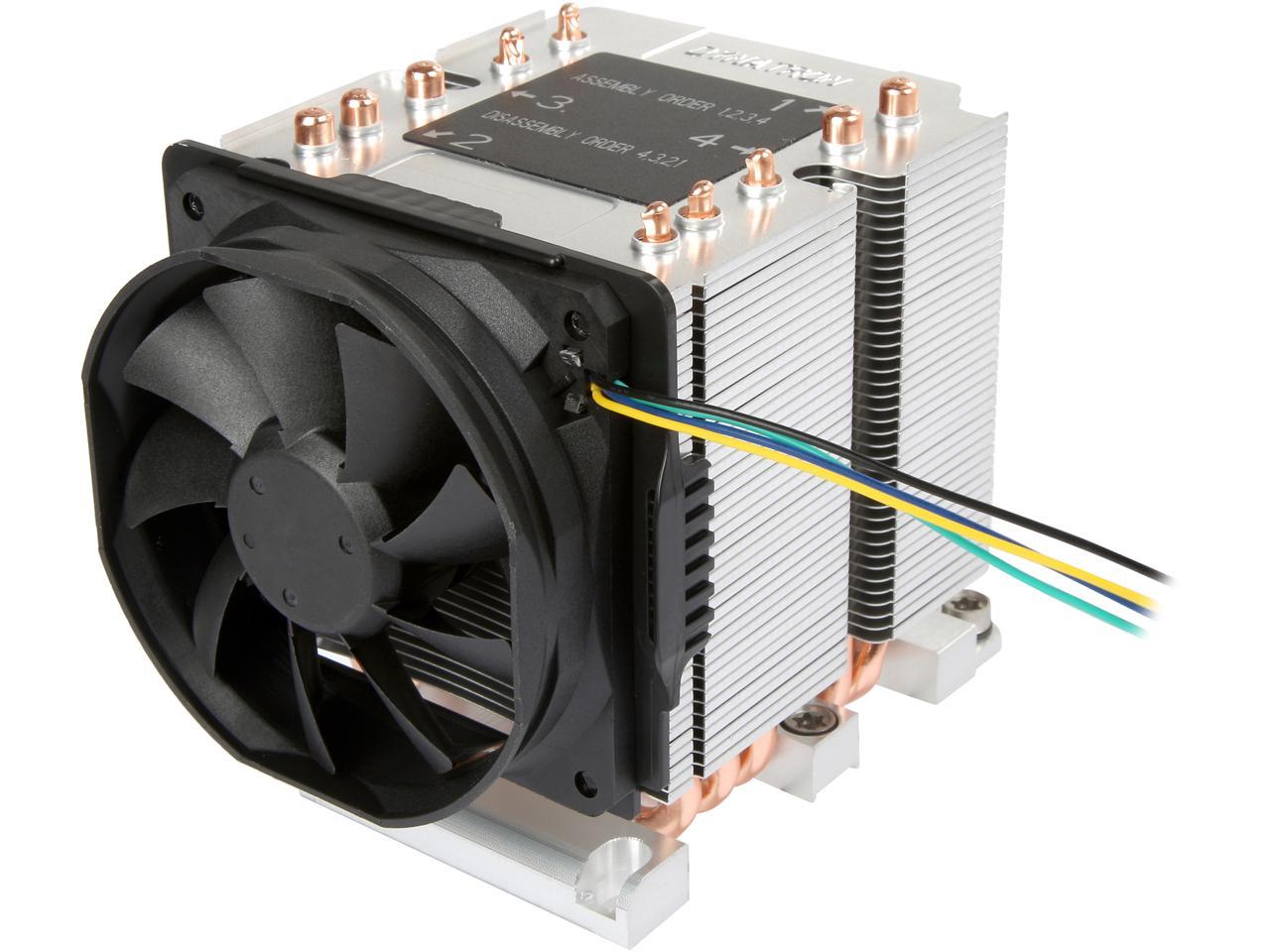

Dynatron B11 3U Server Cpu Fan For Intel Fclga3647
Dynatron B11 3U Server Cpu Fan For Intel Fclga3647
SKU:B11
Regular price
$29.54
Regular price
Sale price
$29.54
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
- Mfr Part Number: B11
- CPU Socket: FCLGA3647
- Solution: 3U Server and Up
- Material: Aluminum Heatsink with Heatpipe Embedded
- Fan Dimension: 80.0 x 80.0 x 25.0 mm
-
Speed:
- At Duty Cycle 20%: 1300 200 RPM
- At Duty Cycle 50%: 2300 10% RPM
- At Duty Cycle 100%: 4000 10% RPM
- Rated Voltage: 12V
- Bearing: 2 Ball Bearing
-
Power:
- At Duty Cycle 20%: 0.96 W
- At Duty Cycle 50%: 1.44 W
- At Duty Cycle 100%: 4.80 W
-
Air Flow:
- At Duty Cycle 20%: 12.5 CFM
- At Duty Cycle 50%: 28.8 CFM
- At Duty Cycle 100%: 50.0 CFM
-
Noise Level:
- At Duty Cycle 20%: 16.0 dBA
- At Duty Cycle 50%: 30.2 dBA
- At Duty Cycle 100%: 42.2 dBA
-
Air Pressure:
- At Duty Cycle 20%: 0.5 mm-H2O
- At Duty Cycle 50%: 2.6 mm-H2O
- At Duty Cycle 100%: 7.8 mm-H2O
-
Lead Wire Pin Out:
- Lead Wire Pin Out
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
- Thermal Grease: Shin-Etsu 7762 Pre-printed
- Dimensions: 108.0 x 80.0 x 110.0 mm
- Weight: 600.0 g
- RoHS Compliant
Specifications :
General Information
| Manufacturer | The Bosch Group |
|---|---|
| Manufacturer Part Number | B11 |
| Manufacturer Website Address | http://www.bosch.com |
| Brand Name | Bosch |
| Product Model | B11 |
| Product Name | B11 Small Control Panel Enclosure |
| Product Type | Alarm Control Panel Enclosure |
| UPC | 855700016109 |
| Product Color | White |
|---|---|
| Height | 10.2" |
| Width | 10.9" |
| Depth | 3.3" |
