Docking Station For Dell Notebooks DS-DELL-426-3

Docking Station For Dell Notebooks DS-DELL-426-3

SKU:DS-DELL-426-3

$1,150.00
$1,150.00
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

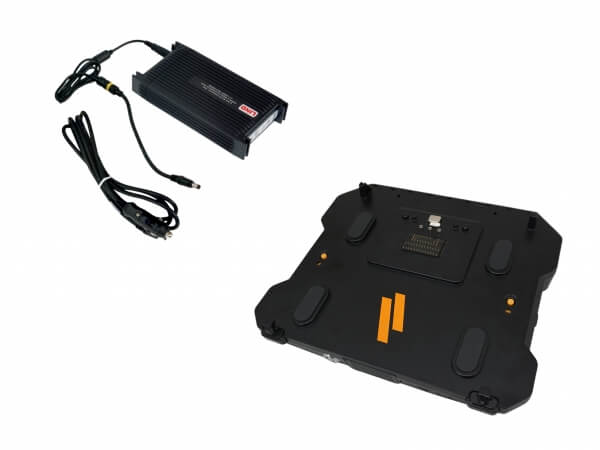

          Docking Station For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Standard Port Replication, Triple Pass-Thru Antenna Connections & LIND Power Supply

          DS-DELL-426-3

          FEATURES

          • Includes DS-DELL-425-3 docking station & LIND LPS-137 power supply
          • Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
          • Adjustable & lockable front arms accommodate new and legacy notebooks
          • One-handed docking & undocking (patent pending)
          • Spring-loaded connector head
          • Compact & lightweight
          • U-style mounting bracket with seating notch for easy installation
          • Rounded corners and edges for safety
          • Access to all notebook buttons and ports when docked
          • Standard port replication with integrated cable management system
          • Also compatible with 5414, 7214, 5404 & 7204 notebooks
          • Keyed lock
          • Compatible with screen support (DS-DA-412, sold separately)
          • Made in USA



          Manufacturer: Havis

          Manufacturer Part Number: DS-DELL-426-3

          SPECIFICATIONS

          PRODUCT SPECIFICATIONS:
          Compatible devices: Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
          Certifications: UL safety (pending); Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational (-20 C to 60 C) & sto
          Connectivity includes: fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 jack, gigabit lan 10/100/1000 mb/s. (1), speaker & mic: (1 each, front facing), input voltage: 19.5V DC, antenna connections: triple pass-throug
          Dimensions: height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
          Product weight (dock only): 3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
          Gross weight: 7 lbs
