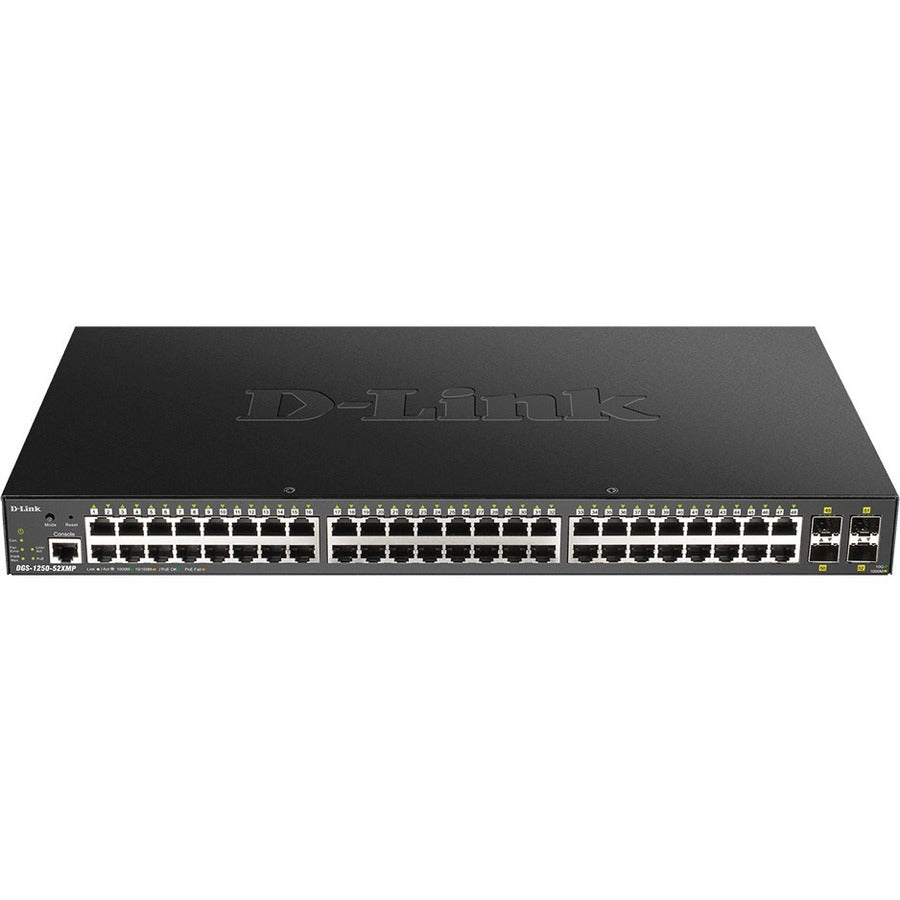

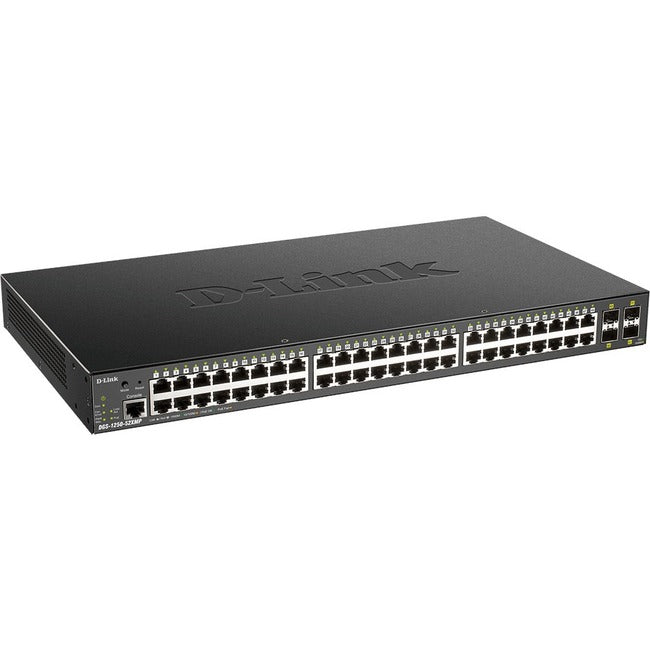

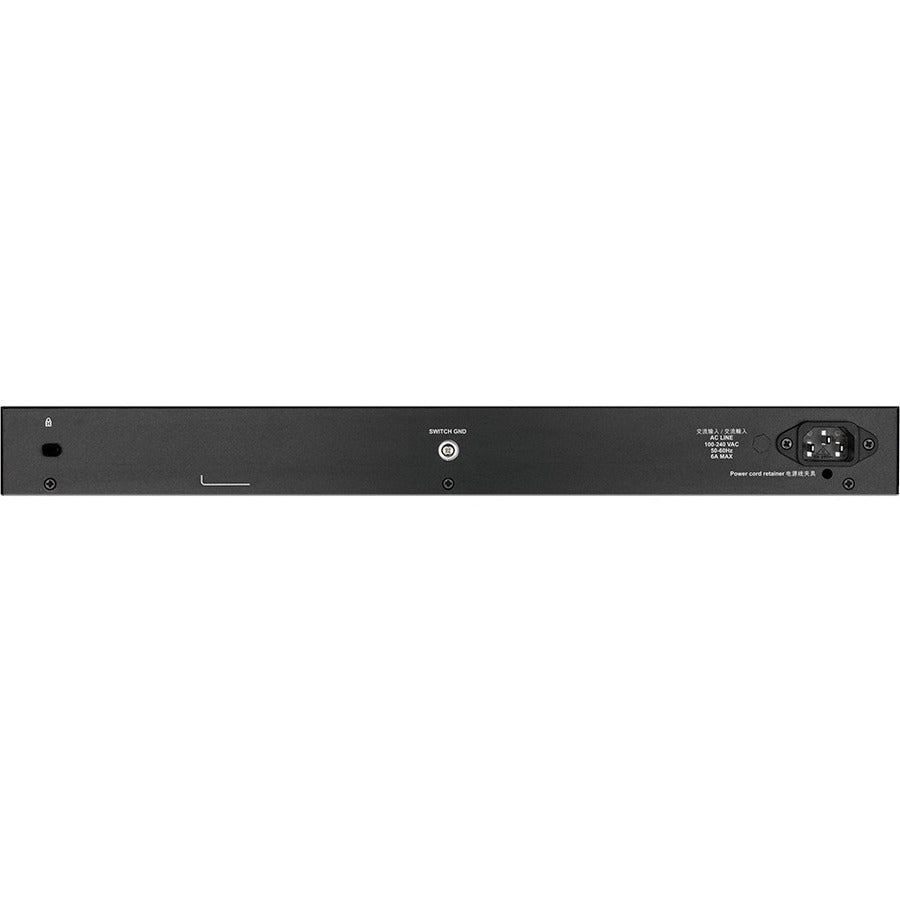

D-Link 52-Port 10-Gigabit Smart Managed PoE Switch DGS-1250-52XMP-6KV

Description :

D-Link 52-Port 10-Gigabit Smart Managed PoE Switch

Power & Value

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime

The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation. Full Command Line Interface (CLI) functionality enables remote configuration without need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration

The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

High PoE Budget (370W)

The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch's management interface, an administrator can control various PoE functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All PoE models support the IEEE 802.3af and 802.3at standards.

Extensive Management and Advanced Features

The DGS-1250 Series supports IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.

Management Versatility

The DGS-1250 Series supports the D-Link Network Assistant (DNA) utility so I.T. professionals can remotely control their network to the port level. DNA allows them to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.

• 48 x 10/100/1000BASE-T Gigabit Ethernet PoE ports


• 4 x 10G SFP+ ports for high speed uplink connections


• Robust 370W PoE Power Budget


• Lite L3 Static Routing for increased network efficiency


• Advanced security features such as Access Control List, IMPB, and 802.1X Authentication enhance network security and help protect the network


• Dual Image & Dual Configuration for reduced downtime


• Supports STP/RSTP/MSTP for fault tolerance


• Full CLI for for easy management


• QoS for prioritization of critical network traffic


• 6kV Surge Protection on all Gigabit Ethernet access ports

Product Type: Ethernet Switch
Country Of Origin: Taiwan
Product Series: DGS-1250
Brand Name: D-Link
Manufacturer: D-Link Systems, Inc
Product Model: DGS-1250-52XMP
Product Name: 52-Port 10-Gigabit Smart Managed PoE Switch
Manufacturer Part Number: DGS-1250-52XMP-6KV
Manufacturer Website Address: http://www.dlink.com
Limited Warranty: Lifetime
Weight (Approximate): 8.49 lb
