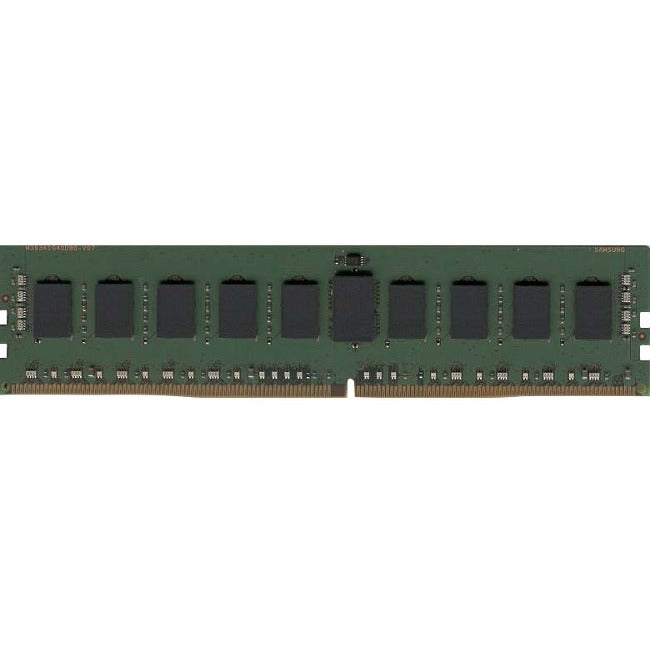

Dataram 16GB DDR4 SDRAM Memory Module
DTM68129B is a registered 1Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Single-Rank with the rank containing eighteen Samsung 2Gbx4 DDR4-2666 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- Editing high-resolution pictures, rendering 3D graphics and playing the latest games is not a big deal with DIMM 16 GB of memory that effortlessly manages them
- 288-pin-pin DDR4-2666/PC4-21300 interface synchronizes electrical and clock signals for an efficient data transfer rate
- Up to 2666 MHz speed with CL19 latency for playing the latest games and using heavy software
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68129B
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
