CyberPower PDU30BVT20F. PDU types: Basic, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 20 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 3.05 m. Nominal input voltage: 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 4.13 kg (9.11 lbs), Dimensions (W x D x H) (imperial): 1219.2 x 57.1 x 44.5 mm (48 x 2.25 x 1.75")

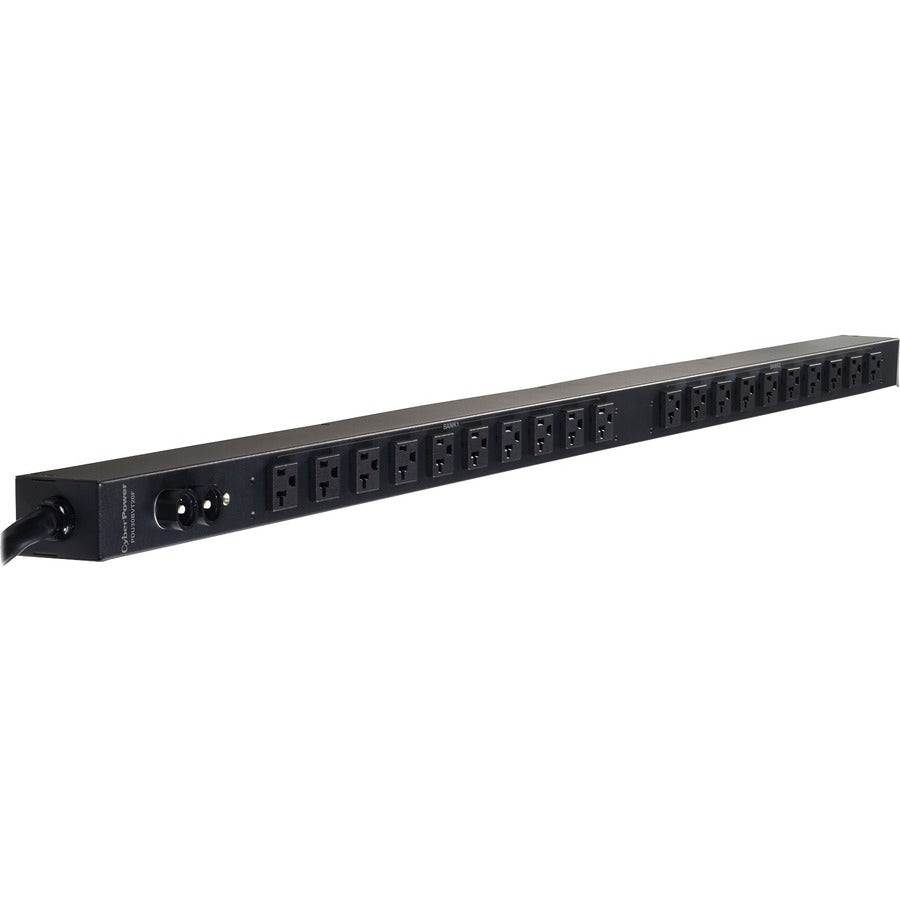

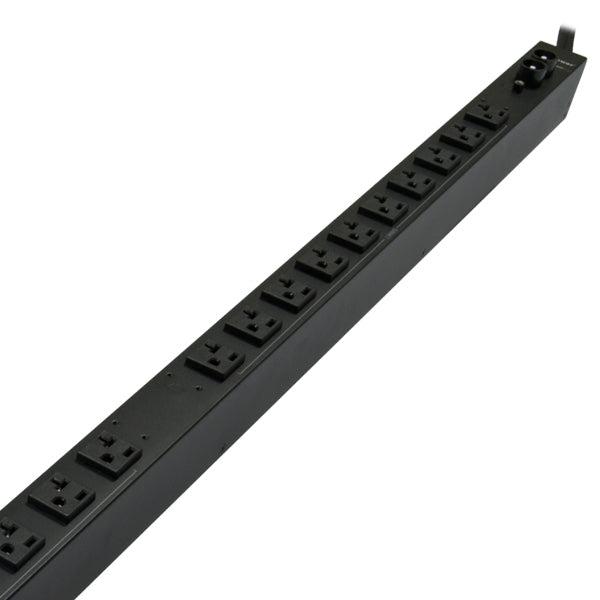

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU30BVT20F) provides 120V 30A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 20 NEMA 5-20R (20 Front) output receptacles - Single NEMA L5-30P twist lock plug - 30-amp electrical capacity with dual 20-amp circuit breakers - 120V AC - 50/60Hz - 48” 0U vertical rack mount - Rugged, industrial-grade metal housing - 10-ft. power cord
