CyberPower PDU20B10R. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal/Vertical. AC outlets quantity: 10 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA 5–20P. Cable length: 4.57 m, Certification: UL1363 ETL, CSA C22.2. Nominal input voltage: 120 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 2.04 kg (4.5 lbs), Dimensions (W x D x H) (imperial): 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")

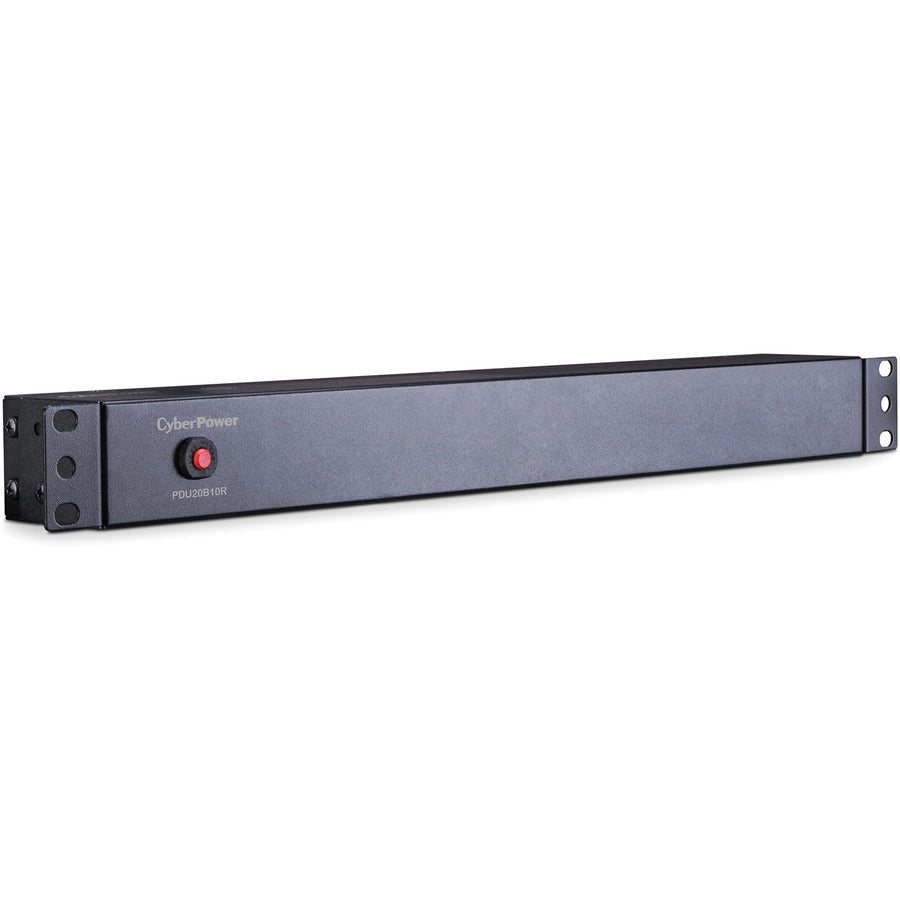

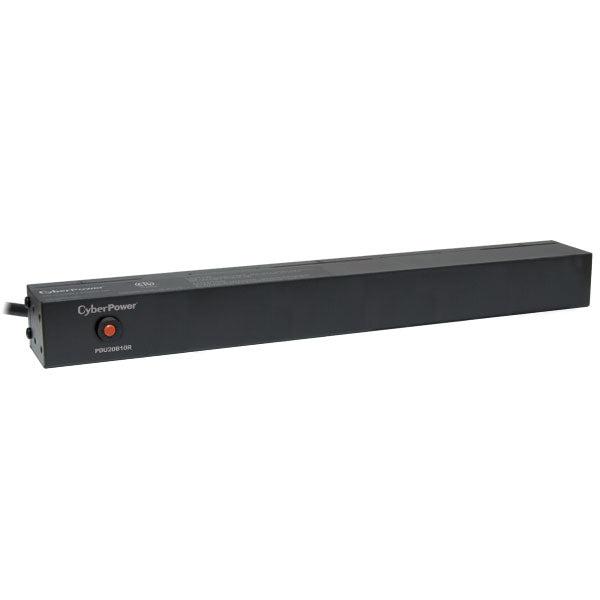

The CyberPower 10-outlet rack mount basic power distribution unit (PDU20B10R) provides 120V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 10 NEMA 5-20R output receptacles (10 Rear) - 20-amp electrical capacity with circuit breaker - 120V AC - 50/60Hz - 1U rack mount - 15-ft. power cord
