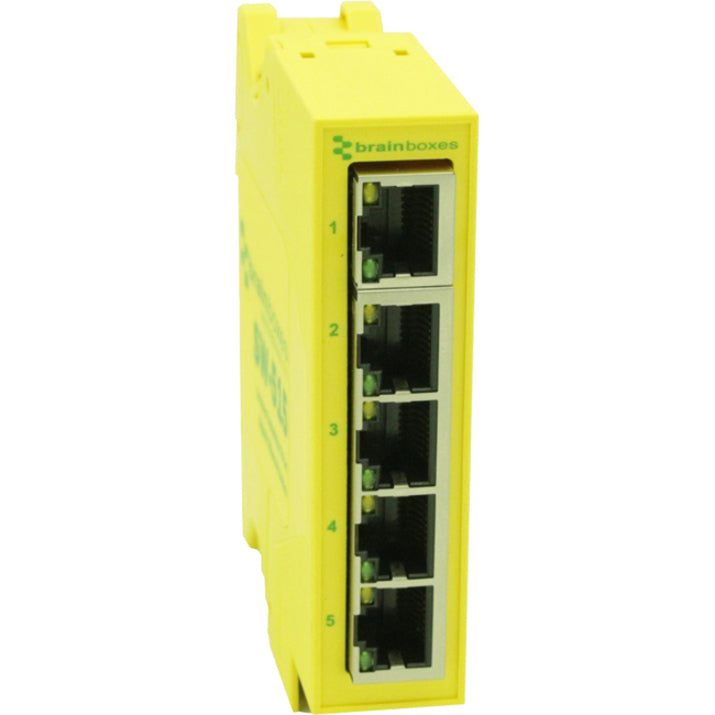

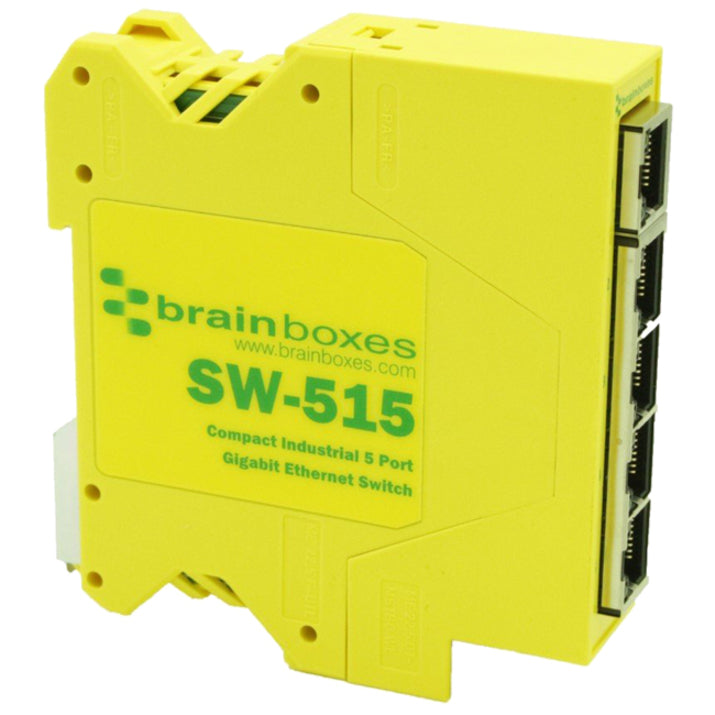

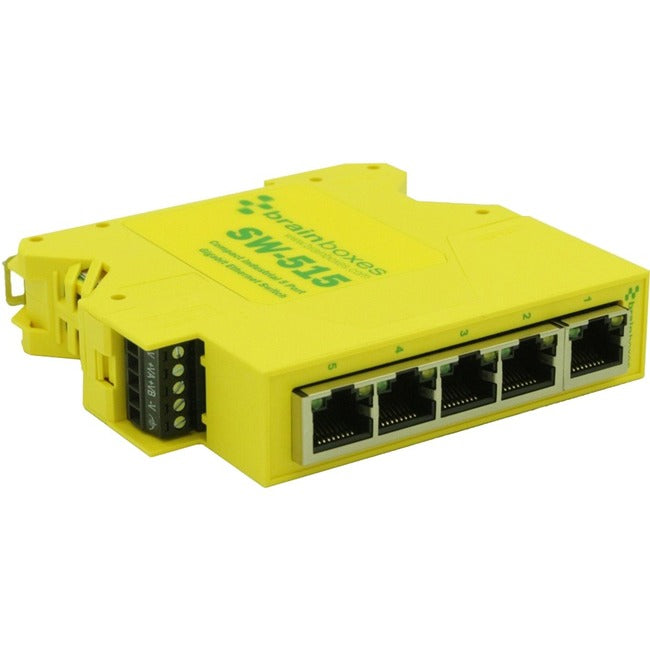

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable SW-515

Description :

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

• 5 Gigabit Ethernet ports


• Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources


• Industrial operating temperature range: -40C to +80C/-40F to +176F - works in extreme conditions


• Redundant dual power inputs - reduces risk of power outage


• Small Footprint Case, only 23mm wide, 94mm deep

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United Kingdom
Brand Name: Brainboxes

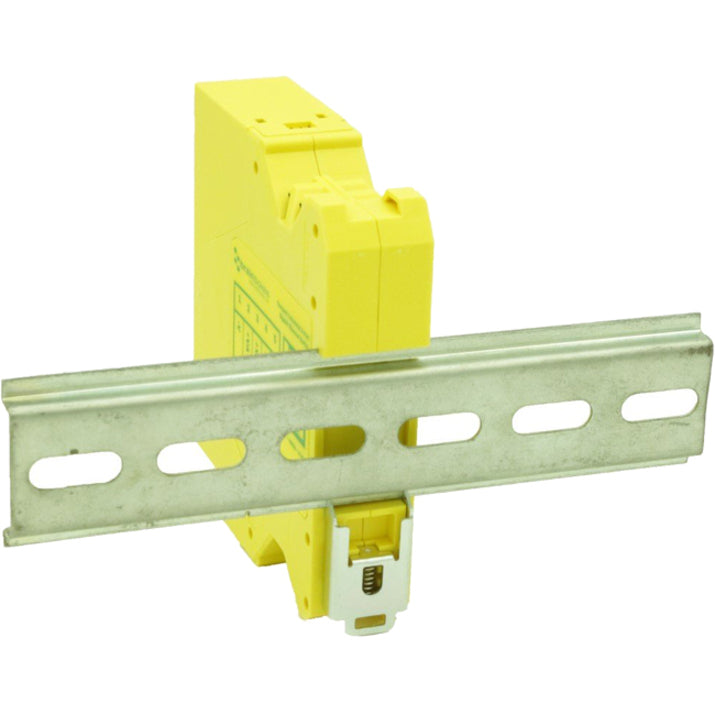

Form Factor: DIN Rail Mountable
Manufacturer: Brainboxes Limited
Product Model: SW-515
Product Name: Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Manufacturer Part Number: SW-515
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:

• Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
• Quick Start Guide
