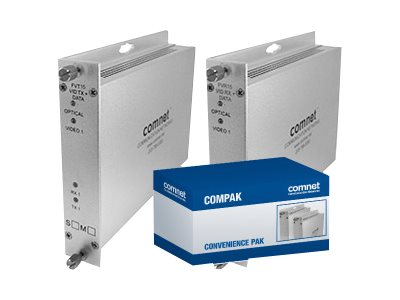

ComNet COMPAK15M2 Transmitter and Receiver - Video/serial extender - ST multi-mode - up to 1.6 miles - 850 nm - 1U - FVT15M2 Mini Video Transmitter, FVR15M2 AGC Mini Video Receiver
- AM video transmission and reception
- NTSC, PAL, or SECAM compatible
- Full color compatibility
- NTCIP compatible
- Supports RS232 or RS422 data interfaces
- Transparent to data encoding/compatible with major CCTV camera manufacturers
- No in-field electrical or optical adjustments
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Distances up to 1.5 miles (2.5 km) without repeaters
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Automatic resettable fuses on all power lines
The ComNet FVT15M2 video transmitter/data receiver and the FVR15M2 video receiver/data transmitter support the simultaneous transmission of video and return data over two multimode optical fibers. These modules are universally compatible with all major CCTV camera manufacturers and supports RS232 and RS422 data interfaces and all major data protocols. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
