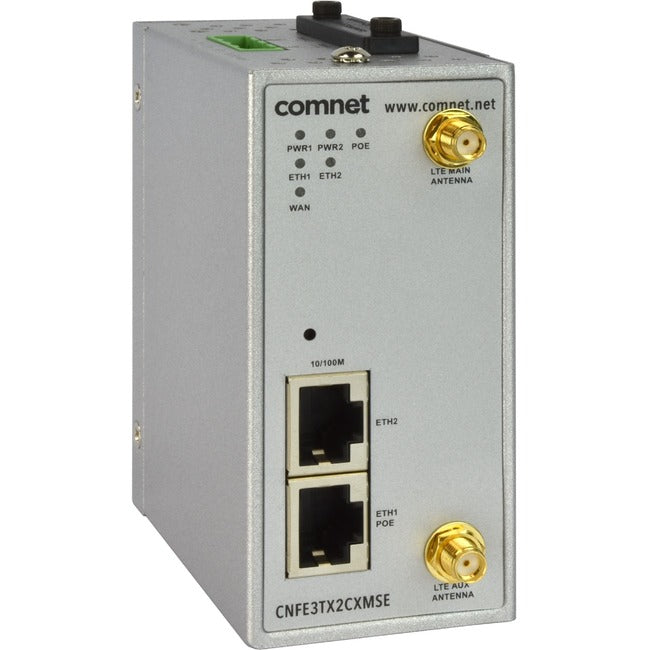

ComNet CNFE3TX2CXMSU 1 SIM Cellular, Ethernet Modem/Wireless Router CNFE3TX2CXMSE

Description :

ComNet CNFE3TX2CXMSU 1 SIM Cellular, Ethernet Modem/Wireless Router
The ComNet CNFE3TX2CXMS(U,E) is an edge Cellular VPN Gateway with 2 10/100TX Ports (1 LAN, 1 WAN) and 1 standard SIM card slot. It supports 802.1X and MAC filter for security control. The Gateway can be configured to operate in 3 modes: Dynamic/Static IP route, PPPoE authentication, and Modem dial up. The units can be powered by an IEEE 802.3af PoE compliant device on port 1 or through the 4-Pin terminal block with dual DC Inputs. The Gateways are DIN Rail mountable and feature a rigid IP-30 housing.

FEATURES

• Supports 802.1X Authentication
• HTTPS Support for Secure Management
• 4G LTE Modem Built In
• OpenVPN, IPsec VPN, PPTP VPN
• NAT Support (Virtual Server, Port Trigger, DMZ and UPnP)
• 1KV Isolation for PoE PD Port
• DIN-Rail and Wall Mountable
• Event Warning by Syslog, Email and SNMP Trap
• Cellular Antennas included
• Certified for AT&T Networks

• Remote locations where network access is required
• Wireless Perimeter Surveillance
• Temporary Network Surveillance Deployments
• Site to Site VPN
• Redundant Gateway
• Electrical substation SCADA and distribution automation networks; protective relaying systems; power transmission & distribution systems; remote/unattended wind farm, hydroelectric, and solar/photovoltaic power generation facilities; and other electrical utility-specific applications
• NERC-CIP-014 compliance for perimeter security, surveillance monitoring, and controlled access to electrical substations and power generating facilities, and other critical infrastructure/high value, mission-critical sites and assets
• Industrial/Factory Automation & Process Control SCADA Networks
• Distribution Automation: Remote status indication, monitoring, and control of reclosers, capacitor banks, voltage regulators, and other remotely-located electrical utilityspecific equipment, via the internal cellular radio link
• Integrated IP-Video, VOIP, and Data Transmission Networks
• Wastewater treatment plants, and suppliers of potable drinking water
• ITS/transportation closed-loop signalization and VMS/VDS/ surveillance/incident detection systems
• City Center security and surveillance monitoring
• Military, defense, and government communications networks

• Savor simultaneous downloading and seamless streaming


• Provides electric power over RJ45 ports along with data to devices on your network, such as IP cameras or network equipment


• Link your router traffic to your wired network with the Fast Ethernet port


• Tuck the router out of the way with its wall mounting feature

Product Type: Modem/Wireless Router
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ComNet
Form Factor: DIN Rail Mountable
Manufacturer: ACRE
Product Model: CNFE3TX2CXMSU
Product Name: 4G LTE Cellular VPN Gateway
Manufacturer Part Number: CNFE3TX2CXMSE
Manufacturer Website Address: http://www.acre-co.com
Package Contents:

• 4G LTE Cellular VPN Gateway
• 2 SMA Female Antennas (Cellular)
• DIN-Rail Mount, and Wall Mount
• DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included in North America only, for benign 0 to 50C applications. Hardened power supply available, consult factory)
