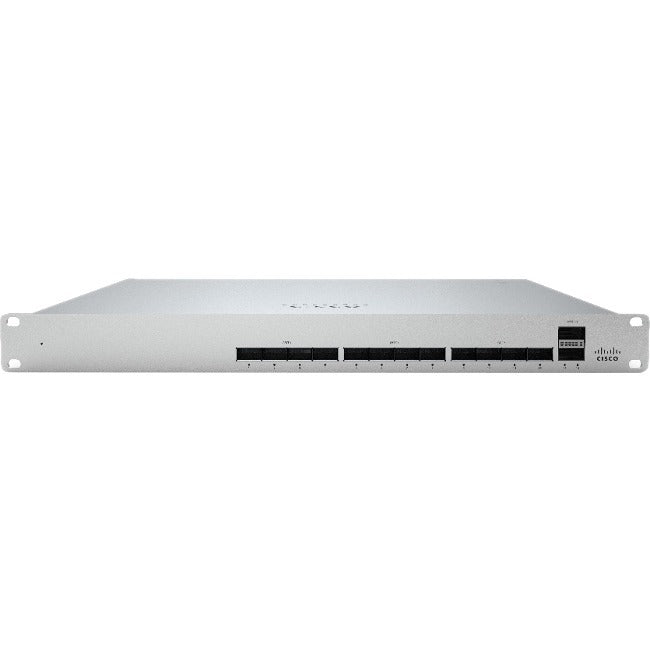

Meraki MS450 Aggregation Switch
HIGH-BANDWIDTH AGGREGATION SWITCHING
The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility.
EXPANDING CLOUD MANAGEMENT TO THE CAMPUS
Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.
INDUSTRY-LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build campus networks:
- Automatic email alerts from power loss, downtime, or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application, operating system, client, and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
Product Highlights - Connect up to 12 MS355s for high-bandwidth aggregration layer switching
- Connect to core or data center switches with 2 x 100G QSFP28 uplinks
- Stack up to eight switches for high-availability deployments
- Dual stacking interfaces with up to 400 Gbps of band- width
- Non-blocking switch backplane with up to 1.36 Tbps of switching capacity
- Support for field replaceable, redundant power supplies
- Integrated mounting brackets for rack mounting
- Lifetime hardware warranty and advanced replacement at no additional cost
Meraki switches feature high-end hardware features, including: - Compact, 1RU design for space-constrained environments
- Terabit performance with non-blocking architecture
- Field-replaceable, hot-swappable power supplies/fans
- Front-to-back cooling
- Dedicated management port
- Low power consumption and shallow rack depth, which enable flexible deployment
- Stacking option for building redundant architecture
- Cascade to other network devices through the uplink port to expand your local area network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Product Type: Layer 3 Switch
Compatible Rack Unit: 1U
Country Of Origin: Taiwan
Brand Name: Meraki
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Model: MS450-12
Product Name: MS450 Aggregation Switch
Manufacturer Part Number: MS450-12-HW
Manufacturer Website Address: http://www.cisco.com
Package Contents:
- MS450 Aggregation Switch
- 1 x Power Supply (MA-PWR-250WAC)
- 4-Post Rack Mount Kit
- 3 x Pre-Installed Fans
Limited Warranty: Lifetime
Weight (Approximate): 13.80 lb
