CISCO - MERAKI

Cisco Meraki Mr30H Cloud,Managed Ap

SKU: MR30H-HW

Regular price $392.65
Regular price Sale price $392.65
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          Meraki MR30H IEEE 802.11ac 1.30 Gbit/s Wireless Access Point

          Dual-band, 802.11ac Wave 2 2x2:2 Wall Switch Access Point with dedicated security and RF management radio as well as an integrated Bluetooth Low Energy beacon and scanning radio

          Robust Feature Set for Multi-dwelling Wireless

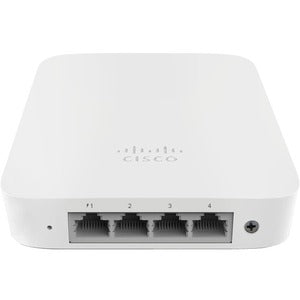

          The Cisco Meraki MR30H is a quad-radio, cloud-managed 2x2:2 802.11ac Wave 2 wall switch access point with MU-MIMO support. Designed for next-generation deployments in hotel rooms, university residences, and other multi-dwelling units, the MR30H provides performance, enterprise-grade security, and simple management.

          The MR30H provides a maximum 1.3 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. Four ethernet ports on the wall switch allow easy connectivity of external wired devices. An integrated Bluetooth Low Energy (BLE) radio delivers beacon and scanning capabilities.

          The combination of cloud management, 802.11ac Wave 2, full-time RF environment scanning, a wall switch, and integrated Bluetooth technology delivers the throughput, reliability, convenience and flexibility required by demanding multi-dwelling use cases.

          MR30H and Meraki Cloud Management: A Powerful Combination

          The MR30H is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Since the MR30H is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff.

          The MR30H is monitored 24x7 via the Meraki cloud, which delivers real-time alerts if the network encounters problems. Remote diagnostics tools enable real-time troubleshooting over the web, meaning multi-site, distributed networks can be managed remotely.

          The MR30H's firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.

          Aggregate data rate of up to 1.3 Gbps

          A 5 GHz 2x2:2 radio supporting 80 MHz channel widths and a 2.4 GHz 2x2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.

          Multi User Multiple Input Multiple Output (MU-MIMO)

          With support for the 802.11ac Wave 2 standard, the MR30H offers MU-MIMO for more effcient transmission to multiple clients. Especially suited for enviroments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultanously. This increases the total network perfomance and the improves the end user experience.

          Dedicated third radio delivers 24x7 wireless security and RF analytics

          The MR30H's sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput.


          • 2x2 MU-MIMO 802.11ac Wave 2

          • 4 port ethernet switch

          • 1.3 Gbps* aggregate dual-band frame rate

          • 24x7 real-time WIPS/WIDS, spectrum analytics, and WiFi location tracking via dedicated 3rd radio

          • Integrated BLE Beacon and scanning radio

          • Integrated enterprise security and guest access

          • Application-aware traffic shaping

          • Optimized for voice and video

          • Self-configuring, plug-and-play deployment

          • Secure, wall-flush installation with included mounting bracket

          • Sleek, low-profile design blends into any environment

          Product Type: Wireless Access Point
          Country Of Origin: Taiwan
          Brand Name: Meraki
          Form Factor: Wall Mountable
          Manufacturer: Cisco Systems, Inc
          Product Model: MR30H
          Product Name: 802.11ac Wave 2 Wireless With Integrated Gigabit Switch
          Manufacturer Part Number: MR30H-HW
          Manufacturer Website Address: http://www.cisco.com
          Packaged Quantity: 1
          Package Contents:

          • 802.11ac Wave 2 Wireless With Integrated Gigabit Switch
          • 2 x Security Screw
          • Wall Mount Bracket

          Limited Warranty: Lifetime
          Weight (Approximate): 14.40 oz
