Cisco Catalyst 9400 Series 48-Port Upoe W/ 24P Mgig 24P Rj-45

Cisco Catalyst 9400 Series 48-Port Upoe W/ 24P Mgig 24P Rj-45

SKU:C9400-LC-48UX

Regular price $8,401.60
Regular price Sale price $8,401.60
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

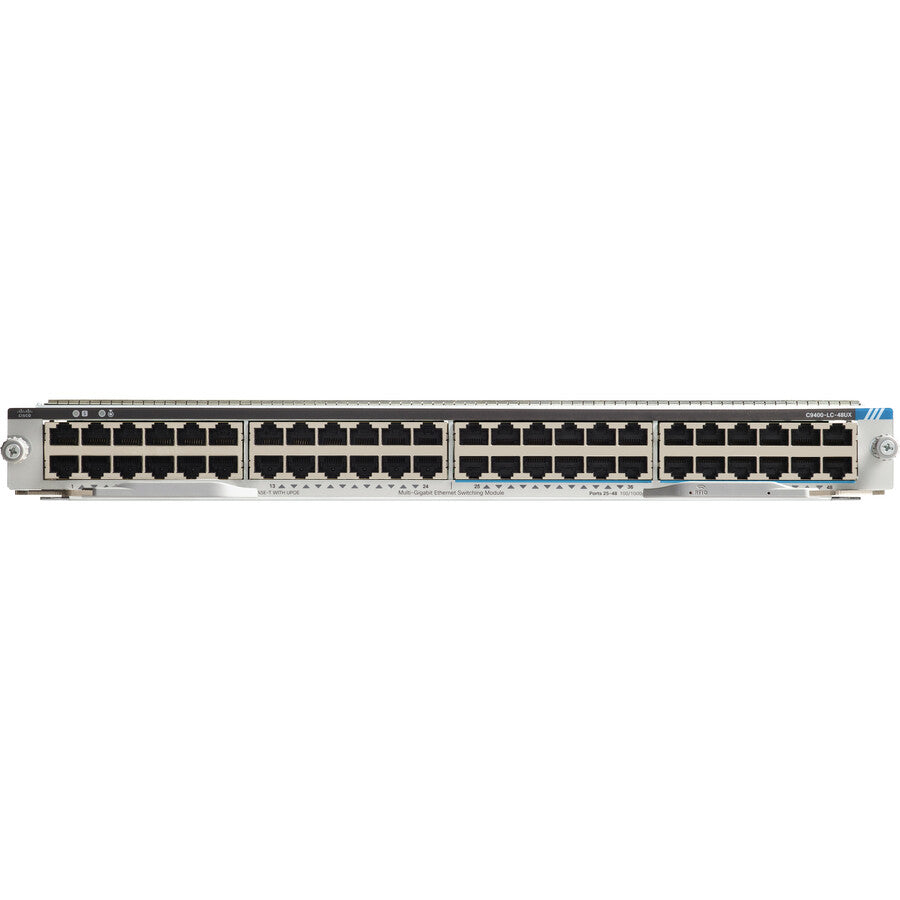

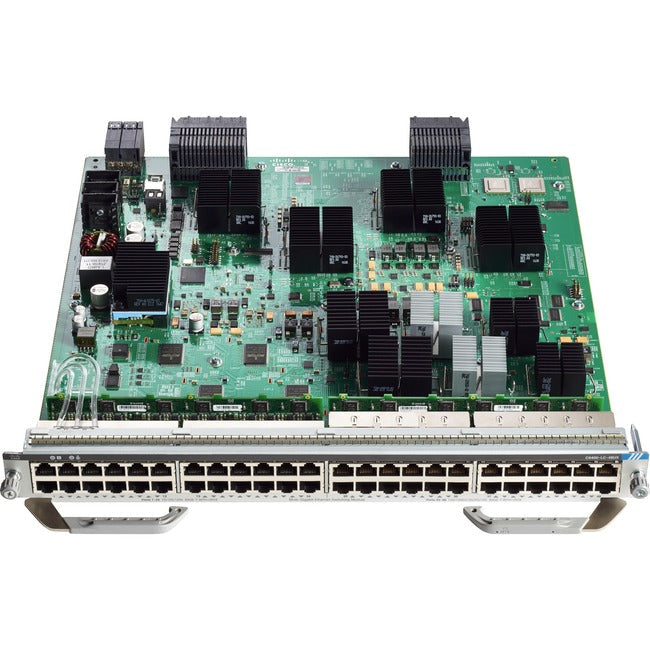

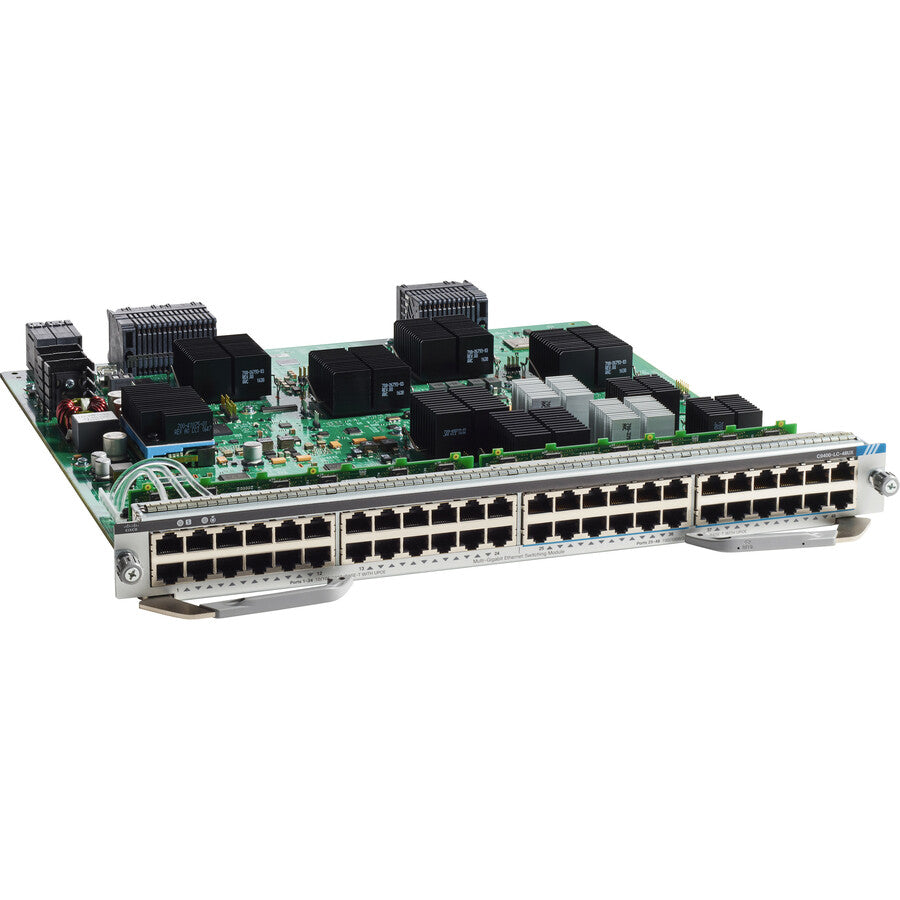

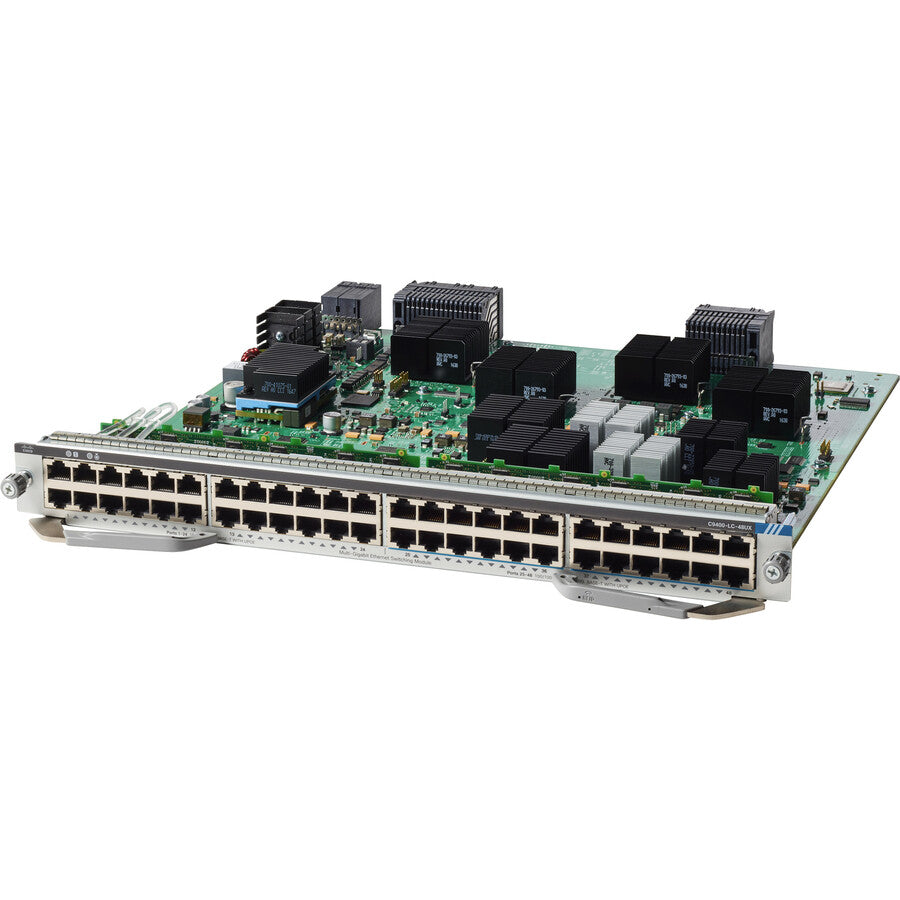

          Cisco Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45

          Cisco Catalyst 9400 Series Multigigabit line card

          The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps, 1-Gbps, 2.5-Gbps, and 5-Gbps speeds on existing Category 5e and 6 cable, and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE), PoE Plus (PoE+), and Cisco Universal PoE (Cisco UPOE) to deliver 15W, 30W, or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones, IPTVs, surveillance cameras, virtual desktop clients, and many others-without having to install extra wall or ceiling circuits, while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform, while enabling Multigigabit Wi-Fi speeds.

          Features

          • 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
          • Speeds of 100/1000 Mbps, 2.5/5 Gbps, and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
          • Nonblocking up to 1000 Mbps on all ports
          • RJ-45 interface on all ports
          • Supported on Cisco IOS® XE Software Release 16.6.2 or later
          • Cisco UPOE: Capable of up to 60W on all ports in the line card
          • Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
          • IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
          • IEEE 802.3af/at and Cisco prestandard PoE
          • IEEE 802.1AE and Cisco TrustSec® capability in hardware (software roadmap)
          • Hardware ready for IEEE1588/802.1AS, Precision Time Protocol (PTP) used for time synchronization across the network for applications such as video and audio (software roadmap)
          • L2-4 Jumbo Frame support (up to 9198 bytes)
          • Enterprise and commercial: Designed to power next-generation IP phones, wireless access points, wireless base stations, video cameras, virtual desktop clients, and other PoE/Cisco UPOE devices
          • Support for campus and branch applications requiring enhanced performance for large file transfers and network backups

          • Twisted Pair media support for efficient and reliable connectivity

          • Optimize the network's performance with 10 Gigabit Ethernet connectivity

          • With 10GBase-T technology, enjoy up to 10Gbps data transfer rate over twisted pair cable

          Product Type: Expansion Module
          Brand Name: Cisco
          Compatibility:

          Cisco Catalyst 9400 Series Supervisor Engines:

          • C9400-SUP-1
          • C9400-SUP-1XL

          Form Factor: Plug-in Module
          Manufacturer: Cisco Systems, Inc
          Product Model: C9400-LC-48UX
          Product Name: Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45
          Manufacturer Part Number: C9400-LC-48UX
          Manufacturer Website Address: http://www.cisco.com
