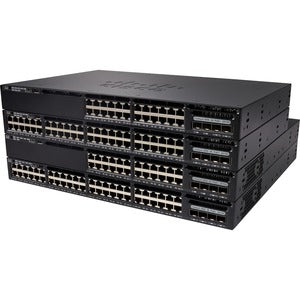

Cisco Catalyst 3650-8X24UQ-E Switch WS-C3650-8X24UQ-E

Cisco Catalyst 3650-8X24UQ-E Switch
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE® on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.

Product Overview

• Integrated wireless controller capability with:
• Up to 40G of wireless capacity per switch (48-port models)
• Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)

• 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
• 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE+ models with EEE
• Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports
• 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments
• Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
• Dual redundant, modular power supplies and three modular fans providing redundancy
• Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
• Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
• Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
• Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
• Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
• Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

• Features 24 networking ports to meet the requirements of the most demanding workgroups


• Cascade to other network devices through the uplink port to expand your local area network


• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity


• Can work as layer 3 routing for scalable network design


• Management capability provides control over setup and configuration of your network


• Built-in power supply to ensure all components are being supplied with accurate voltage


• Rack mounting enables you to organize wires & secure cables for professional installation

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Compatible Rack Unit: 1U
Product Series: 3650
Brand Name: Cisco
Form Factor: Desktop
Manufacturer: Cisco Systems, Inc
Product Model: 3650-8X24UQ-E
Product Name: Catalyst 3650-8X24UQ-E Switch
Product Line: Catalyst
Manufacturer Part Number: WS-C3650-8X24UQ-E
Manufacturer Website Address: http://www.cisco.com
Package Contents:

• Catalyst 3650-8X24UQ-E Switch
• 1100WAC Power Supply
