BLACK BOX

Cat6 550-Mhz Locking Snagless Stranded Ethernet Patch Cable-Unshielded(Utp), Cm Bbx-C6Pc70-Or-100

Cat6 550-Mhz Locking Snagless Stranded Ethernet Patch Cable-Unshielded(Utp), Cm Bbx-C6Pc70-Or-100

SKU:BBX-C6PC70-OR-100

Regular price $32.72
Regular price Sale price $32.72
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

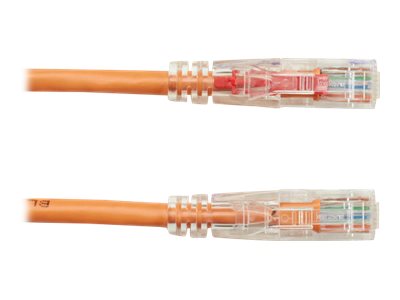

          Black Box GigaTrue 3 Cat.6 UTP Patch Network Cable

          Premium Performance

          Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

          These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.

          Locking Options Available

          These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).

          Locked: Red Pin Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.

          Secured: Green Pin Prevent accidental disconnects in the office, manufacturing and industrial applications and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.


          • Ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications

          • Snagless boots prevent connector damage due to snags during installation

          • Superior near-end crosstalk (NEXT) compared to standard CAT6 cable

          • Connector designed for an insertion and extraction life of 750 cycles

          • Cabling ETL verified to ANSI/TIA-568-C2

          • 50-micron gold-plated contacts provide superior conductivity

          • Cable tested to 550 MHz, surpassing 250-MHz CAT6 standard

          • Two levels of lockability

          Product Type: Network Cable
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Jacket Material: Polyvinyl Chloride (PVC)
          Product Color: Orange
          Brand Name: Black Box
          Manufacturer: Black Box Corporation
          Product Name: GigaTrue 3 Cat.6 UTP Patch Network Cable
          Product Line: GigaTrue 3
          Manufacturer Part Number: C6PC70-OR-100
          Manufacturer Website Address: http://www.blackbox.com
          Limited Warranty: Lifetime
