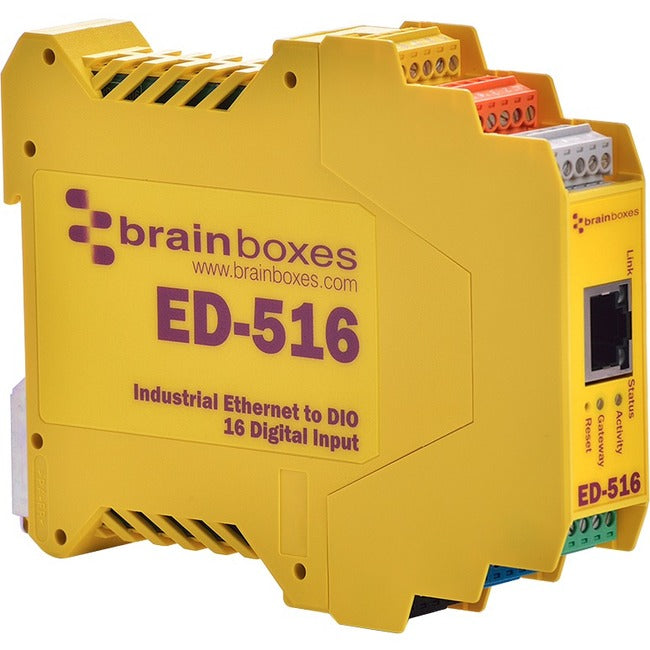

Brainboxes - Ethernet to 16 Digital Inputs + RS485 Gateway
Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU.
The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
More from the Manufacturer
- Software APIs for Visual Basic, C# and more
- -30°C to +80°C Temperature range

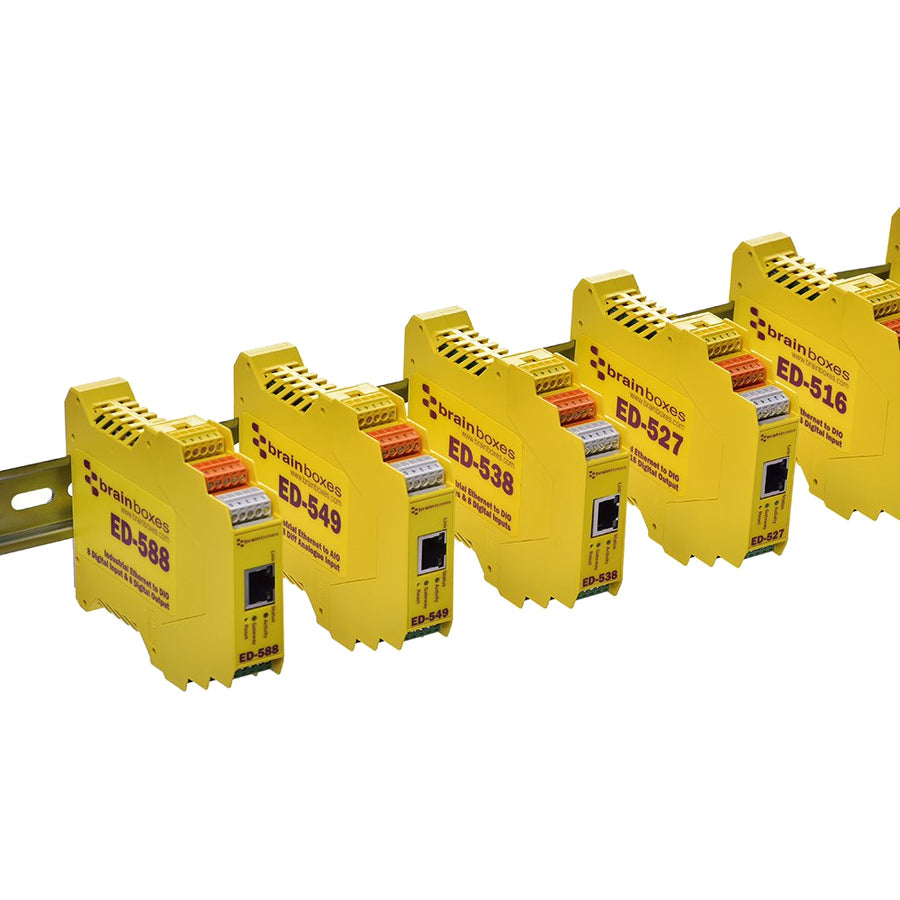

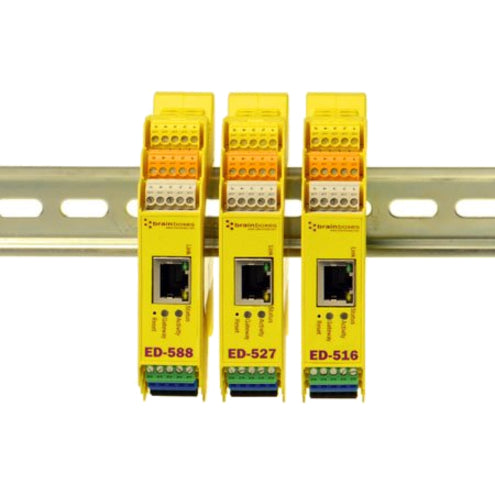

- Factory floor process control and automation, Integrated DIN rail mount
- Supports simple ASCII or industry standard Modbus TCP
- 16 Digital Inputs and a RS485 Gateway Port
- Monitor any input from TTL to high voltage high current industrial devices
Product Type: Ethernet To Digital IO Module
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Manufacturer: Brainboxes Limited
Product Model: ED-516
Product Name: Ethernet to 16 Digital Inputs + RS485 Gateway
Manufacturer Part Number: ED-516
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- Ethernet to 16 Digital Inputs + RS485 Gateway
- Installation CD (with Manual, Microsoft Signed Drivers & Utilities)
- Quick Start Guide
Limited Warranty: Lifetime
Weight (Approximate): 4.73 oz
