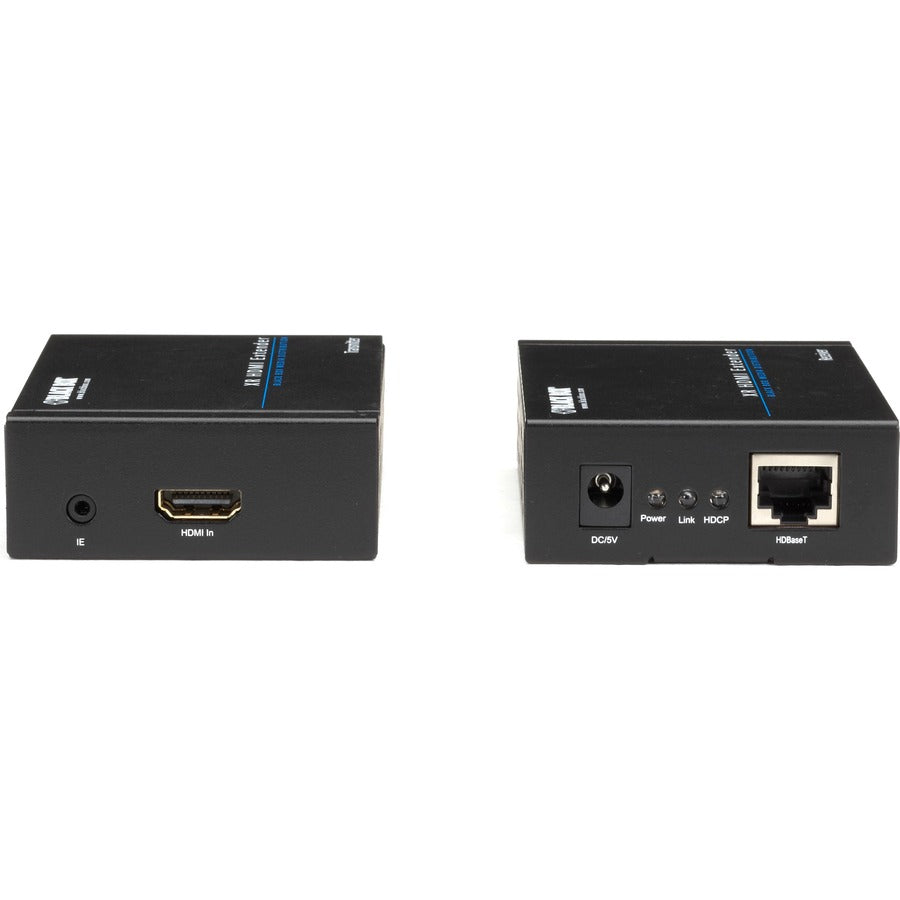

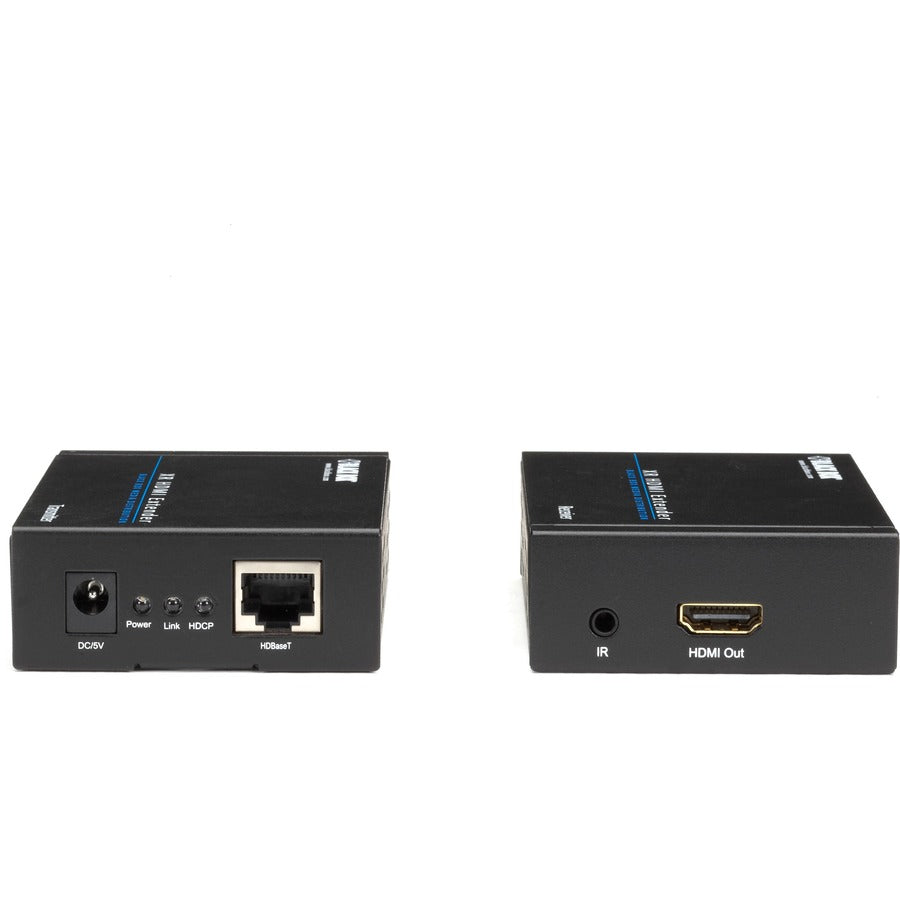

Black Box XR HDMI and IR Extender
Extending over a single CAT5e/6 cable, the transmitter-receiver combo makes it easy to send digital 1080p-quality video and audio plus IR remote control signals up to 328 feet (100 m).
Reduced cabling requirements.
The XR HDMI and IR Extender transmits uncompressed full HD digital video and audio plus data control signals - all over a single copper cable.
By using just one CATx run to reach a remote screen, you can get away with using a single, existing Ethernet cabling drop for multimedia distribution. Reach digital signage or monitors without adding and having to maintain a jumble of cables and wiring behind the screen.
You also get simplified control. The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.
Designed for emerging HDMI technology.
The extender is ideal for applications requiring greater distance for high-quality video resolutions on HDTV displays or projectors. It supports 340 MHz/3.4 Gbps of HDMI video bandwidth per channel and 10.2 Gbps on all channels.
What's more, the XR HDMI and IR Extender use CATx based technology, so it has the capacity to extend both HDMI and control signals. It also supports the resolutions of current and emerging video display devices, such as the latest 3D screens and future HD formats.
It works with the latest source devices, too. Use it to extend HDMI from a newer consumer electronics device that provides uncompressed-only output. It also supports the resolutions of current and emerging video display devices, such as the latest 3D screens and future HD formats.
For high-quality sound, the XR HDMI and IR Extender transmits uncompressed LPCM signals as well as compressed audio, such as DTS-HD and Dolby TrueHD audio, as part of the HDMI signal.
* NOTE: Distance depends on the characteristics and quality of the cable and the type of HDMI source and display.
- Includes transmitter, receiver, IR emitter, and IR receiver
- Wallmountable for space-saving installation
- No software or driver installation required
- HDCP compliant and Blu-ray ready
- Provides 10.2 Gbps of HDMI video bandwidth on all channels
- Supports 1080p video at 60 Hz and 48-bit pixel rates
- Great video capacity and 3D support
- Supports IR extension with CEC passthrough. Control source devices at the screen
- Extends uncompressed HD video, audio, and control signals up to 328 feet (100 m)*
- Uses a single CAT5e/6 run, reducing cable clutter and simplifying HDMI® signage deployment
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Condition: New
Transmitter Height: 1"
Transmitter Width: 2.60"
Transmitter Depth: 3.90"
Transmitter Weight (Approximate): 6.40 oz
Brand Name: Black Box
Form Factor: Wall Mountable
Manufacturer: Black Box Corporation
Product Name: XR HDMI and IR Extender
Manufacturer Part Number: VX-HDMI-TP-100M
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Transmitter
- Receiver
- 2 x Power Supplies
- IR Emitter
- IR Receiver
- 4 x Wallmount Brackets With (8) Screws
- User Manual
Limited Warranty: 3 Year
