Black Box Serial/Terminal Block Data Transfer Adapter ME721A-M-R3

Description :

Black Box Serial/Terminal Block Data Transfer Adapter

For an interface-powered modem, the SHM-NPR really packs a punch. Forget about the 50-foot (15.2-m) RS-232 limit. This simple, plug-in SHM pushes data up to 1.2 miles (2 km) at 19.2 kbps or more than 5 miles (8 km) at 2400 bps.

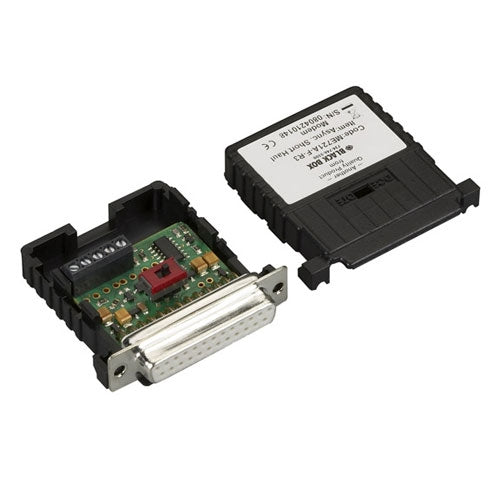

This 4-screw SHM has a DB25 male connector that plugs into your terminal.

To connect your asynchronous devices to a host, use a pair of our SHM-NPRs - or a single SHM-NPR and a Short-Haul Modem-B Async (ME800A-R3). The SHM-NPR is powered from the RS-232 interface. If your device doesn't provide interface power, use the ME800A-R3 on one side of the line.

• Full duplex operation over 4-wire CATx


• Data rate up to 19.2 kbps


• Range of up to 8 km (5 miles) at 19.2 kbps over 24 AWG lines


• Transformer isolation to protect unit


• DCE/DTE switch for easy direct connection no special cables needed.


• Interface powered by handshake signals no AC power required

Product Type: Data Transfer Adapter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Serial/Terminal Block Data Transfer Adapter
Manufacturer Part Number: ME721A-M-R3
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 2
Limited Warranty: 1 Year
Weight (Approximate): 7.05 oz
