Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port TL421-C

Description :

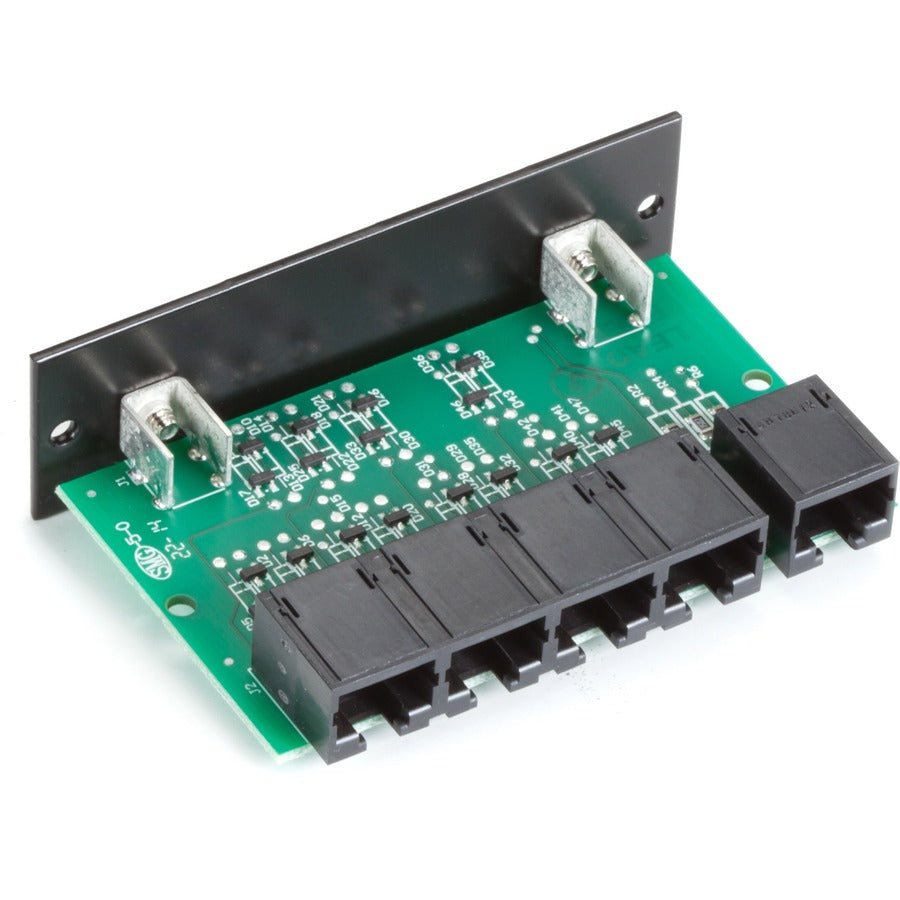

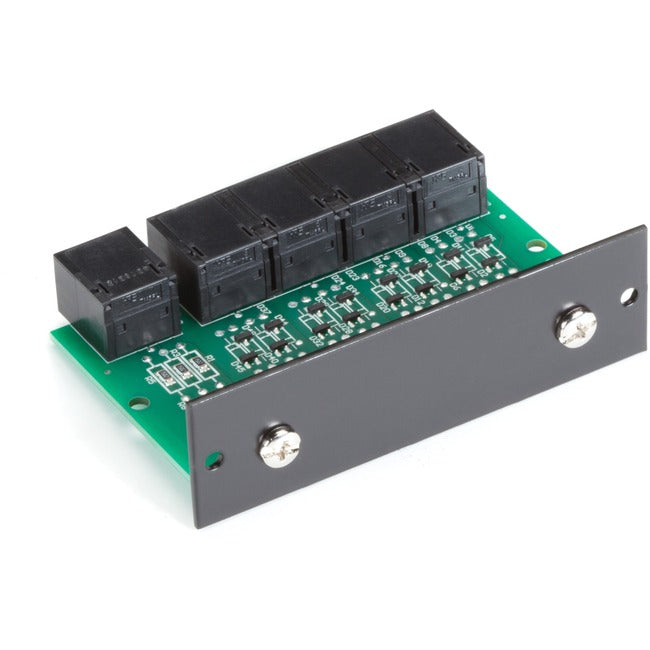

Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port

Used with the RS-232 Modem Splitter Rackmount Chassis - 2U (TL400A), this splitter makes it easy and affordable for four terminals to share a single modem.

With this system, you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.

Plus, it's easy to set up and use. There are no user-configurable switches, jumpers, or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it, then power up your modem and terminals as normal.

The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.

NOTE: Only one terminal device can send data to the modem at a time.

• RS232 data output by the attached terminal devices is logically OR gated by the modem splitter and then transmitted to the modem.


• transparent to data formats, rates & protocols.


• Only one terminal device can send data to the modem at a time.


• Passive, non-powered. Operates transparent to data formats and speeds.


• Transmits data received from the modem to all attached terminal devices.


• Enables four RS-232 terminal devices to share a single modem.

Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: RS232 Passive Splitter Rackmount Card - RJ45, 4-Port
Manufacturer Part Number: TL421-C
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
Weight (Approximate): 1.59 oz
