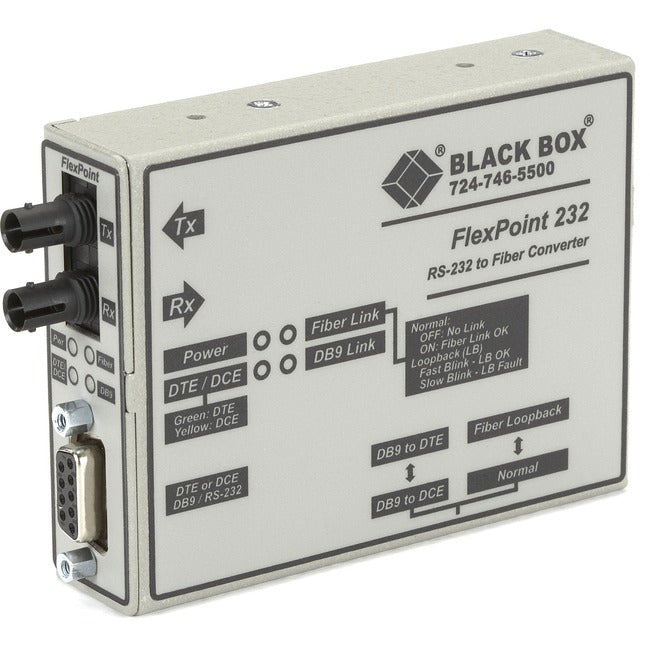

Black Box Flexpoint Async Rs232 Extender - Fiber Db9 Female St Mm 5-Km

Description :

Black Box Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km

• Autosenses speeds up to 115.2 kbps.
• Works as a standalone or a hot-swappable chassis-based extender.
• Easy to install.
• Includes a DC power supply. Or you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
• Features DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling.
• Supports half- and full-duplex.
• Remote loop capability for remote fiber testing and LEDs for status monitoring.

Extend async RS232 devices beyond the 50 ft limitation using multimode fiber cables at data rates up to 115.2 kbps and reach distances of 3.1 mi. (5 km). Serial extenders work well in factory automation, building automation, and process automation where PLC's with RS232 interfaces are used to control devices. The ability to extend the distance to their devices over multimode fiber while also adding protection from electrical interference, which can be caused by large motors, which are prevalent in these environments, is very beneficial.

• Full duplex operation over MM fiber


• Data rate up to 115.2 kbps


• Range of up to 5 km (3.1miles) at 115.2 kbps over MM fiber


• DCE/DTE switch for easy direct connection no special cables needed.


• Remote loop capability for remote fiber testing and LEDs for status monitoring.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Wall Mountable
Manufacturer: Black Box Corporation
Product Name: Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km
Product Line: FlexPoint
Manufacturer Part Number: ME661A-MST
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km
• DC Power Supply (9 VDC/500 mA or 5 VDC/750 mA)

Limited Warranty: 2 Year
Weight (Approximate): 6.40 oz
