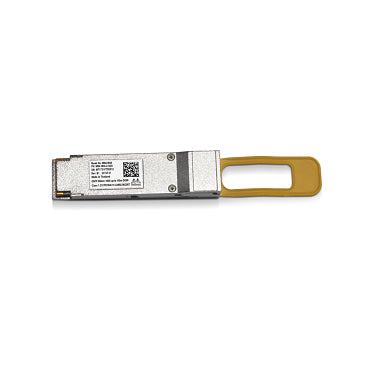

Axiom 100GBase-ER4L QSFP28 Transceiver for Mellanox - MMA1L10-CR-40 - For Data Networking,

Description :

100 Gbit, QSFP28, 1310nm, Silver

Mellanox Technologies MMA1L10-CR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: QSFP28. Input voltage: 3.6 V, Power consumption (typical): 3.5 W. Width: 18.7 mm, Depth: 123.3 mm

Mellanox MMA1L10-CR Optical Transceiver 100GbE QSFP28 LC-LC 1310nm LR4 up to 10km

Mellanox 100Gb/s transceiver module is designed for use in 100 Gigabit Ethernet (GbE) links on up to 10km of single mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2 C interface, as specified by the QSFP28 MSA. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side the module de-multiplexes a 100Gb/s optical LAN WDM input into 4 optical signals and then converts them to 4 output channels of electrical data. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
