Aten Usb Dual View Kvm Extender With Deskew-Taa Compliant

Description :

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant

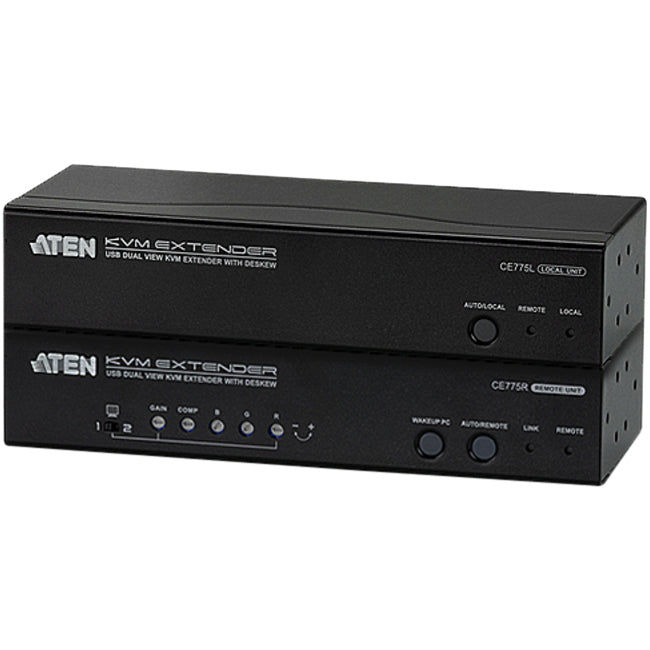

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.

More from the Manufacturer

• Sun/Mac keyboard support and emulation


• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)


• RS-232 Channel - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners


• On Screen Display - conveniently adjust video quality with the intuitive OSD menu system


• Superior video quality - 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)


• Gain/Compensation Control - adjusts signal strength in order to compensate for distance


• PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232


• Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance


• Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles


• Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables

Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 2.98"
Transmitter Width: 41.65"
Transmitter Depth: 7.87"
Receiver Height: 2.98"
Receiver Width: 41.65"
Receiver Depth: 7.87"
Transmitter Weight (Approximate): 1.52 lb
Receiver Weight (Approximate): 1.52 lb
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Name: USB Dual View KVM Extender with Deskew
Manufacturer Part Number: CE775
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• 1 x CE775L USB KVM Extender (Local Unit)


• 1 x CE775R USB KVM Extender (Remote Unit)


• 1 x VGA Cable


• 1 x USB KVM Cable Set


• 2 x Power Adapters


• 1 x Mounting Kit


• 1 x User Instructions
