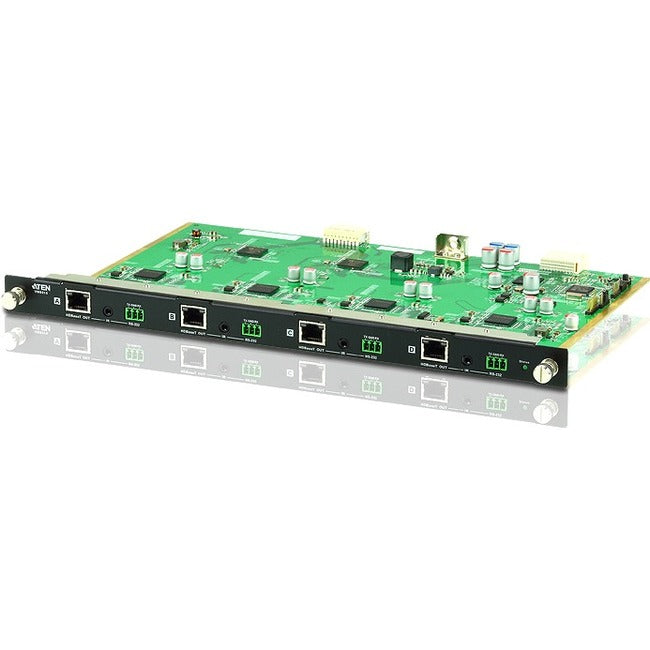

ATEN 4-Port HDBaseT Output Board-TAA Compliant
The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
When the VM8514 HDBaseT Output Board is used in conjunction with the VE805R HDBaseT receiver it features Seamless Switch™ technology and video wall functionality. ATEN's Seamless Switch™ technology provides video switching in real-time with a built in scaler that handles different video resolutions across different displays and video wall features that allow you to configure up 32 profiles for custom layouts via the point-n-click web GUI.
- Hot-swappable design for easy integration of I/O boards
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Connected to VE805R:Seamless Switch™ - features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions, Video Wall - features configurable video wall profiles for custom layouts via point-n-click web GUI
- HDBaseT Anti-jamming - resists signal interference during video transmission using HDBaseT technology
- HDBaseT Connectivity - extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- 4-port HDBaseT Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Product Type: HDBaseT Output Board
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Length: 13.9"
Manufacturer: ATEN Technology Inc
Product Model: VM8514
Product Name: 4-Port HDBaseT Output Board
Application/Usage: Satellite Receiver
Manufacturer Part Number: VM8514
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4-Port HDBaseT Output Board
- 4 x Terminal Block Connectors
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 2.14 lb
