Description
- Two 2.5 GbE ports with up to 5 Gbps under Link Aggregation
- Dual M.2 NVMe SSD ports for fast caching
- Overwhelming 4K experience
- Intel Celeron quad core CPU - 30% faster than previous generation.
- 4GB DDR4-2400 - 30% faster than DDR3
- Supports Wake on LAN and Wake on WAN

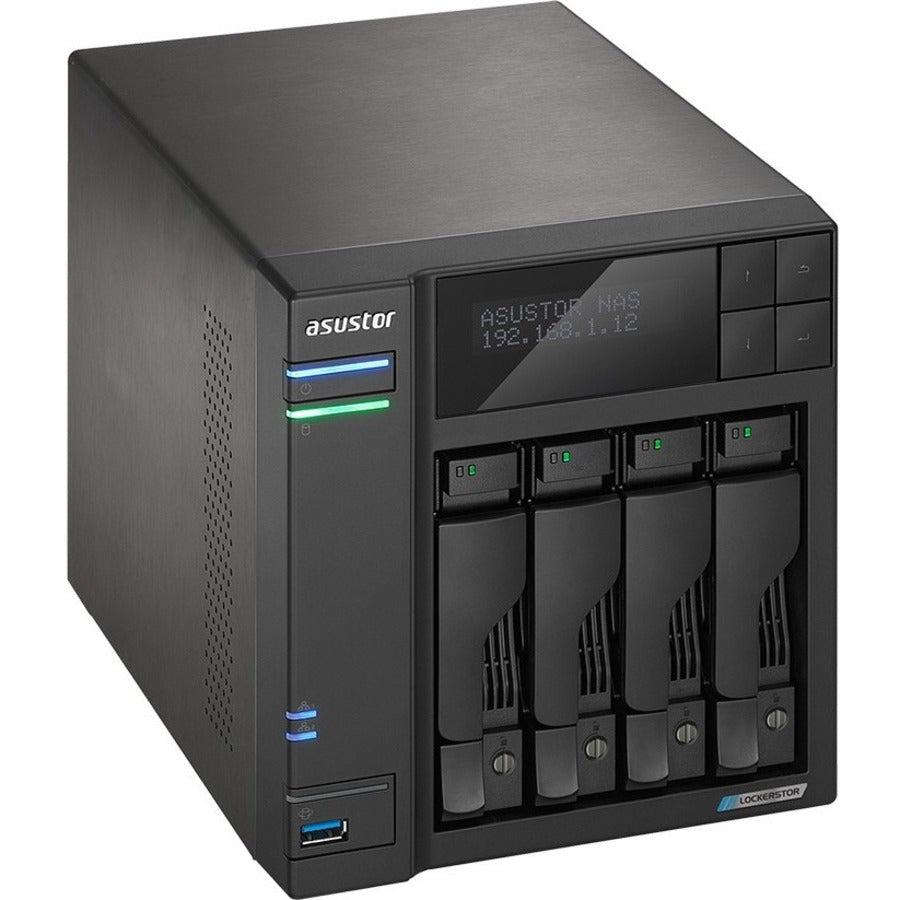

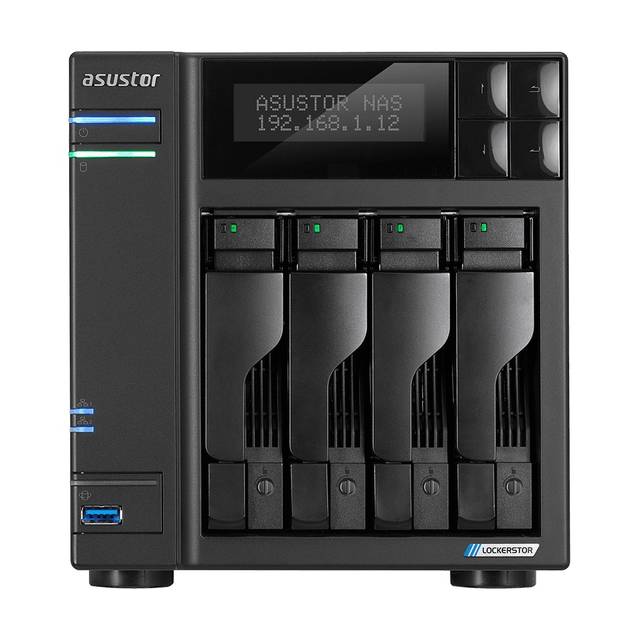

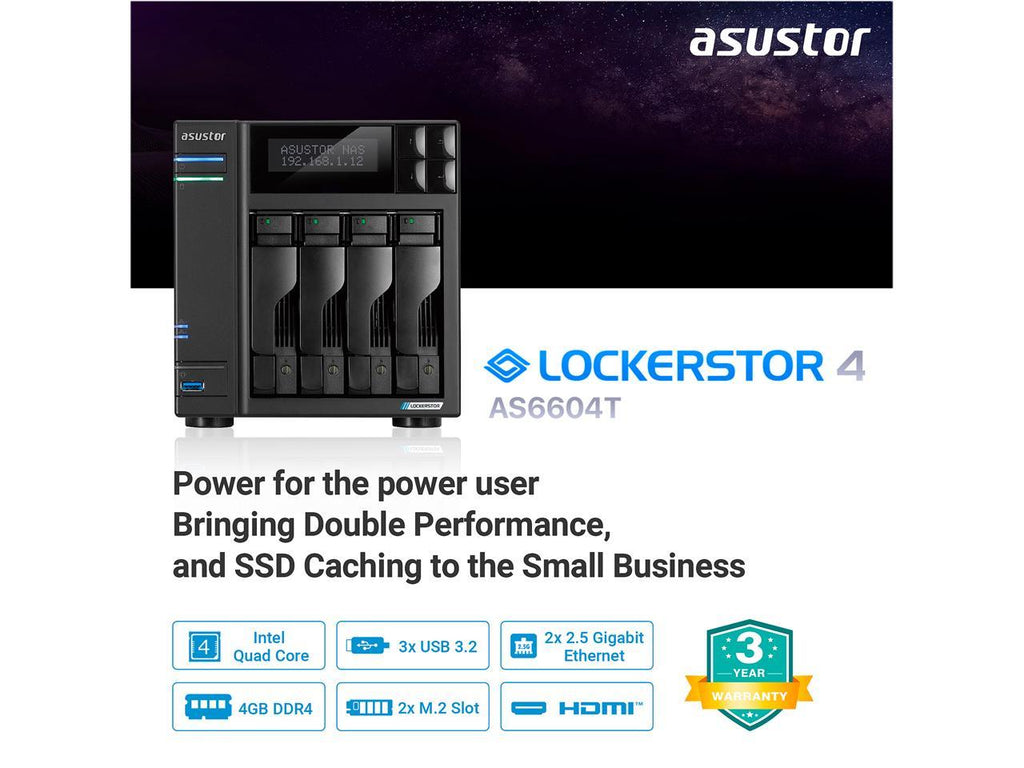

The Asustor AS6604T is a reliable, high-performance 4-bay NAS. In addition to support for four SATA 3 2.5"/3.5" HDDs or SSDs, users can install dual M.2 NVMe SSDs for fast caching. Dual 2.5GbE ports are provided for high-speed data transmission. Any authorized user can access and manage content stored from anywhere with mobile apps or web browser. Comprehensive backup solutions and enterprise virtualization applications make it an ideal choice for small businesses.
All new hardware. Same great case
- Two 2.5 GbE ports with up to 5 Gbps under Link Aggregation
- Dual M.2 NVMe SSD ports for fast caching
- Overwhelming 4K experience
- Intel Celeron quad-core CPU—30% faster than previous generation.
- 4GB DDR4-2400—30% faster than DDR3
- Supports Wake on LAN and Wake on WAN

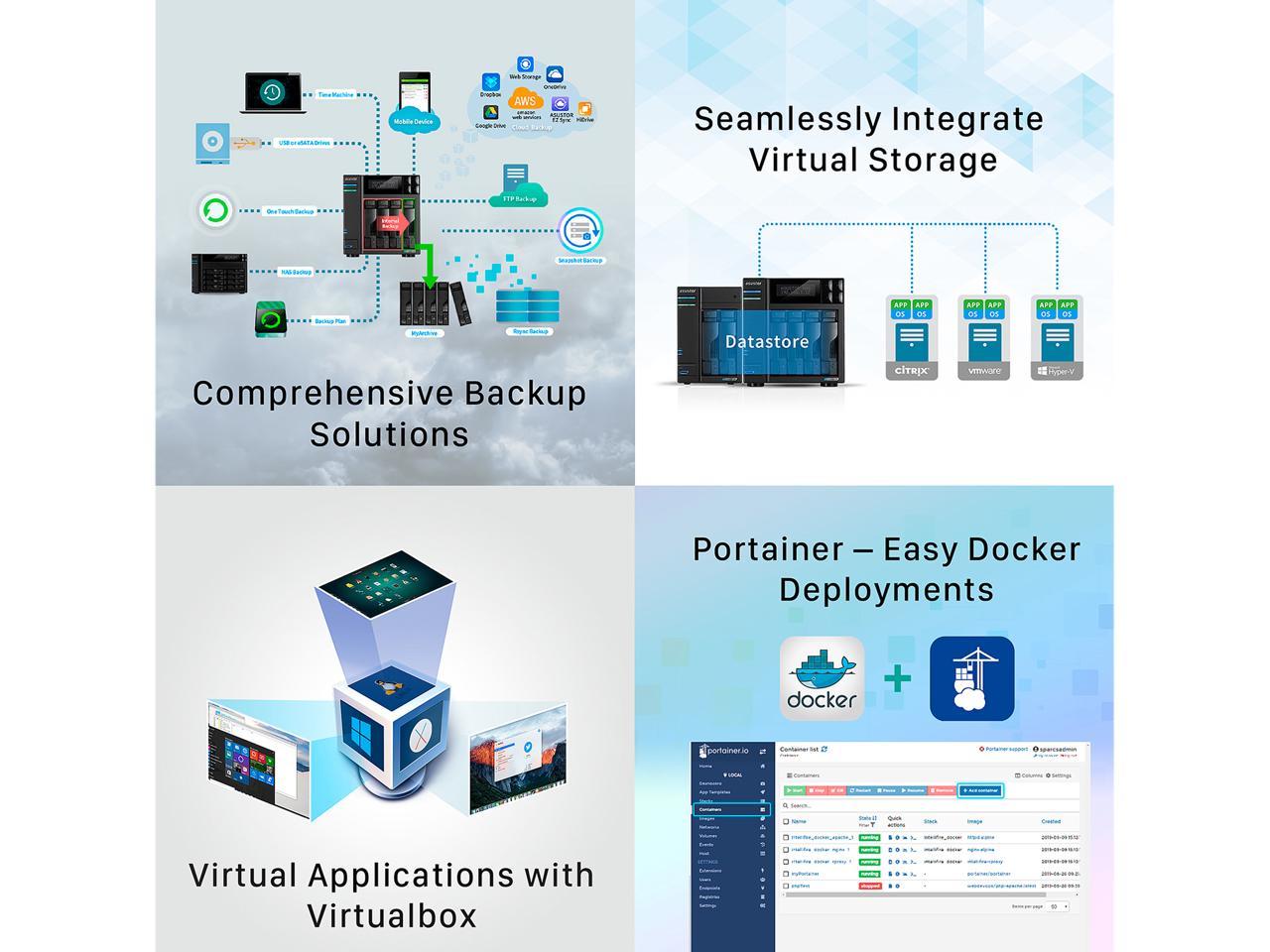

360° Backup solution and enterprise virtualization application
- MyArchive cold storage backups
- Snapshot Center, Cloud Backup Center, DataSync Center
- Complete iSCSI/IP-SAN and NFS support
- VMware, Citrix and Hyper-V ready
- Supports Virtualization and Docker apps
Powered by the latest Intel processor
The Lockerstor 4 utilizes the Intel Celeron J4125 (Gemini Lake) quad-core CPU and is 30% faster than Apollo lake. The Celeron J4125 also doubles the on-chip cache to 4MB, making the Lockerstor 4 one of our fastest NAS devices ever.
Upgradeable 4GB Dual-Channel DDR4-2400 RAM
The Lockerstor 4 comes with 4GB of DDR4 RAM and can be upgraded up to 8GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.
150% Faster with 2.5-Gigabit Ethernet
The Lockerstor 4 provides two 2.5-Gigabit Ethernet ports. Enable up to 150% faster performance than Gigabit Ethernet with compatible hardware and up to 5 Gbps using Link Aggregation.*
*Link Aggregation only supported with compatible hardware. Please check beforehand and verify that Link Aggregation is supported on your equipment.
Windows sequential read and write (RAID 5)
* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.
Easy M.2 SSD installation
Dual M.2 slots for NVMe SSDs for SSD Caching. The Lockerstor 4 is the first two bay NAS with integrated M.2 SSD slots.
*M.2 2280 cards supported with installed mounting holes.
24/7 Reliability and Durability
All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Protected from the Inside and Out
Protect your data from loss, damage and attacks with the Lockerstor 4. A Lockerstor 4 is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- MyArchive offline backup
- AES-256 folder encryption
- Antivirus software – ClamAV
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)
Use mobile apps like AiMaster to power the NAS on or off.
Helps prevent attacks and protect data.
Power outage management
Saves electricity
Comprehensive Backup Solutions
ASUSTOR's comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and Onedrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provide easy backups for desktop and laptops while MyArchive removable hard drives provide long term storage. Btrfs is now supported and with Snapshot Center, can take snapshots of your information in the event of unintentional modification. Restore previous versions easily with Snapshot Center.
Cross-Platform Multi-User Access
ASUSTOR NAS devices provide seamless cross-platform and multi-user access, allowing you to easily connect to your NAS from Windows, macOS or almost any device with a web browser no matter if it is a desktop, notebook, tablet or smartphone.
Custom Off-peak hours
Your time is important, so ADM provides a feature to ensure that your NAS performs at top speed when you want it to. Peak times enable your NAS to turn off certain background processes and maintenance at certain times of the day and are customizable while off-peak hours will return background processes to their normal state. Enable off-peak hours when the NAS is not actively being used, for example, when sleeping to ensure an optimal experience.
Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 40 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
ASUSTOR Live
Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn't require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.
File Editing and Project Collaboration
NextCloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.
Mobile Apps
ASUSTOR's exclusive EZ-Connect technology allows you to connect to your NAS from anywhere with your Android or iOS device to securely access, download, upload and share files and information. ASUSTOR mobile apps securely protect your privacy and data by requiring passwords in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.
App Central
Unleash the unlimited potential of an ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or digital home entertainment, App Central has you covered. With over 200 unique apps, App Central provides you with a virtually boundless variety of applications that to satisfy your digital lifestyle needs. Explore the virtually unlimited potential of your ASUSTOR NAS while creating a personalized experience for yourself.
General Information
| Manufacturer | ASUSTOR |
|---|---|
| Manufacturer Part Number | AS6604T |
| Manufacturer Website Address | http://www.asustor.com |
| Brand Name | ASUSTOR |
| Product Line | Lockerstor 4 |
| Product Model | AS6604T |
| Product Name | Lockerstor 4 AS6604T SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| UPC | 887372013629 |
Processor
| Processor Manufacturer | Intel |
|---|---|
| Processor Type | Celeron |
| Processor Model | J4125 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2 GHz |
| Ethernet Technology | 2.5 Gigabit Ethernet |
|---|

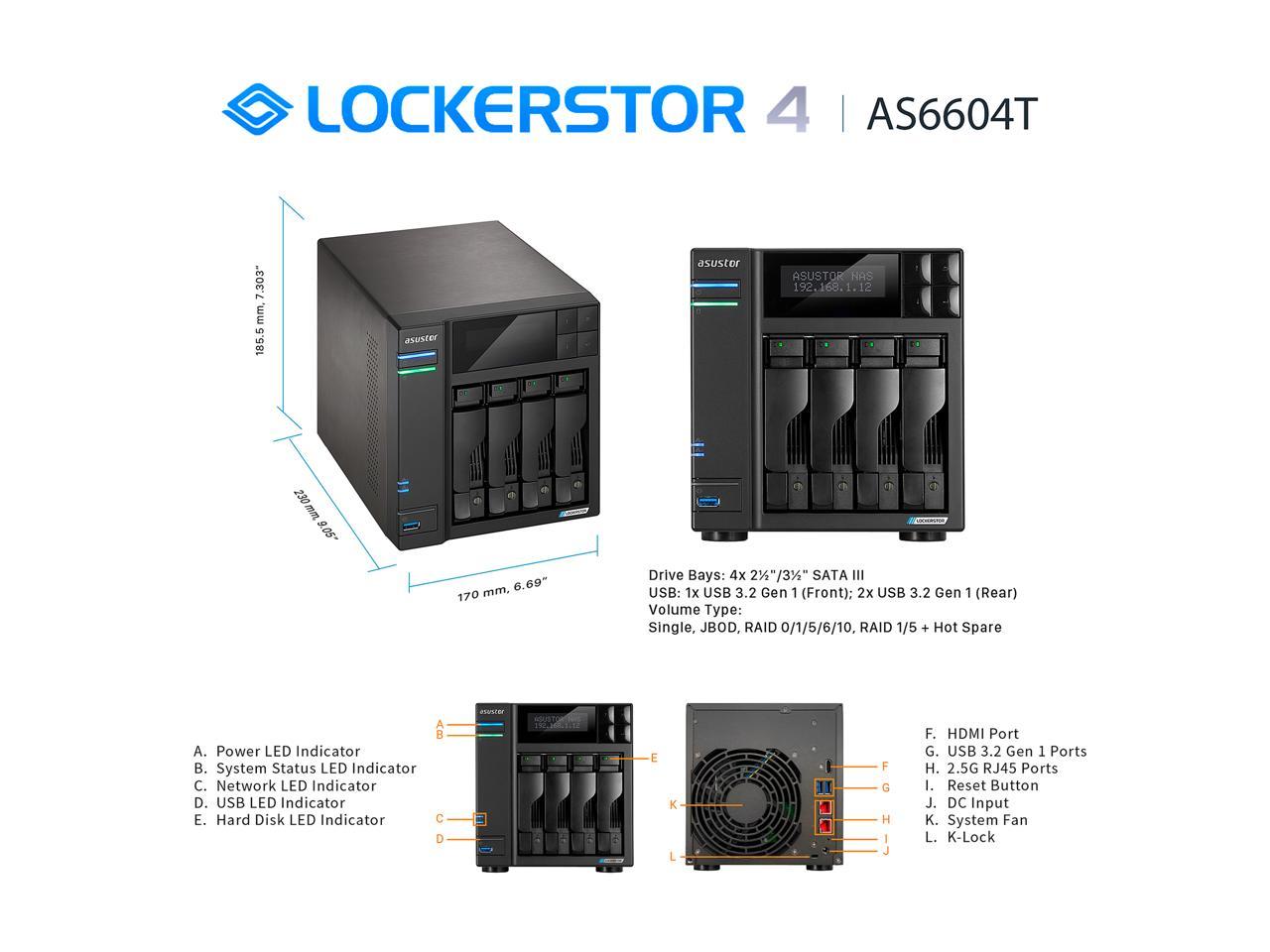

Interfaces/Ports
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Network (RJ-45) | Yes |
| Operating System | ADM 3.5 |
|---|
Power Description
| Maximum Power Supply Wattage | 90 W |
|---|

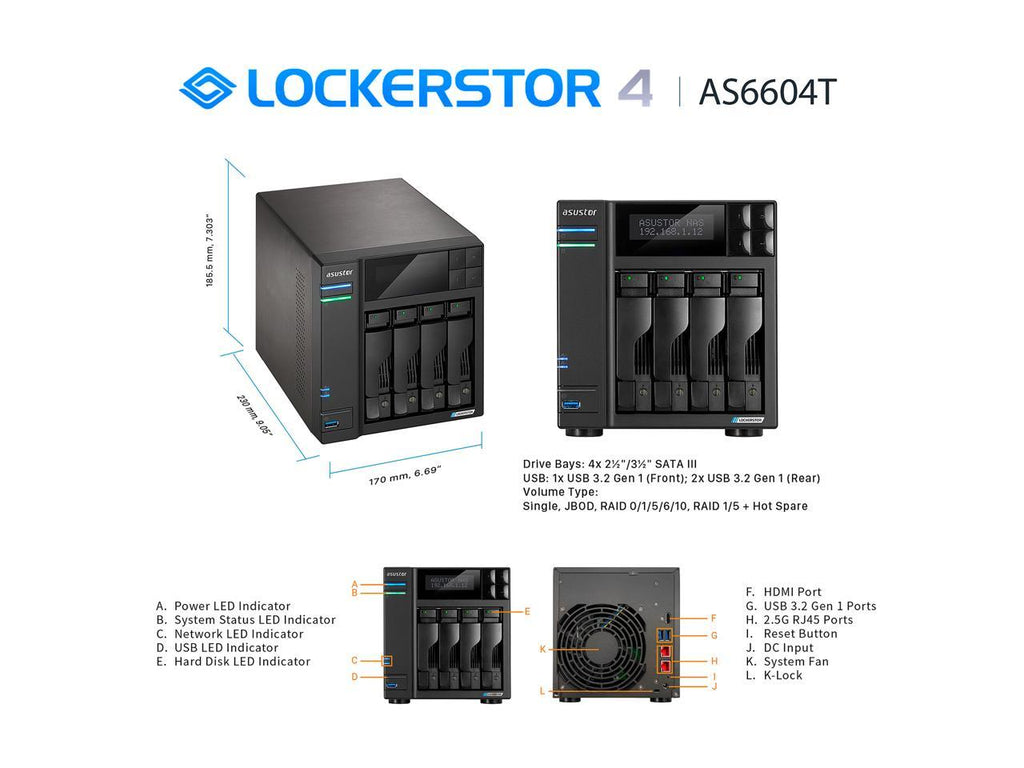

| Height | 7.3" |
|---|---|
| Width | 6.7" |
| Depth | 9.1" |
| Weight (Approximate) | 6.53 lb |
Miscellaneous

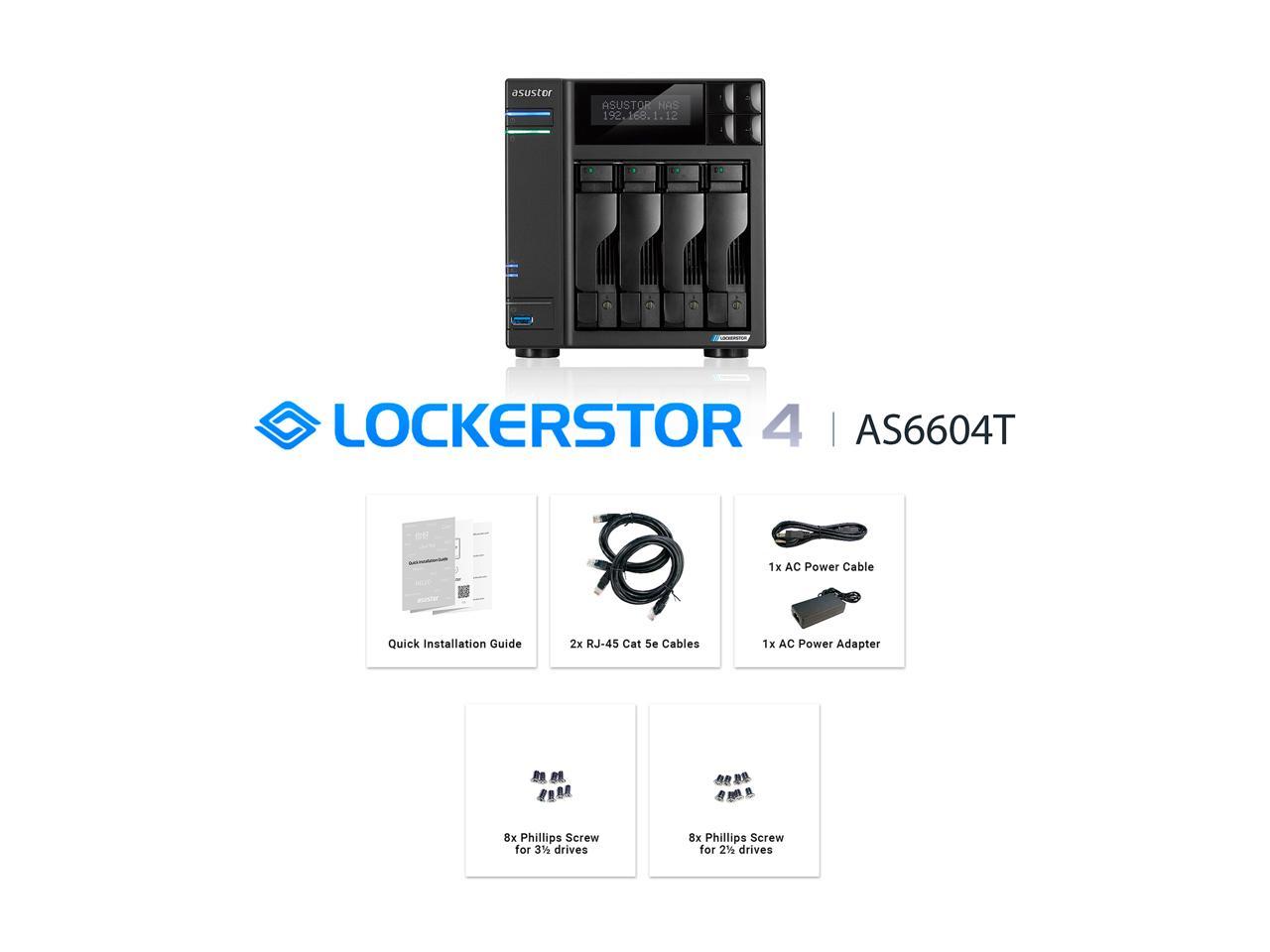

| Package Contents |
|
|---|
Warranty
| Limited Warranty | 3 Year |
|---|
