Asus

Asus Tuf Gaming X570-Pro (Wifi 6) Amd Am4 (3Rd Gen Ryzen Atx Gaming Motherboard)

Asus Tuf Gaming X570-Pro (Wifi 6) Amd Am4 (3Rd Gen Ryzen Atx Gaming Motherboard)

SKU:TUF GAM X570-PRO WIF

Regular price $239.99
Regular price Sale price $239.99
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
          • Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
          • Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
          • Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A / Type-C
          • Gaming Networking: Exclusive onboard 2.5G Intel LAN, Intel WiFi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
          • Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
          • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
          • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
          Product image
          ASUS TUF Gaming X570-PRO (Wi-Fi 6) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard (PCIe 4.0, 2.5 Gb LAN, BIOS Flashback, HDMI 2.1, USB 3.2 Gen 2, Addressable Gen 2 RGB Header and Aura Sync)
          • AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
          • Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
          • Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
          • Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
          • Gaming Networking: Exclusive onboard 2.5G Intel® LAN, Intel® WiFi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
          • Realtek S1200A Codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line-out and 103 dB SNR for line-in
          • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
          • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
          Product image
          DURABLE. STABLE. RELIABLE.

          TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

          When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
          Product image

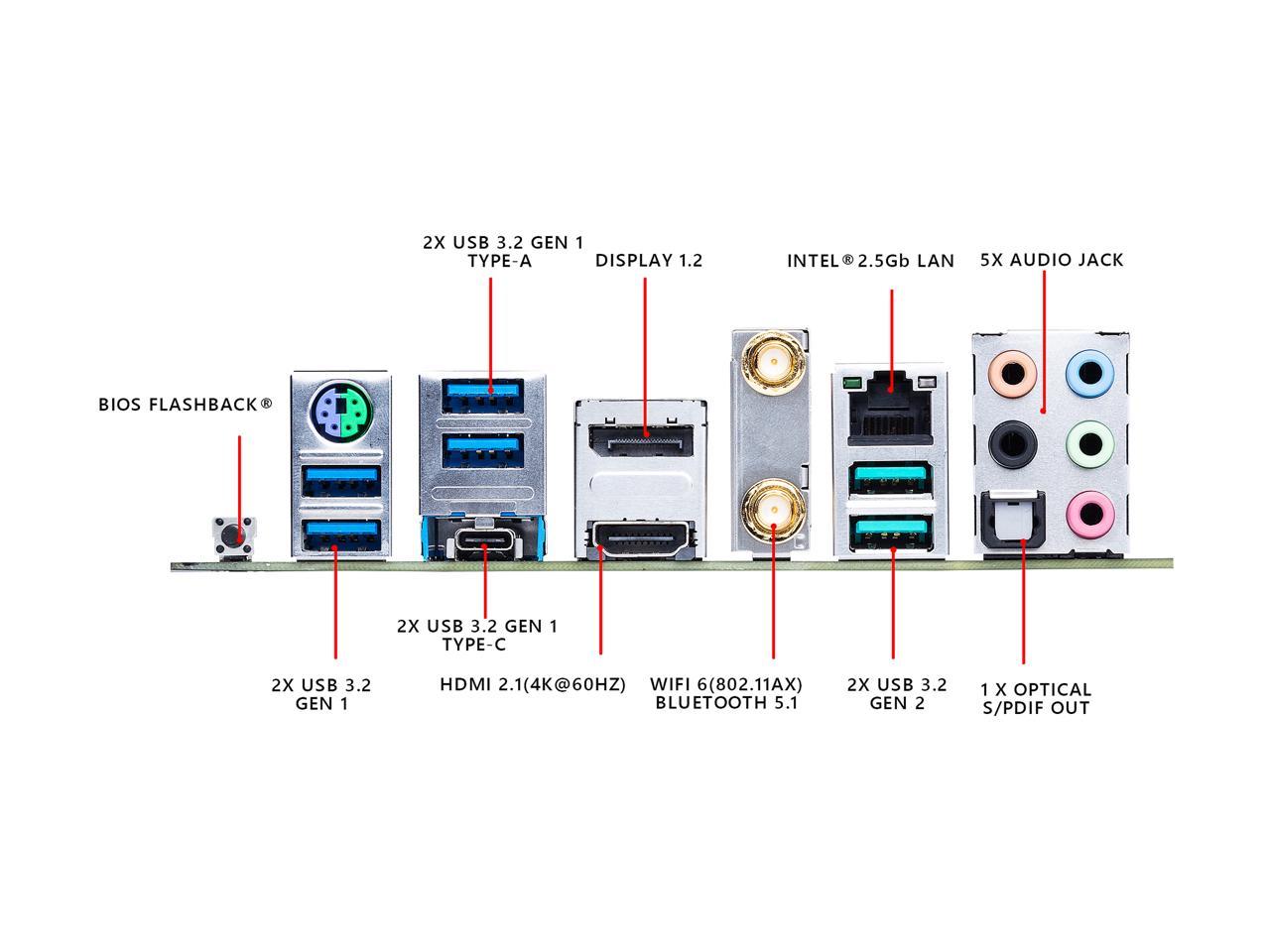

          1. BIOS Flashback™ Button
          2. USB 3.2 Gen 1
          3. Enlarged VRM Heatsink
          4. USB 3.2 Gen 2 Type-C™
          5. Display Port
          6. HDMI Port
          7. Intel® AX200 & BT 5.1
          8. USB 3.2 Gen 2
          9. Intel® I225-V
          10. Audio
          1. 2 x PCIe 4.0 X16 Slots
          • 2-Way CrossFireX™
          • ASUS SafeSlot
          • Realtek® S1200A
            Exclusive DTS Custom for
            GAMING Headsets
          • TUF Gaming Audio Cover
          • Audio Shielding
          • Dedicated audio PCB layers
          • Premium Japanese audio capacitors
          • ProCool Connector
          • Dr. MOS
          • DDR4
          • Addressable Gen 2 RGB header

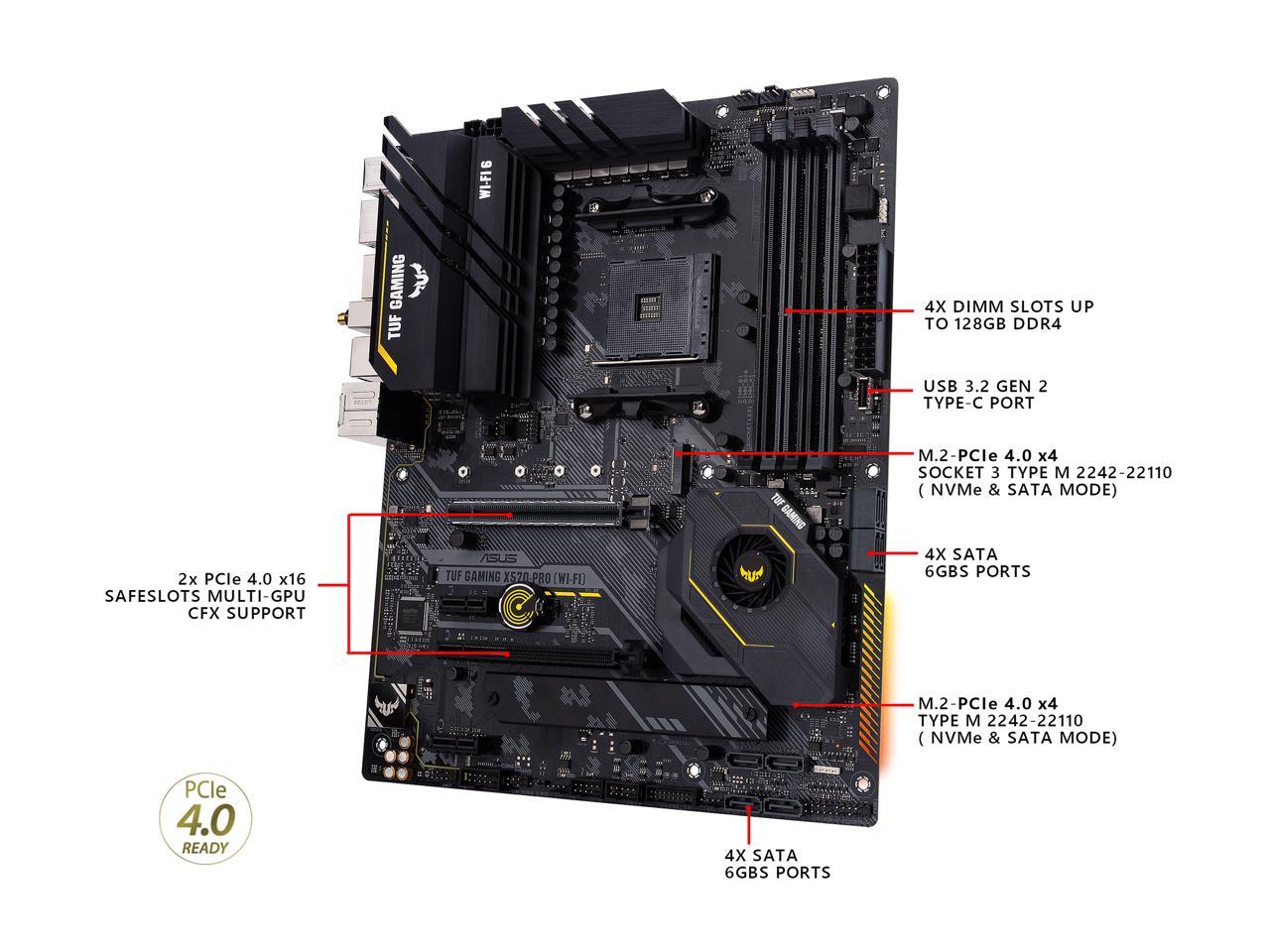

          1. AMD AM4 Socket
          2. 1 x USB 3.2 Gen 2 Type-C Port
          3. 2 x M.2 x4 PCIe Gen 4 & SATA mode
          4. 8 x SATA 3.0 ports
          5. AMD X570 Chipset
          6. Aura Sync
          7. 2 x Front USB 3.2 Gen 1 ports
          8. 4 x Front USB 2.0 ports

          ROCK-SOLID PERFORMANCE

          With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Pro (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
          Product image
          Power
          DRIVER & MOSFET
          Dr. MOS

          The TUF Gaming X570-Pro (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
          Product image
          6-LAYER PCB
          Product image
          6-LAYER PCB DESIGN

          Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.
          POWER CONNECTOR
          Product image
          PROCOOL SOCKETS

          ENHANCED EATX 4-PIN & 8-PIN SOCKETS
          • Solid and more durable
          • Prevent hotspots and connector failure
          Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
          Product image
          TUF COMPONENTS
          Product image
          Product image
          TUF CHOKES

          Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
          TUF CAPACITORS

          +20% temperature tolerance and 2.5X-longer lifespan.
          Product image

          CONTROLLER
          DIGI+ VRM

          The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
          Product image

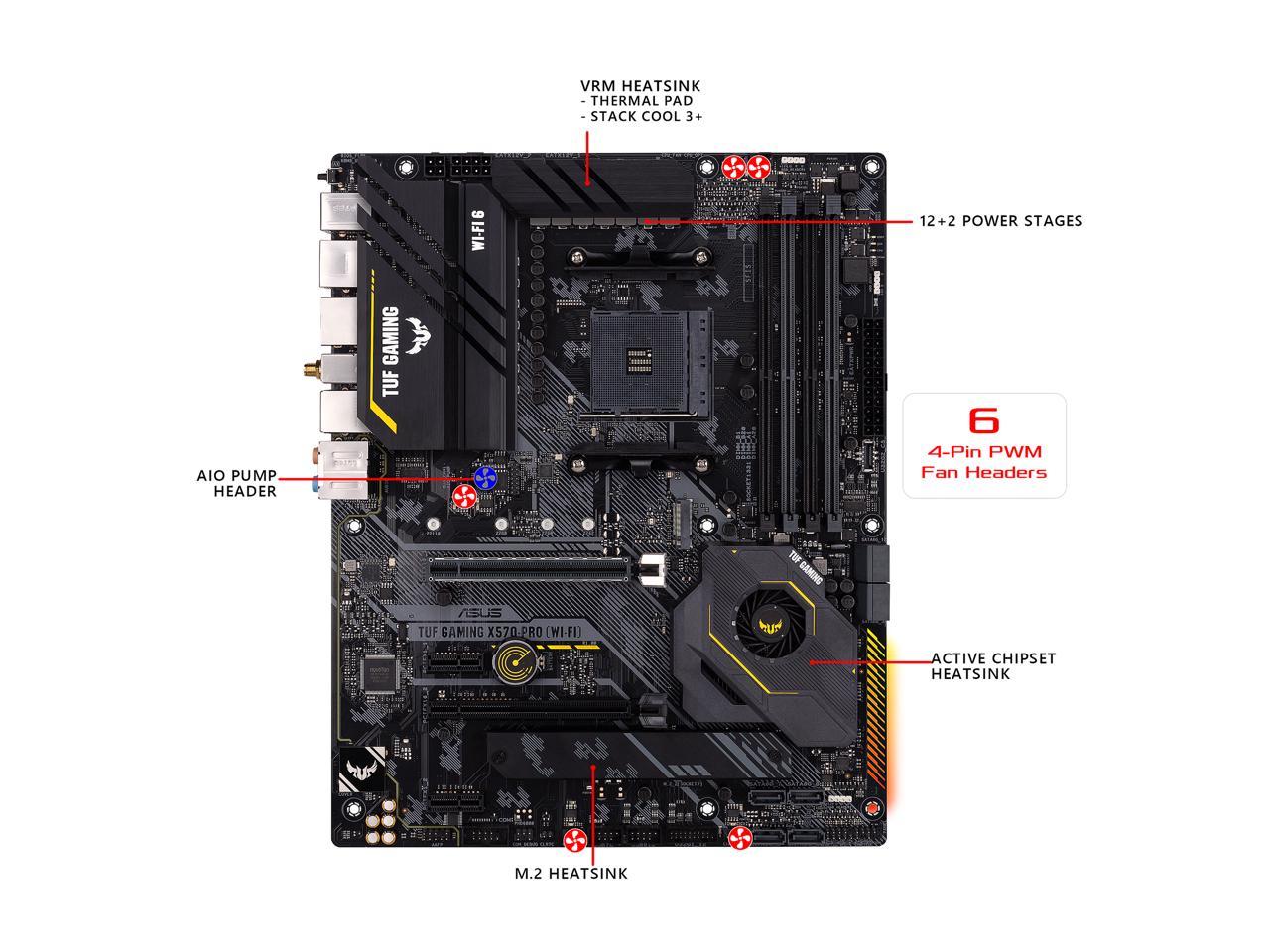

          Cooling
          Product image
          COOLER BY DESIGN

          1. VRM HEATSINK

          Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.

              THERMAL PAD

          High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

              STACK COOL 3+

          2oz-copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

          2. ACTIVE CHIPSET HEATSINK

          A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

          3. M.2 HEATSINK

          The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
          ACTIVE CHIPSET HEATSINK SOLUTION

          PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Pro (Wi-Fi) features an actively cooled heatsink to prevent throttling during sustained transfers.
          Product image
          CUSTOM DELTA SUPERFLO FAN

          The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.


          AIR DUCT

          A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

          FINNED HEATSINK

          The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.

          * L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
          COMPREHENSIVE FAN CONTROLS

          TUF Gaming X570-Pro (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.
          Product image


          Smart protection

          A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.


          Product image
          Memory & Storage
          Product image
          DUAL PCIE 4.0 M.2

          Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

          Badwidth [MB/s]

          PCE 4.0x4
          8066   8066

          PCE 3.0x4
          4032 4032

          *The actual transmission speed will be lower than the theoretical maximum speed.
          ASUS OPTIMEM

          PROPRIETARY MEMORY DESIGN

          ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
          Product image
          ASUS OptiMem advantage:

          ASUS OptiMem
          53.12 V*pS 53.12 V*pS

          Reference Design
          72.51 V*pS 72.51 V*pS



          ASUS OptiMem benefits:
          • Improved memory stability and compatibility
          • Allows lower memory latencies at equivalent voltages
          • Improved memory frequency margin
          Tested by using Synopsys HSPICE simulation software

          EASY PC DIY

          TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
          Product image
          TUF Gaming Alliance
          Product image
          TUF GAMING ALLIANCE

          TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
          Product image
          TUF Protection
          Product image
          SAFESLOT

          SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
          ESD GUARDS

          ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.
          Product image
          KEYBOARDS AND MOUSE CONNECTORS

          Additional on-circuit ESD transient-voltage-suppression.

          VGA PROTECTION

          Additional on-circuit ESD TVS diodes to protect VGA output functionality.

          USB CONNECTORS

          TVS diode for surface-mount and dual in-line package.
          Product image
          TUF LANGUARD

          TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

          DRAM OVERVOLTAGE PROTECTION

          Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
          Product image
          STAINLESS STEEL BACK I/O

          TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
          Product image
          Easy Configuration
          ARMOURY CRATE

          Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
          Product image
          GAMING HIGHLIGHT


          IMMERSIVE GAMING

          TUF Gaming X570-Pro (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
          Product image
          Networking
          Product image
          Intel® WiFi 6 AX200

          The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

          * Actual speed varies, and depends on networking conditions.

          Intel Wireless-AX200 adapter
            2.4 Gbps

          Other Wireless adapter
            0.86 Gbps


          Product image
          INTEL® 2.5 GB ETHERNET

          Intel Ethernet Connection I225-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
          TURBO LAN

          NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

          Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!
          Product image
          1. Real-time speed monitor

          2. Grouping your own favorite list

          3. Set the highest priority with one click

          4. Set priority to speed up your application
          Product image
          Product image
          Product image
          AI Noise-Canceling
          Microphone
          AI NOISE-CANCELING MICROPHONE

          AI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

          *Testing configuration: CPU: AMD Ryzen 5 3600x; Motherboard: ROG STRIX B550-I GAMING; Graphics card: NVIDIA RTX 2060-O6G; DRAM: Hynix 2666 16 GB; Power: Seasonic 430 W; HDD: Seagate M.2 NVME 2 TB; Cooling: Enermax T.B.APOLLISH; Voice Communication App: Discord (In-app noise canceling effects disabled) ; Background noise: Keyboard typing, mouse clicking, people talking, and music playing
          *Actual performance varies by configuration
          3DMARK - FPS (2560X1440)
          Product image
          Product image
          HEAR THE DIFFERENCE
          Product image0:18
          Product image0:18
          AI OFF
          AI ON
            Background noise
            Other human voice
            Human speech
          Product image
          Gaming Audio
          EXCLUSIVE CODEC
          Product image
          REALTEK S1200A CODEC

          1. TUF GAMING AUDIO COVER
          Effective shielding preserves the integrity of audio signals to ensure best quality.

          2. AUDIO ENJOYMENT
          Premium Japanese audio capacitors provide warm, natural, and immersive sound.

          3. EXCLUSIVE S1200A CODEC
          Delivers an expansive soundstage and authorative dynamics.

          4. AUDIO SHIELDING
          Separates analog/digital signal domains, significantly reducing multi-lateral interference.
          SIGNAL-TO-NOISE RATIO

          SPEC COMPARISON
          Product image
          TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality.
          AUDIO EFFECT
          Product image0:31
          DTS CUSTOM FOR GAMING HEADSETS

          Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
          AERIAL MODE

          Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!

          SOUNDSCAPE MODE

          The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!

          TACTICAL MODE

          Shhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!

          Product image
          Aura Sync RGB Lighting
          Product image
          OUTSHINE THE COMPETITION

          A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

          Product image
          Product image
          Product image
          Product image
          Static
          Breathing
          Strobing
          Rainbow
          Product image
          Product image
          Product image
          Product image
          Color Cycle
          Starry Night
          Music Effect
          Smart
          Product image
          ADDRESSABLE GEN 2 RGB HEADER

          TUF Gaming X570-Pro (Wi-Fi)'s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
          THE POWER OF AMD
          Product image
          AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS

          The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7 nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10 Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
          • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
          • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
          • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
          • PCB color and bundled software versions are subject to change without notice.
          • Brand and product names mentioned are trademarks of their respective companies.
          • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
          • *Precise specifications and features vary by model . Please refer to the specification page
          • The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
          • The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.


          Specifications :

          General Information

          UPC 192876900338
