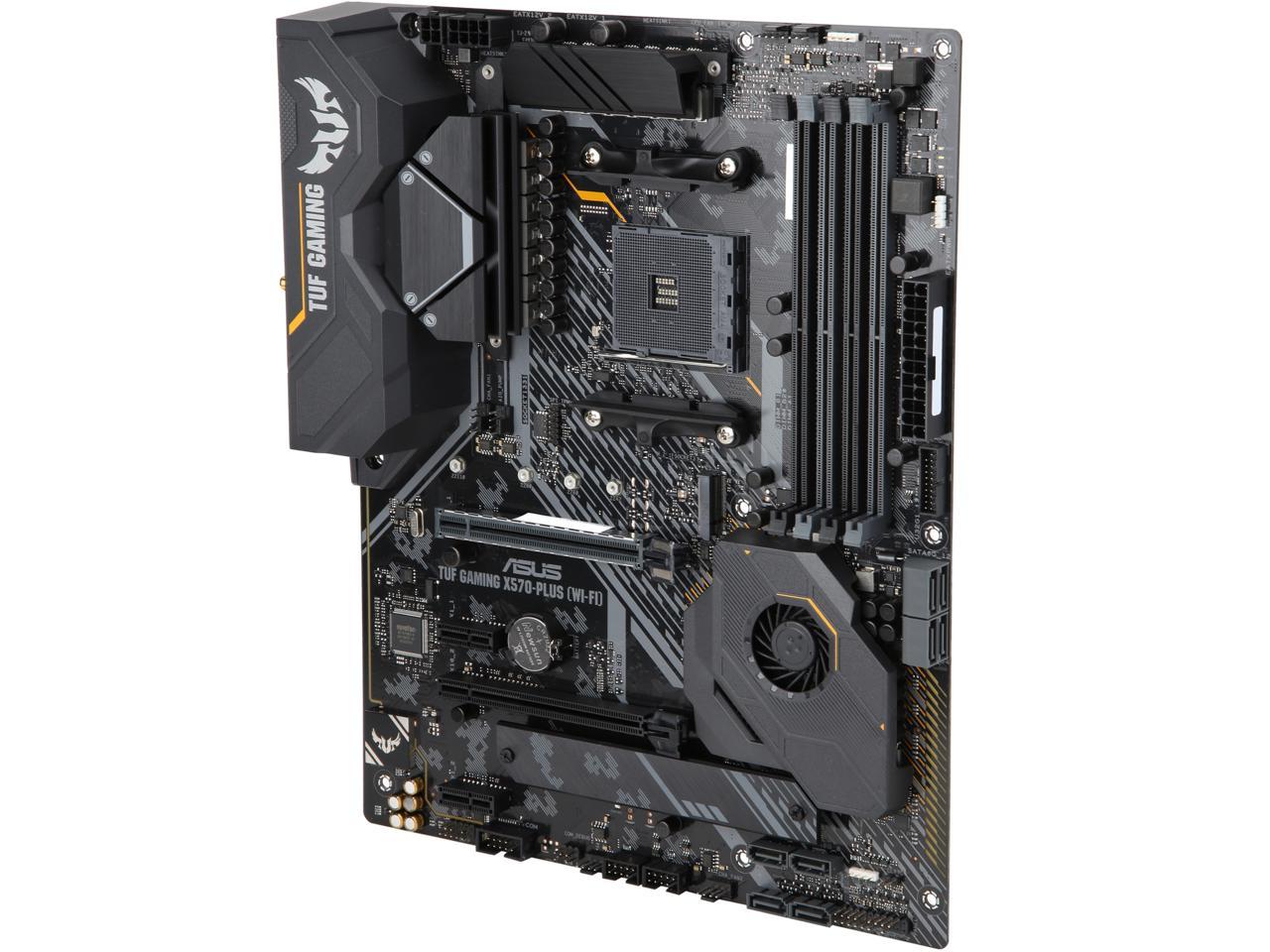

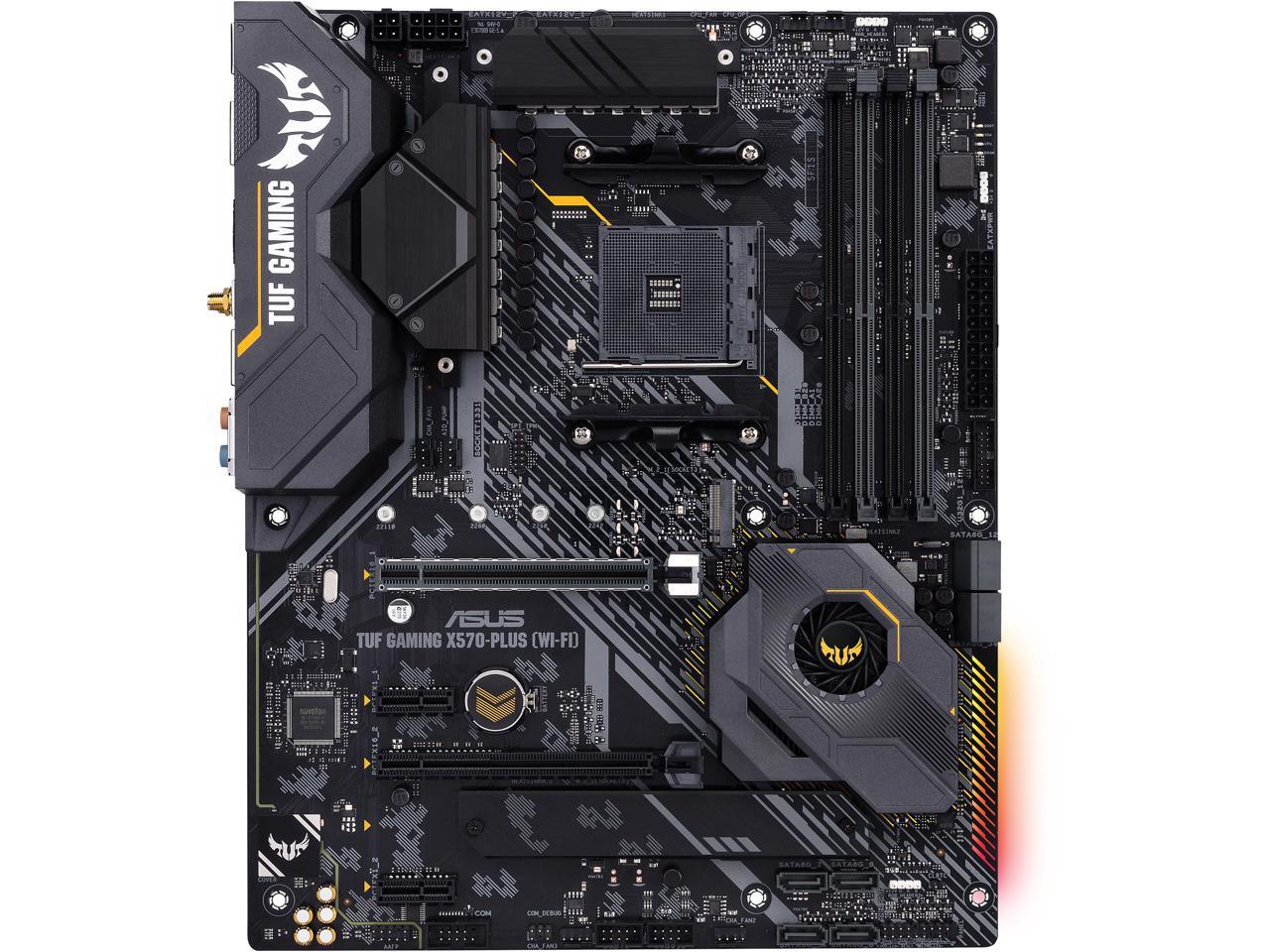

Asus Tuf Gaming X570-Plus (Wi-Fi) Socket Am4/ Amd X570/ Ddr4/ Sata3&Usb3.2/ M.2/ A&V&Gbe/ Wifi&Bluetooth/ Atx Motherboard

Description :

• BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
• AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
• Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
• Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
• Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A / Type-C
• Gaming Networking: Exclusive Realtek L8200A Gigabit Ethernet, Intel 2x2 802.11 ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
• Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

Asus AM4 TUF Gaming X570-Plus (Wi-Fi) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard With PCIe 4.0, Dual M.2, 12+2 With Dr. MOS power stage, USB 3.2 Gen 2 And Aura Sync RGB lighting

• AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
• Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
• Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
• Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
• Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
• Realtek S1200A Codec: Features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
• TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case



DURABLE. STABLE. RELIABLE.

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

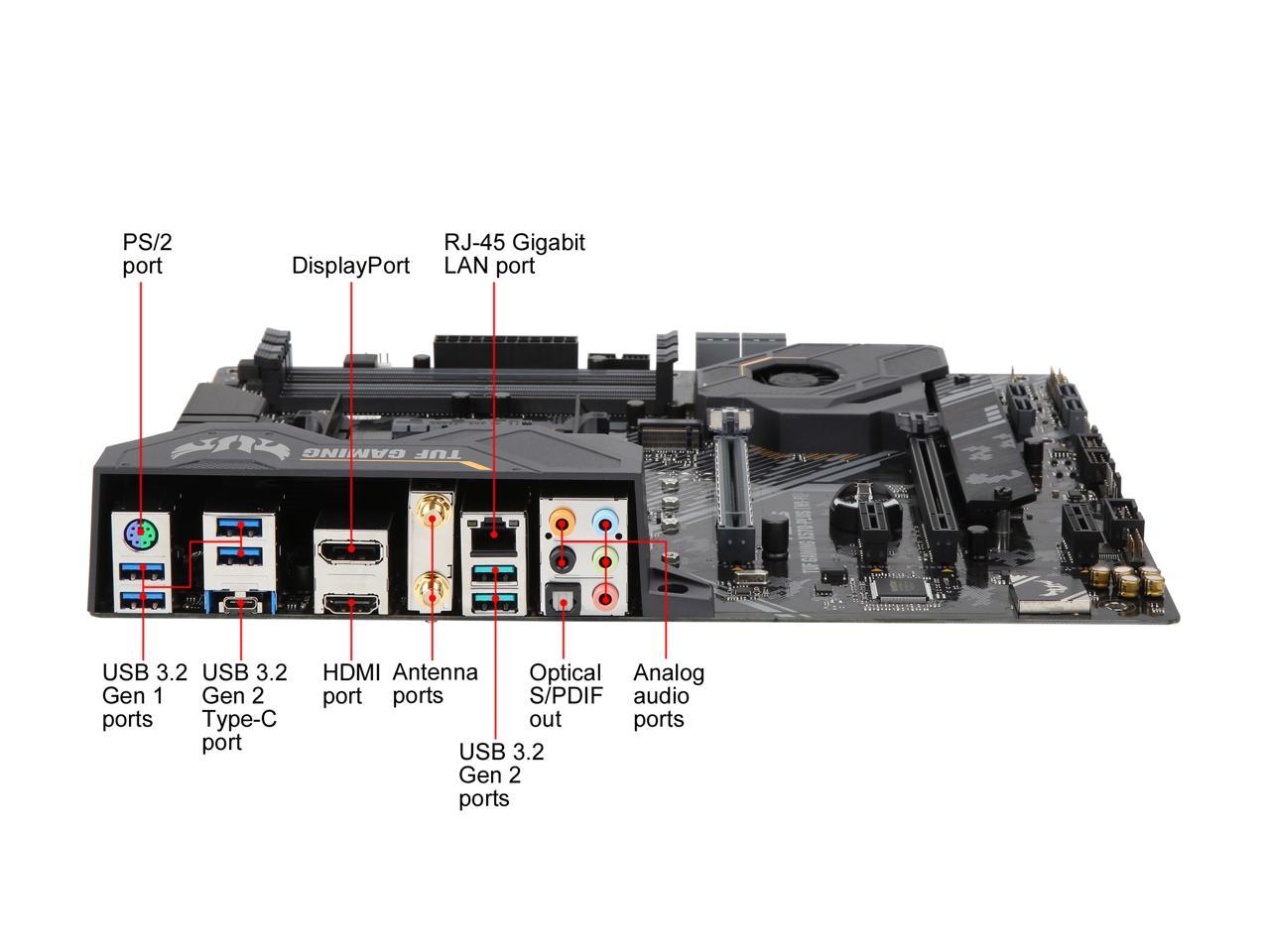

1.  TUF Gaming Armor

2.  USB 3.2 Gen 2 Type-C™

3.  USB 3.2 Gen 1

4.  Display Port

5.  HDMI Port

6.  Intel® Wi-Fi & BT 5.0

7.  USB 3.2 Gen 2

8.  Realtek® L8200A LAN
    Turbo LAN Utility

9.  Audio

10.  2 x PCIe 4.0 X16 Slots
    ・ 2-Way CrossFireX™
    ・ ASUS SafeSlot

11.  Realtek® S1200A
     Exclusive DTS Custom for
     GAMING Headsets
    ・TUF Gaming Audio Cover
    ・Audio Shielding
    ・Dedicated audio PCB layers
    ・Premium Japanese audio capacitors

12.  ProCool Connector

13.  Dr. MOS

14.  DDR4

15.  Addressable Gen 2 RGB header

16.  AMD AM4 Socket

17.  2 x Front USB 3.2 Gen 2 ports

18.  2 x M.2 x4 PCIe Gen 4 & SATA mode

19.  8 x SATA 3.0 ports

20.  AMD X570 Chipset

21.  Aura Sync

22.  2 x RGB headers

23.  4 x Front USB 2.0 ports

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.

POWER DESIGN

DRIVER & MOSFET

DR. MOS

The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-LAYER PCB

6-LAYER PCB DESIGN

The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

POWER CONNECTOR

PROCOOL SOCKETS

ENHANCED EATX 4-PIN & 8-PIN SOCKETS

• Solid and more durable
• Prevent hotspots and connector failure

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

TUF COMPONENTS

TUF CHOKES

Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

TUF CAPACITORS

+20% temperature tolerance and 5X-longer lifespan.

CONTROLLER

DIGI+ VRM

The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

COOLER BY DESIGN

1. VRM HEATSINK

Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.

   THERMAL PAD

High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

2. ACTIVE CHIPSET HEATSINK

A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

3. M.2 HEATSINK

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

ACTIVE CHIPSET HEATSINK SOLUTION

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Plus (Wi-Fi) features an actively cooled heatsink to prevent throttling during sustained transfers.

CUSTOM DELTA SUPERFLO FAN

The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.

AIR DUCT

A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

FINNED HEATSINK

The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.

* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.

COMPREHENSIVE FAN CONTROLS

TUF Gaming X570-Plus (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.

All-in-one water-cooling set

Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.

DUAL PCIe 4.0 M.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

*The actual transmission speed will be lower than the theoretical maximum speed.

ASUS OPTIMEM

PROPRIETARY MEMORY DESIGN

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

ASUS OptiMem advantage:

ASUS OptiMem benefits:

• Improved memory stability and compatibility
• Allows lower memory latencies at equivalent voltages
• Improved memory frequency margin

Tested by using Synopsys HSPICE simulation software

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

TUF GAMING ALLIANCE

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

TUF PROTECTION

SAFESLOT

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD GUARDS

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.

KEYBOARDS AND MOUSE CONNECTORS

Additional on-circuit ESD transient-voltage-suppression.

VGA PROTECTION

Additional on-circuit ESD TVS diodes to protect VGA output functionality.

USB CONNECTORS

TVS diode for surface-mount and dual in-line package.

TUF LANGUARD

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

DRAM PROTECTION

DRAM OVERVOLTAGE PROTECTION

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

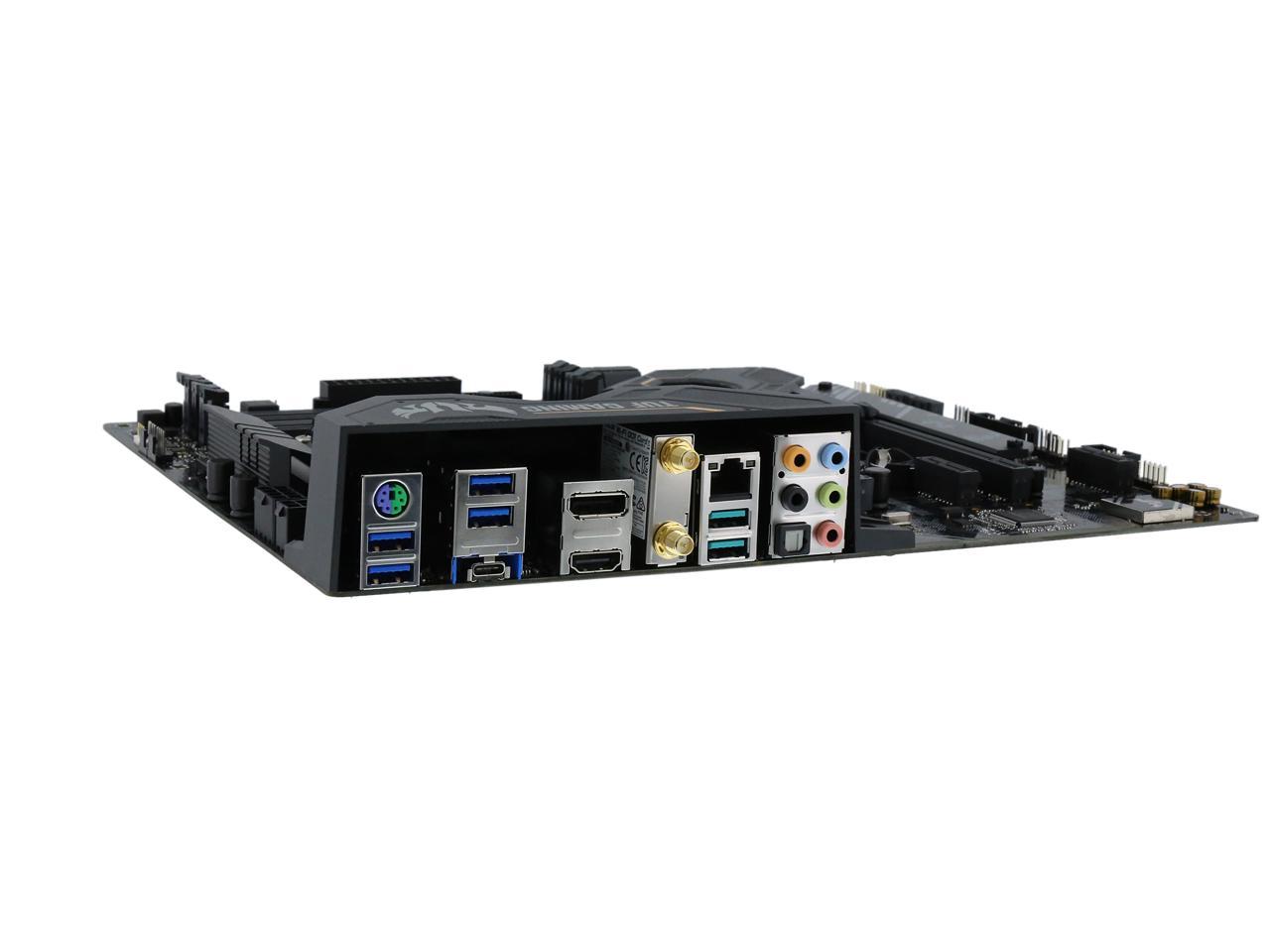

BACK I/O

STAINLESS STEEL BACK I/O

TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

ARMOURY CRATE

Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

AURA SYNC

DRIVER & MANUAL DOWNLOAD

GAMING HIGHLIGHT

ACCOUNT MANAGEMENT

IMMERSIVE GAMING

TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

EXCLUSIVE GIGABIT ETHERNET

Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.

INTEL WIRELESS-AC 9260

INTEL WI-FI 5

TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

* Actual speed varies, and depends on networking conditions.

TURBO LAN

NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!

GAMING AUDIO

EXCLUSIVE CODEC

SIGNAL-TO-NOISE RATIO

SPEC COMPARISON

TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality.

0:31

DTS CUSTOM FOR GAMING HEADSETS

Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

AERIAL MODE

Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!

SOUNDSCAPE MODE

The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!

TACTICAL MODE

Shhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!

OUTSHINE THE COMPETITION

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

ADDRESSABLE GEN 2 RGB HEADER

TUF Gaming X570-Plus (Wi-Fi)'s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

THE POWER OF AMD

AMD X570 CHIPSET

The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.

AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS

The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
